Instrument Cluster

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

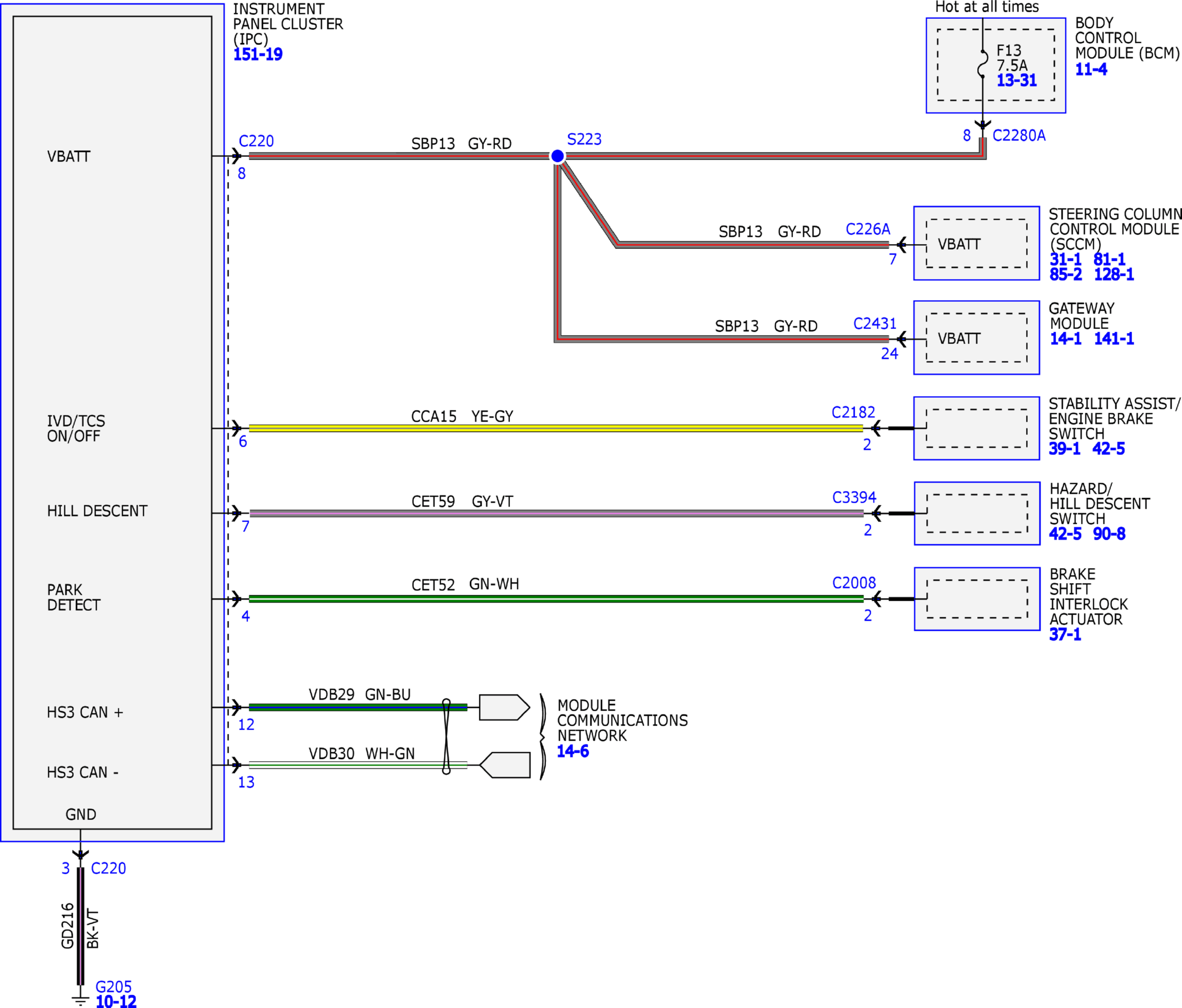

Fig 1: Instrument Cluster Wiring Diagram (1 of 8)

GFDW83374

Courtesy of FORD MOTOR COMPANY

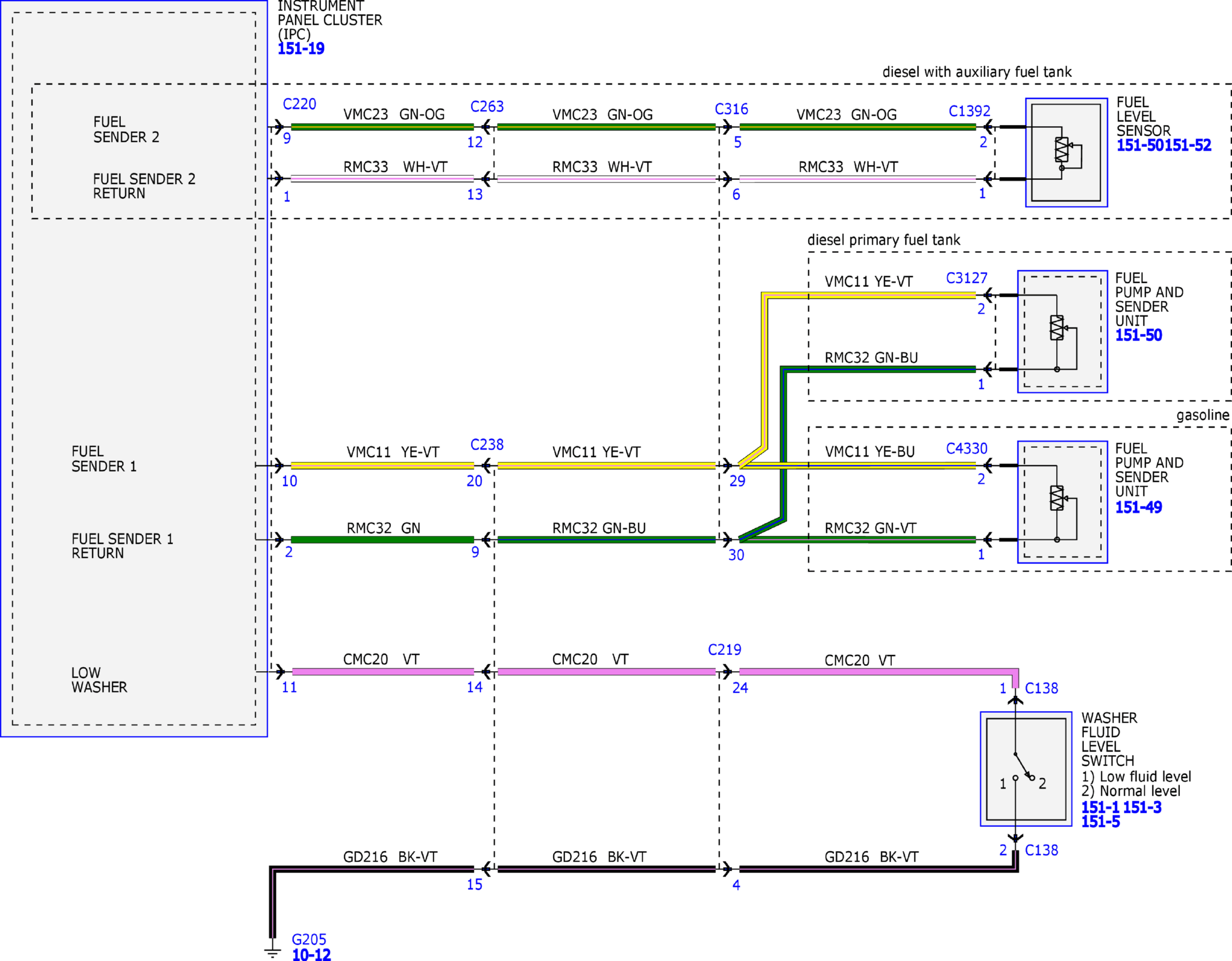

Fig 2: Instrument Cluster Wiring Diagram (2 of 8)

GFDW83375

Courtesy of FORD MOTOR COMPANY

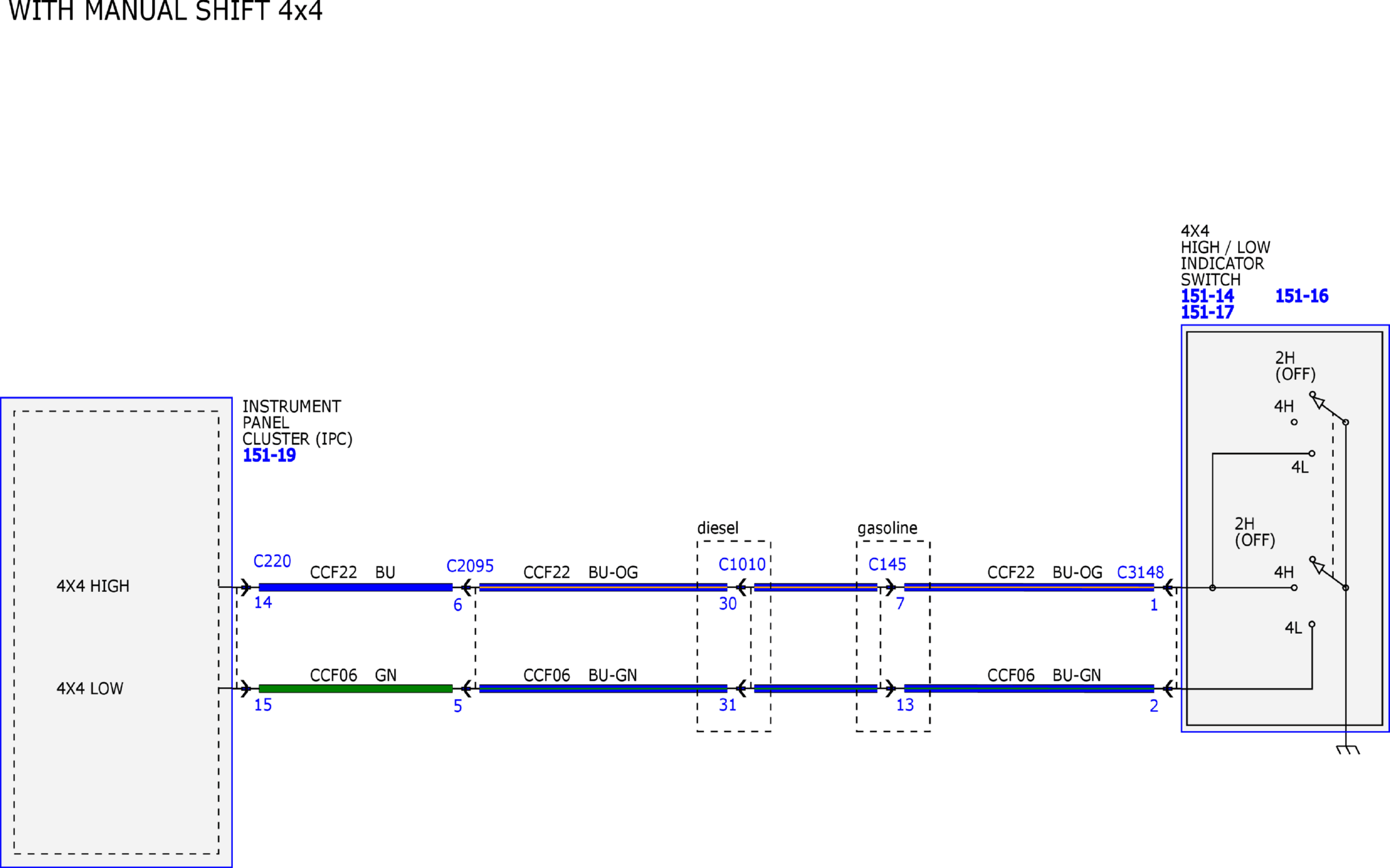

Fig 3: Instrument Cluster Wiring Diagram (3 of 8)

GFDW83376

Courtesy of FORD MOTOR COMPANY

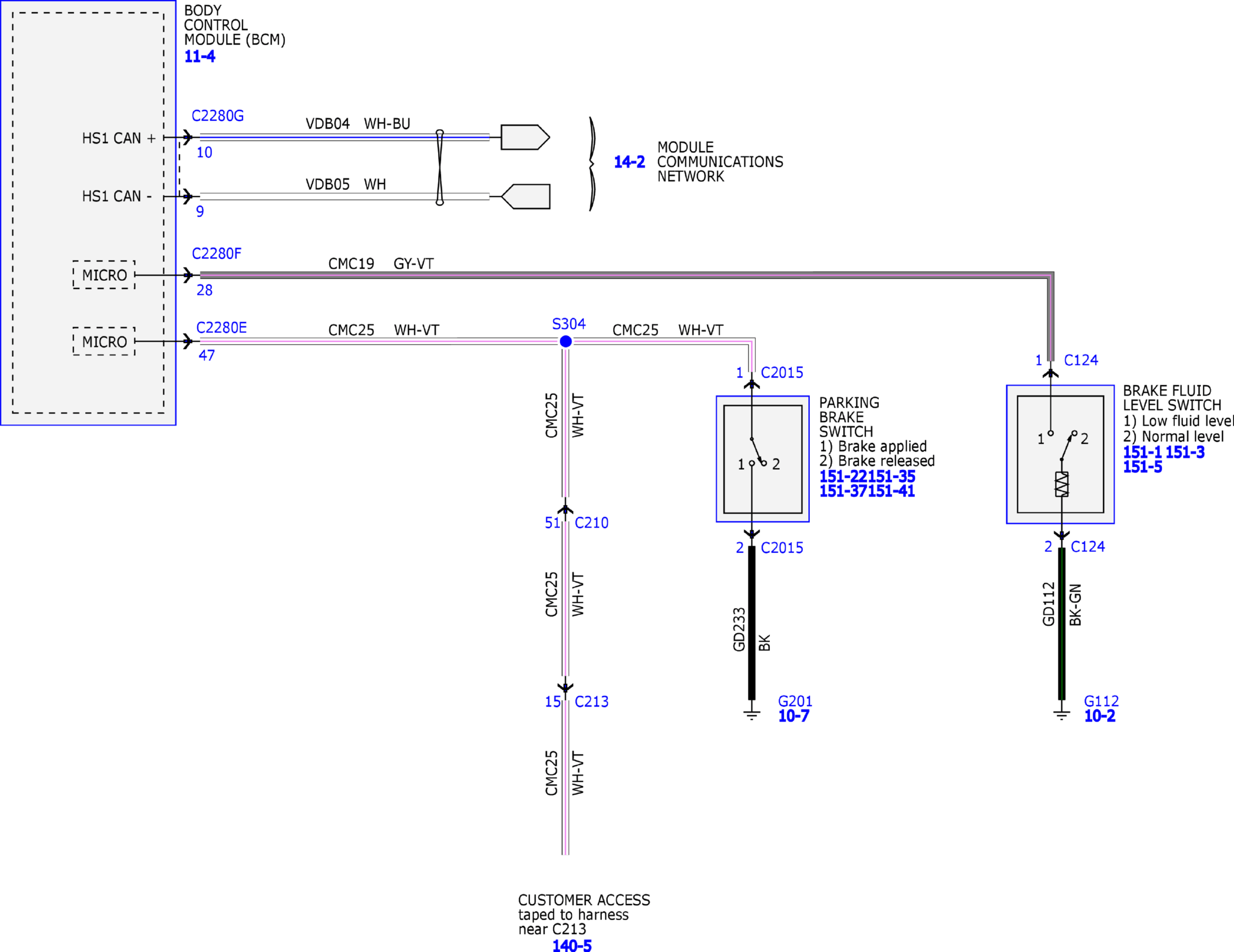

Fig 4: Instrument Cluster Wiring Diagram (4 of 8)

GFDW83377

Courtesy of FORD MOTOR COMPANY

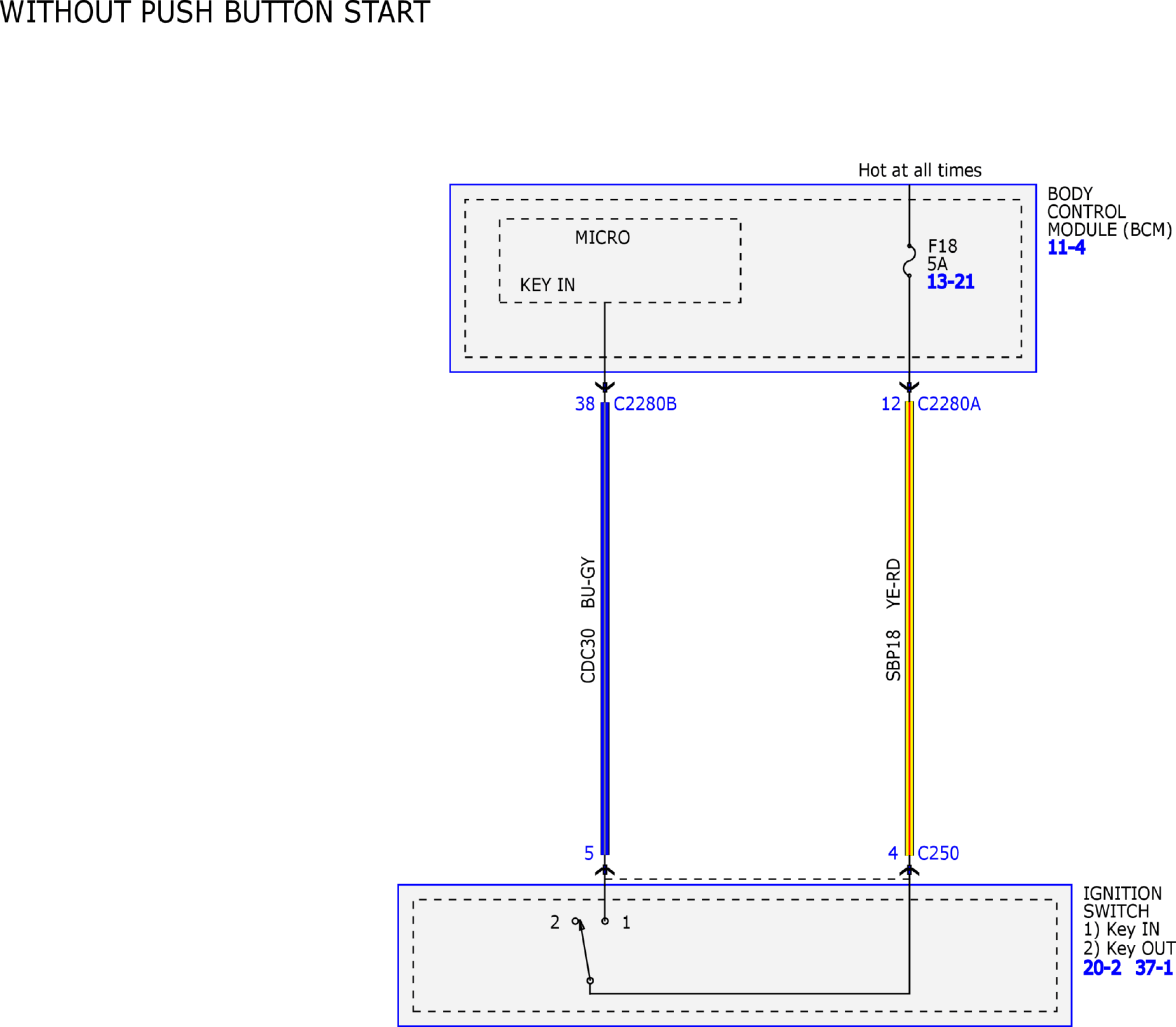

Fig 5: Instrument Cluster Wiring Diagram (5 of 8)

GFDW83378

Courtesy of FORD MOTOR COMPANY

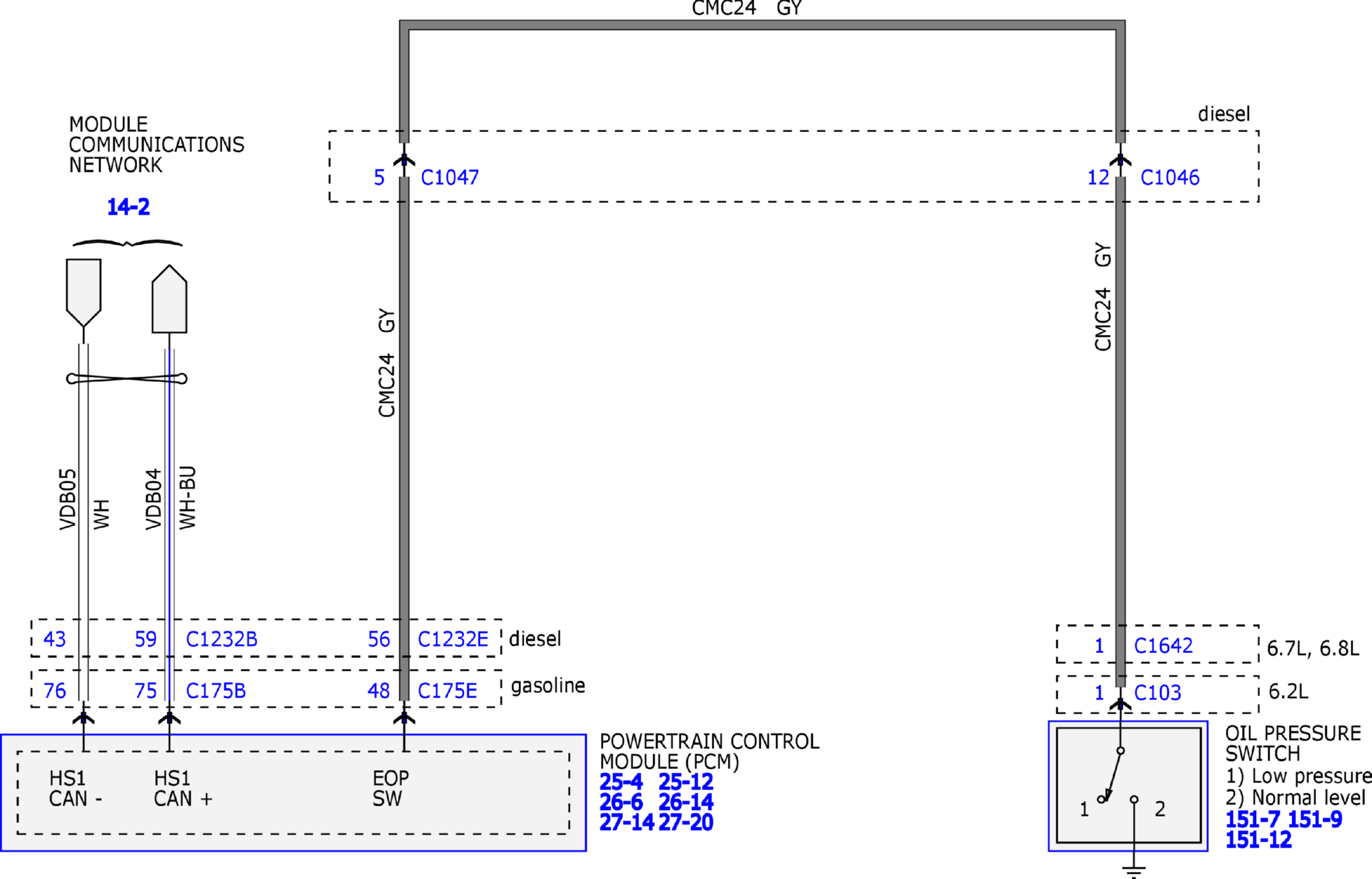

Fig 6: Instrument Cluster Wiring Diagram (6 of 8)

GFDW83379

Courtesy of FORD MOTOR COMPANY

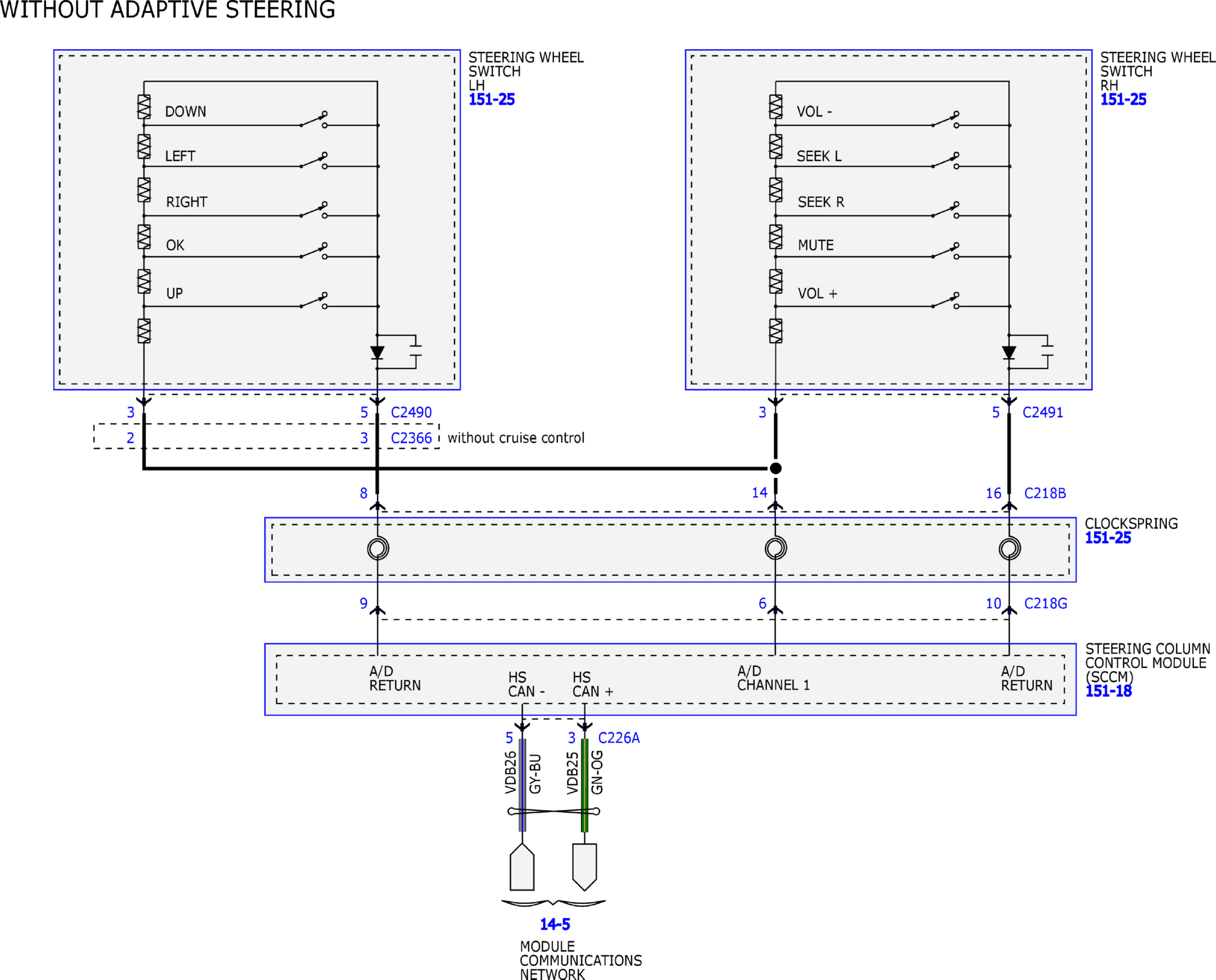

Fig 7: Instrument Cluster Wiring Diagram (7 of 8)

GFDW83380

Courtesy of FORD MOTOR COMPANY

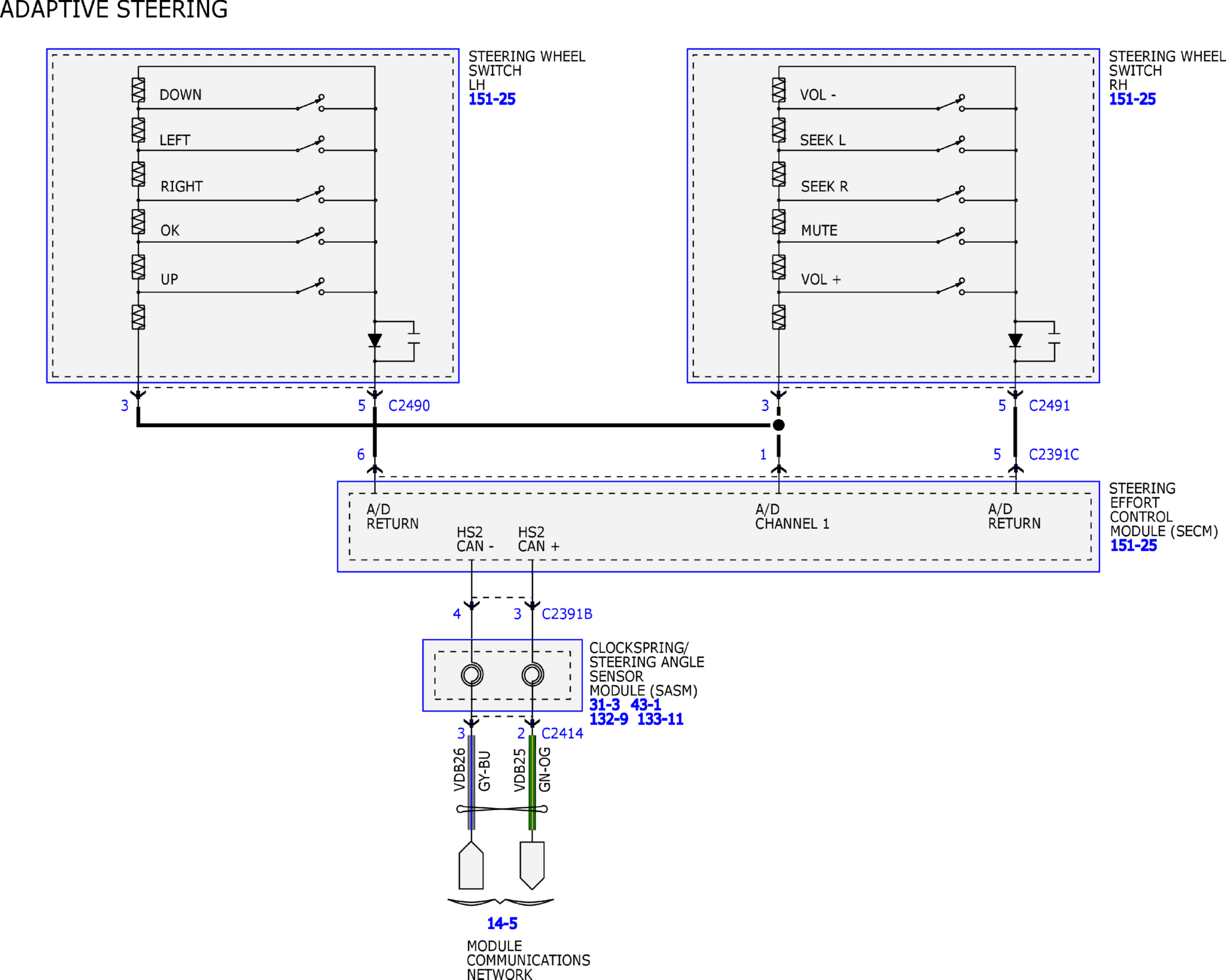

Fig 8: Instrument Cluster Wiring Diagram (8 of 8)

GFDW83381

Courtesy of FORD MOTOR COMPANY
