Electronic Engine Controls - 6.8L

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

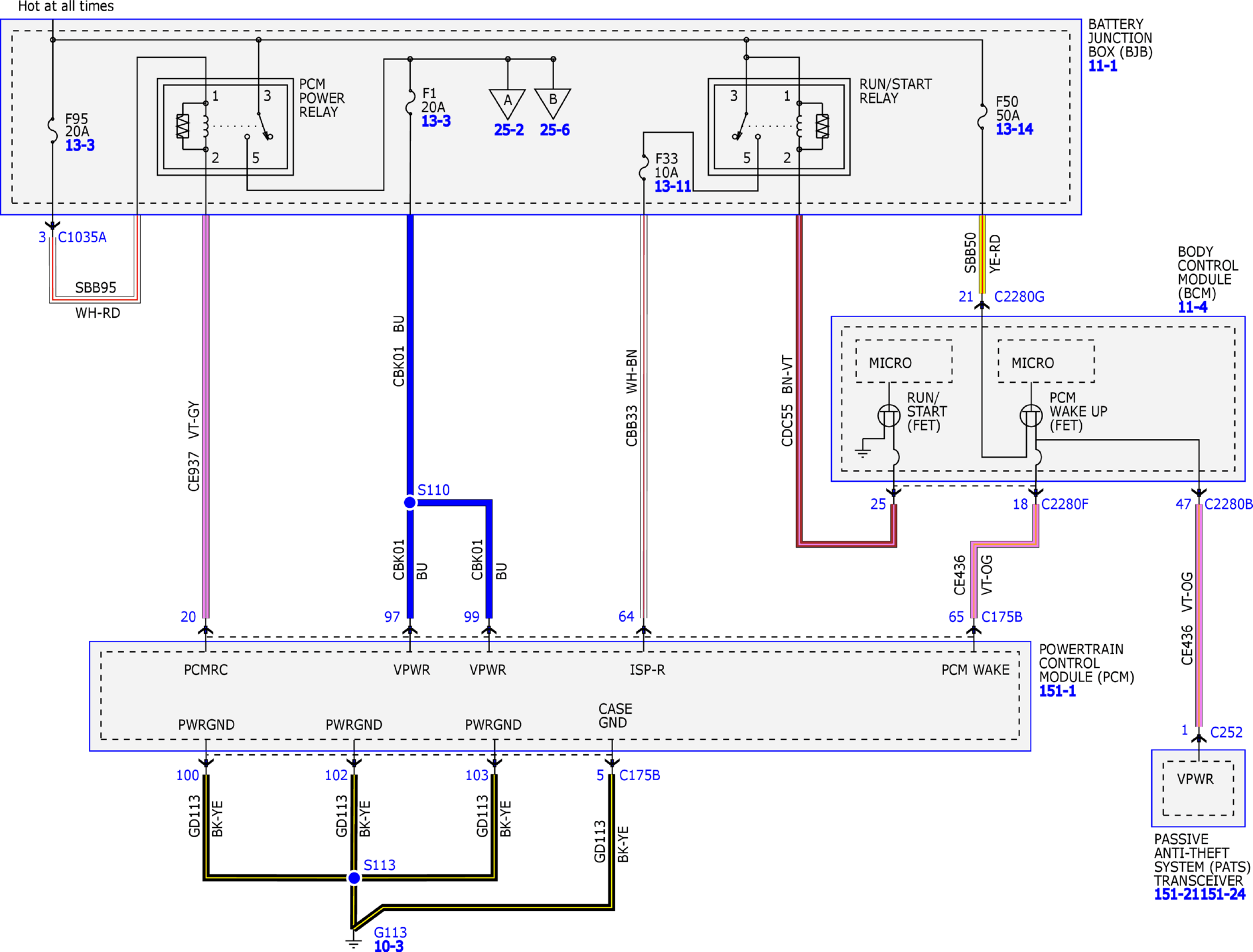

Fig 1: Electronic Engine Controls - 6.8L Wiring Diagram (1 of 14)

GFDW83338

Courtesy of FORD MOTOR COMPANY

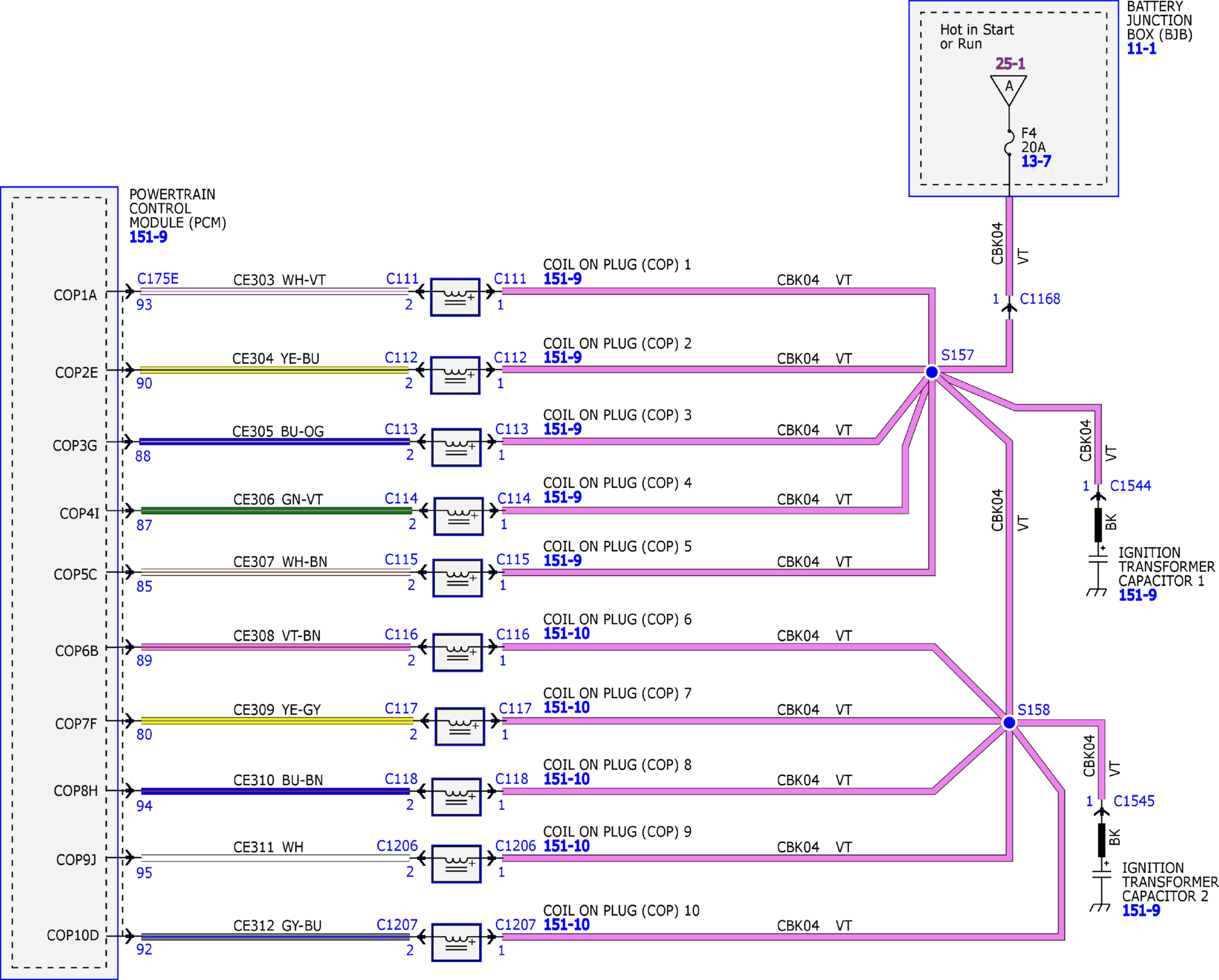

Fig 2: Electronic Engine Controls - 6.8L Wiring Diagram (2 of 14)

GFDW83339

Courtesy of FORD MOTOR COMPANY

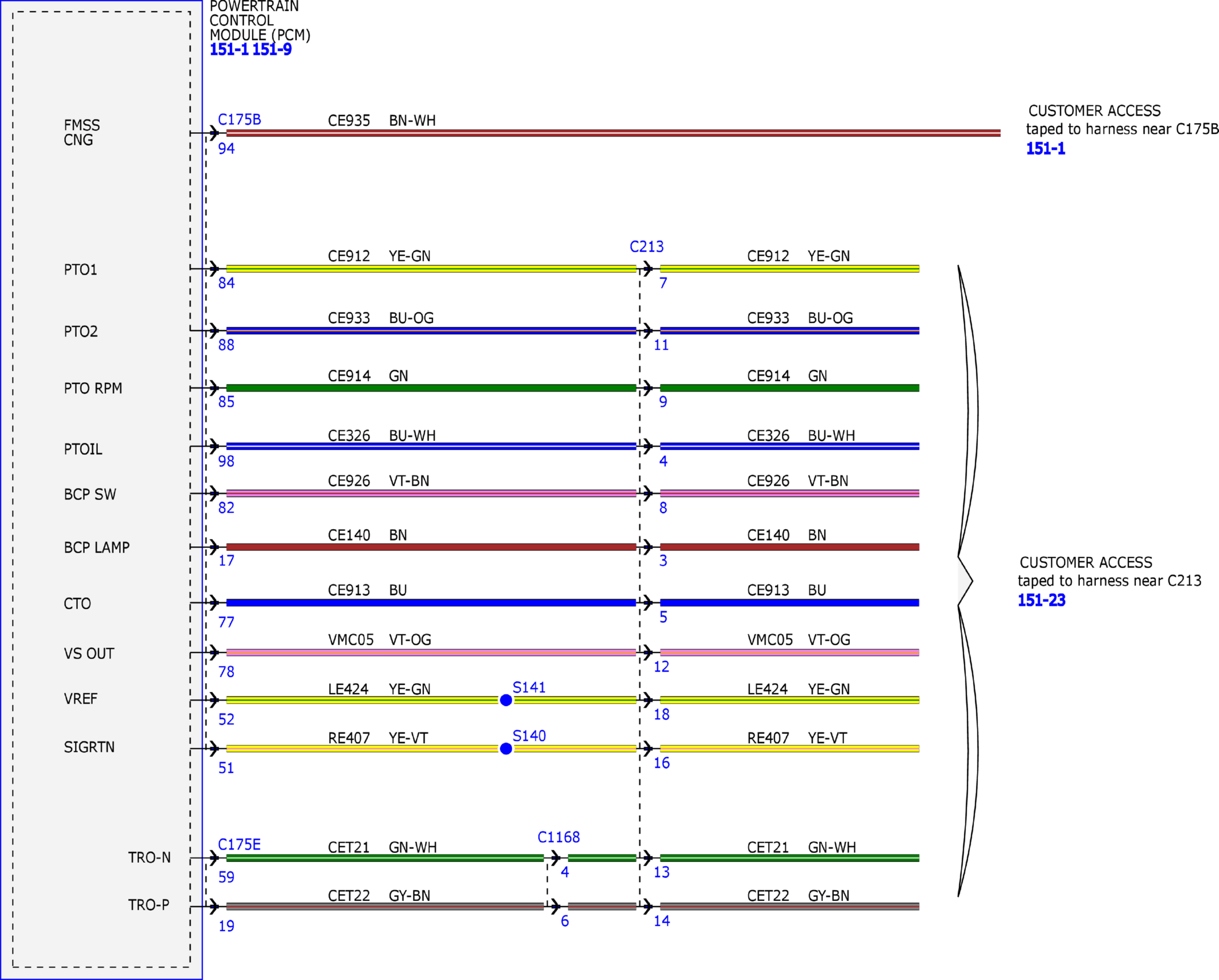

Fig 3: Electronic Engine Controls - 6.8L Wiring Diagram (3 of 14)

GFDW83340

Courtesy of FORD MOTOR COMPANY

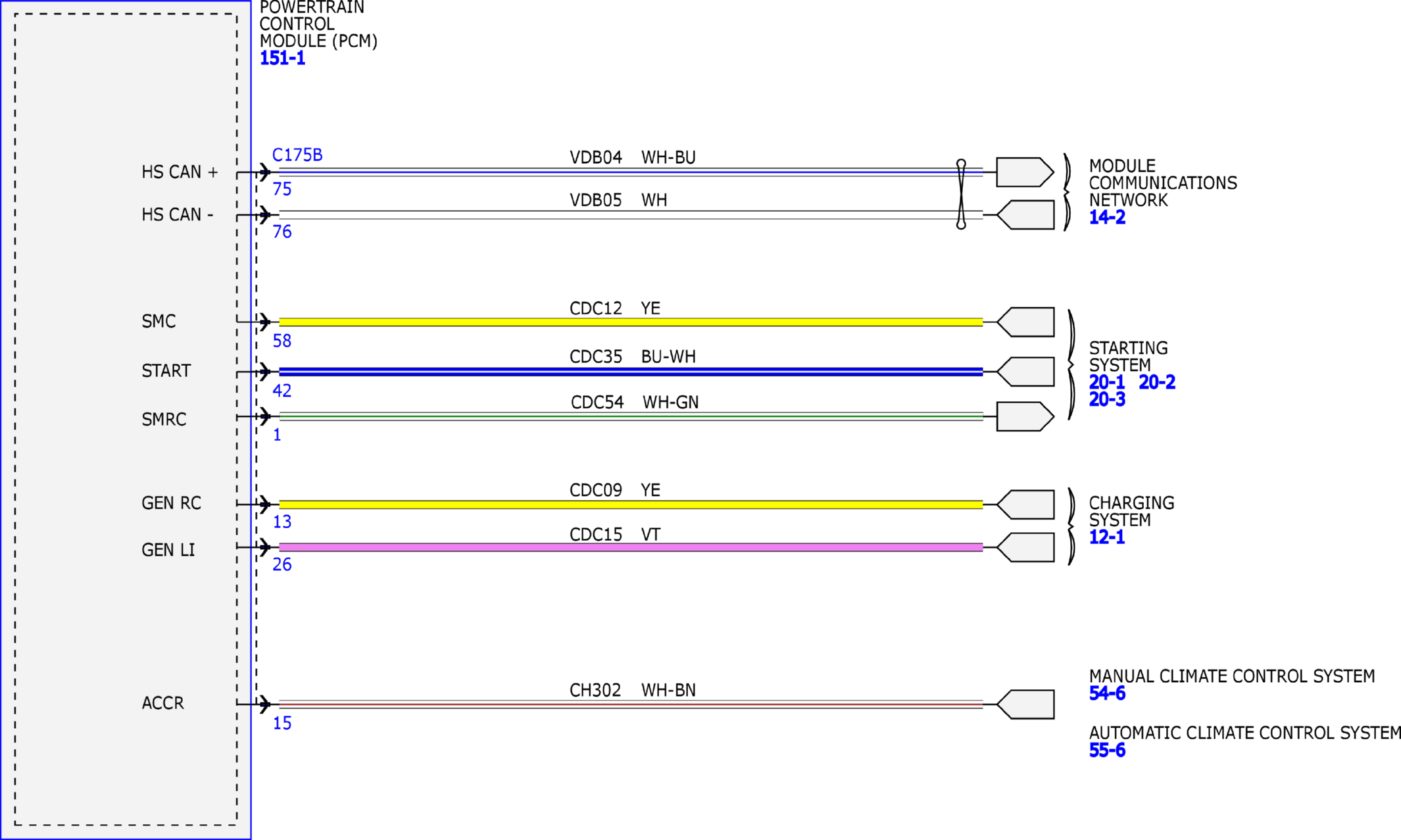

Fig 4: Electronic Engine Controls - 6.8L Wiring Diagram (4 of 14)

GFDW83341

Courtesy of FORD MOTOR COMPANY

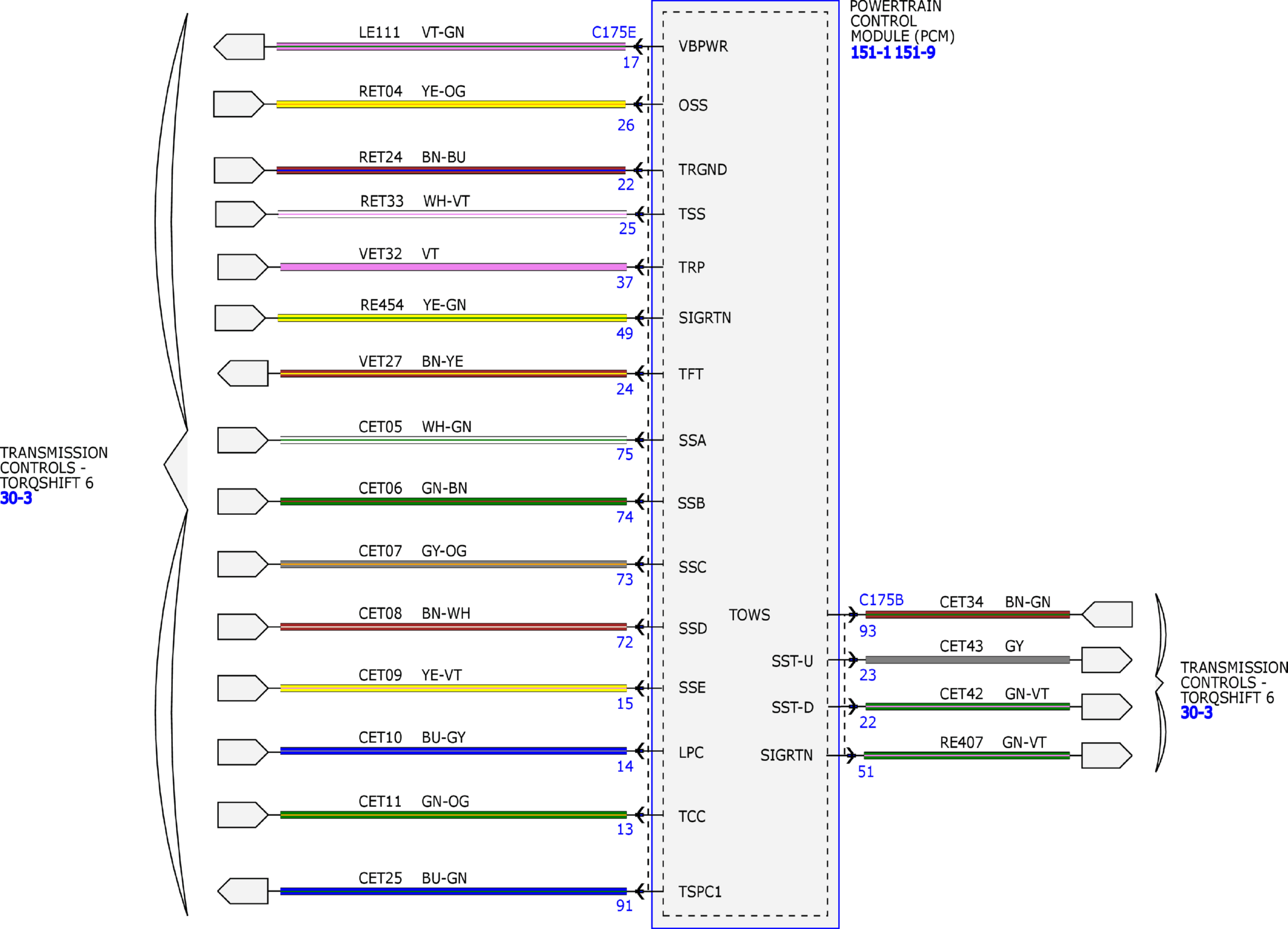

Fig 5: Electronic Engine Controls - 6.8L Wiring Diagram (5 of 14)

GFDW83342

Courtesy of FORD MOTOR COMPANY

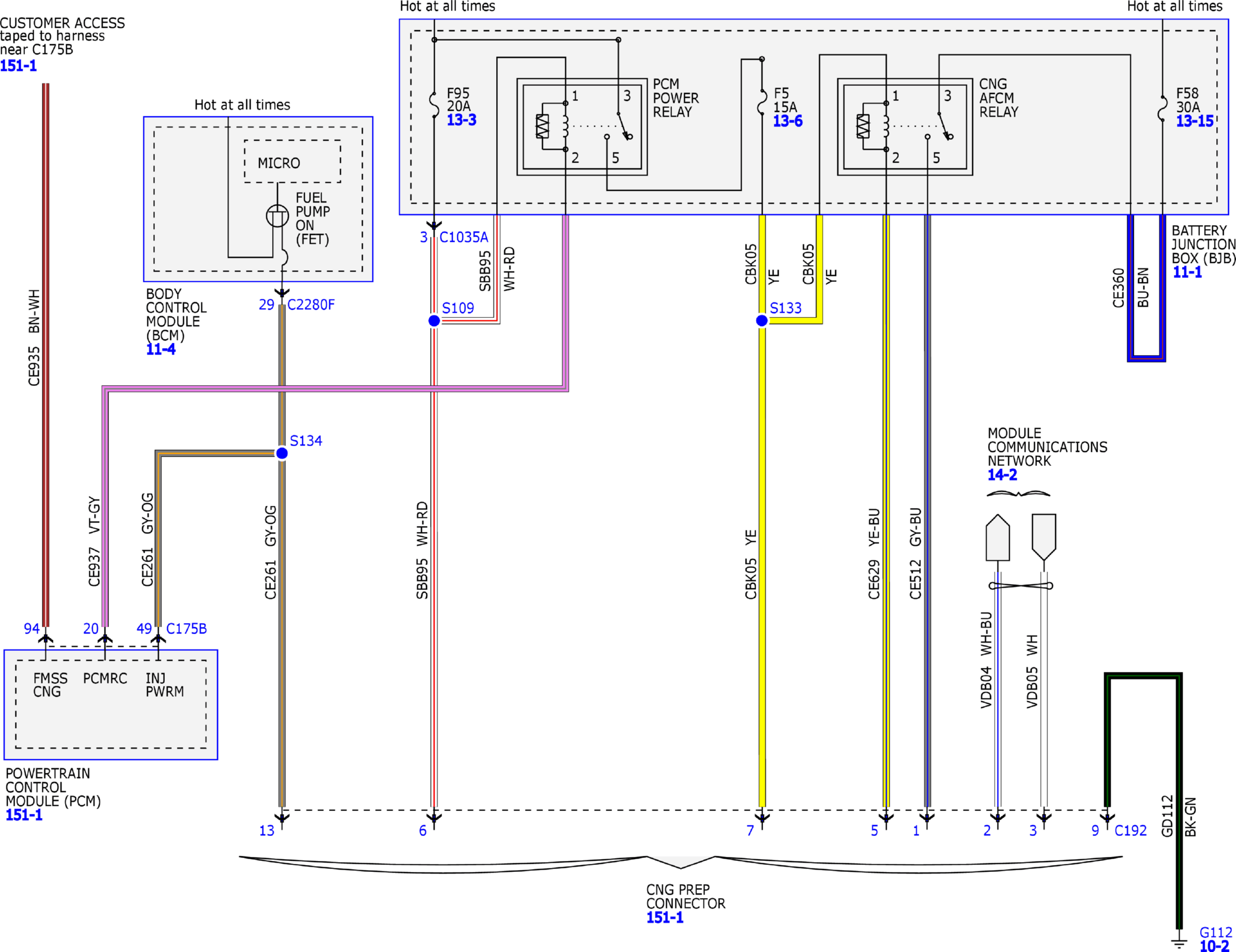

Fig 6: Electronic Engine Controls - 6.8L Wiring Diagram (6 of 14)

GFDW83343

Courtesy of FORD MOTOR COMPANY

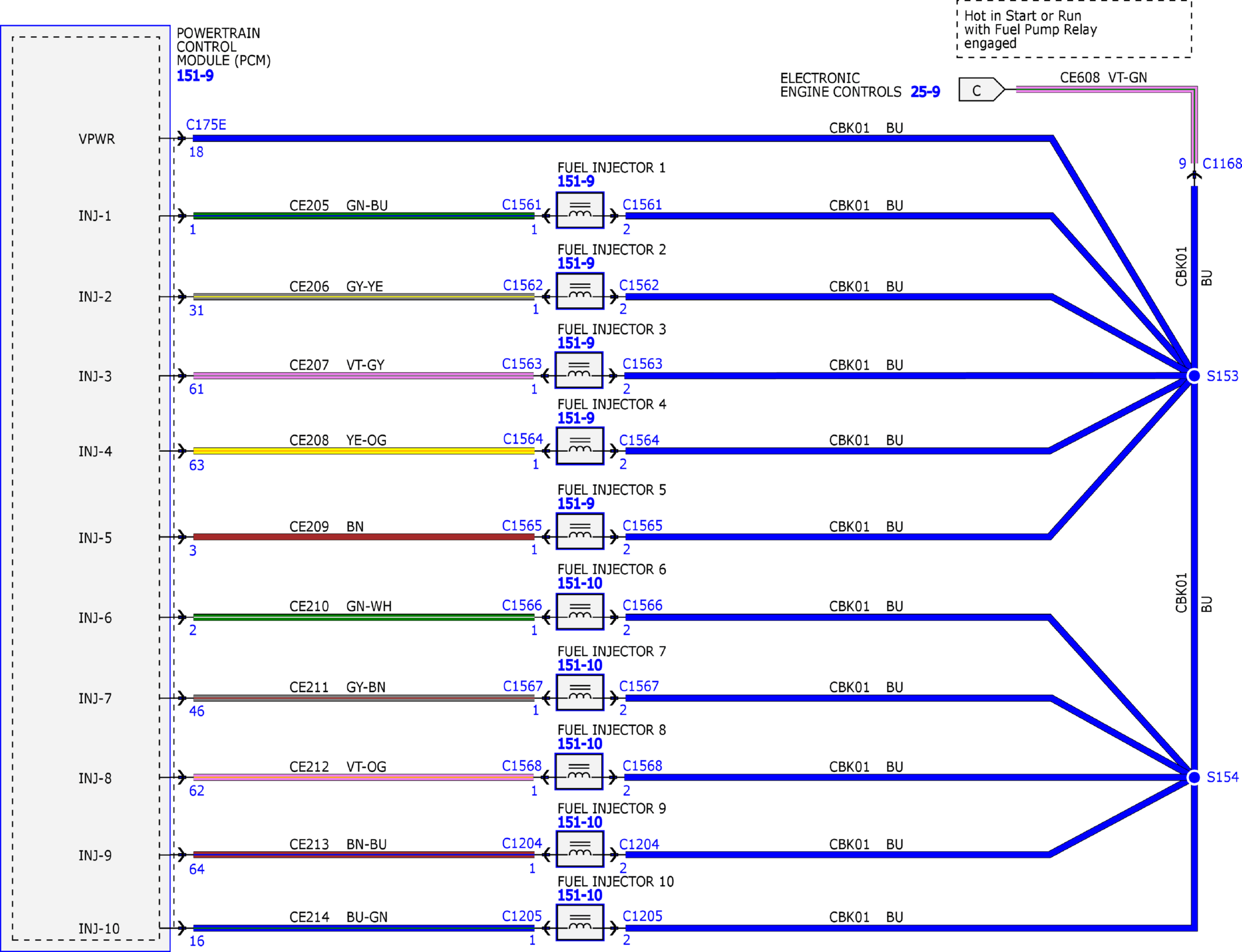

Fig 7: Electronic Engine Controls - 6.8L Wiring Diagram (7 of 14)

GFDW83344

Courtesy of FORD MOTOR COMPANY

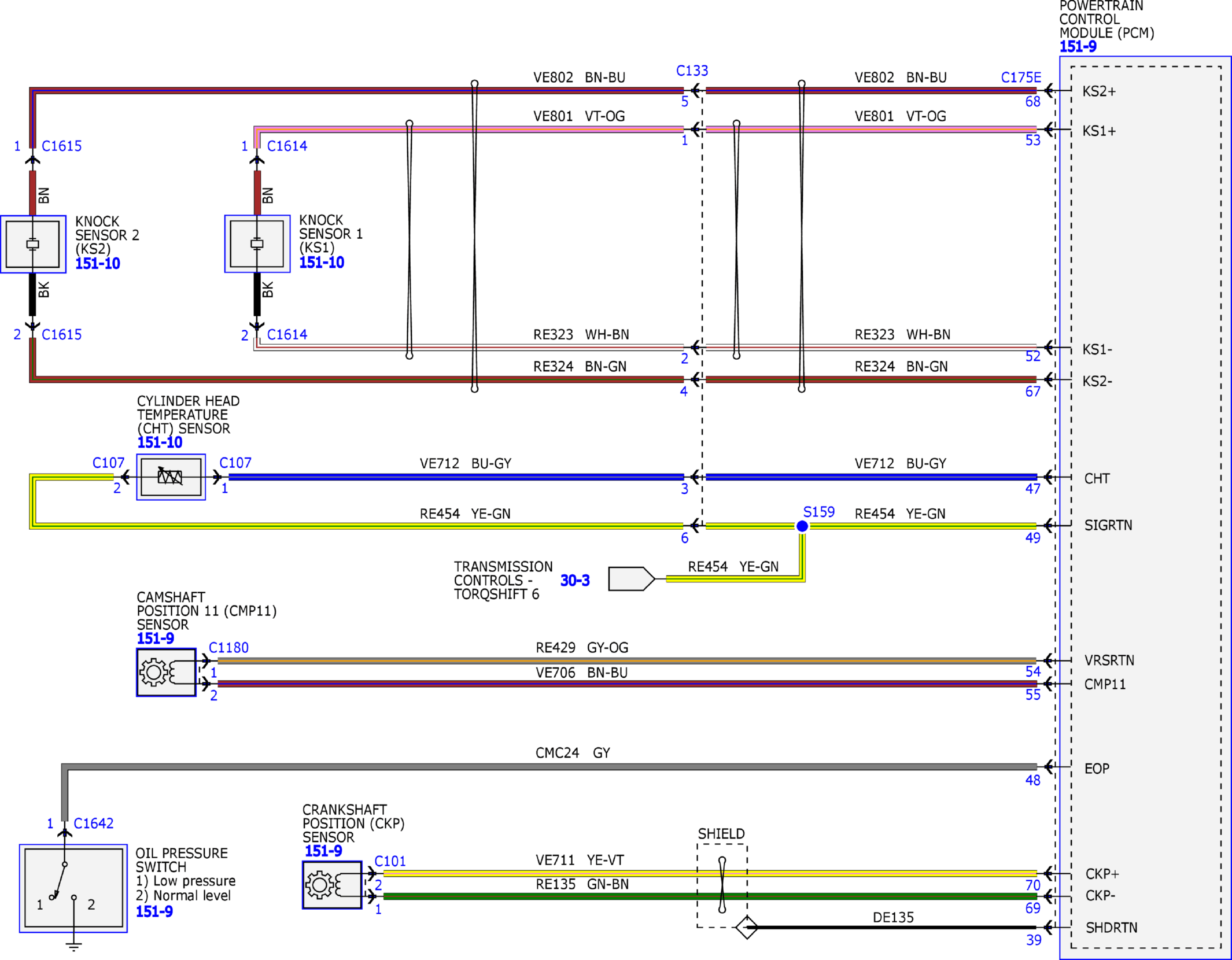

Fig 8: Electronic Engine Controls - 6.8L Wiring Diagram (8 of 14)

GFDW83345

Courtesy of FORD MOTOR COMPANY

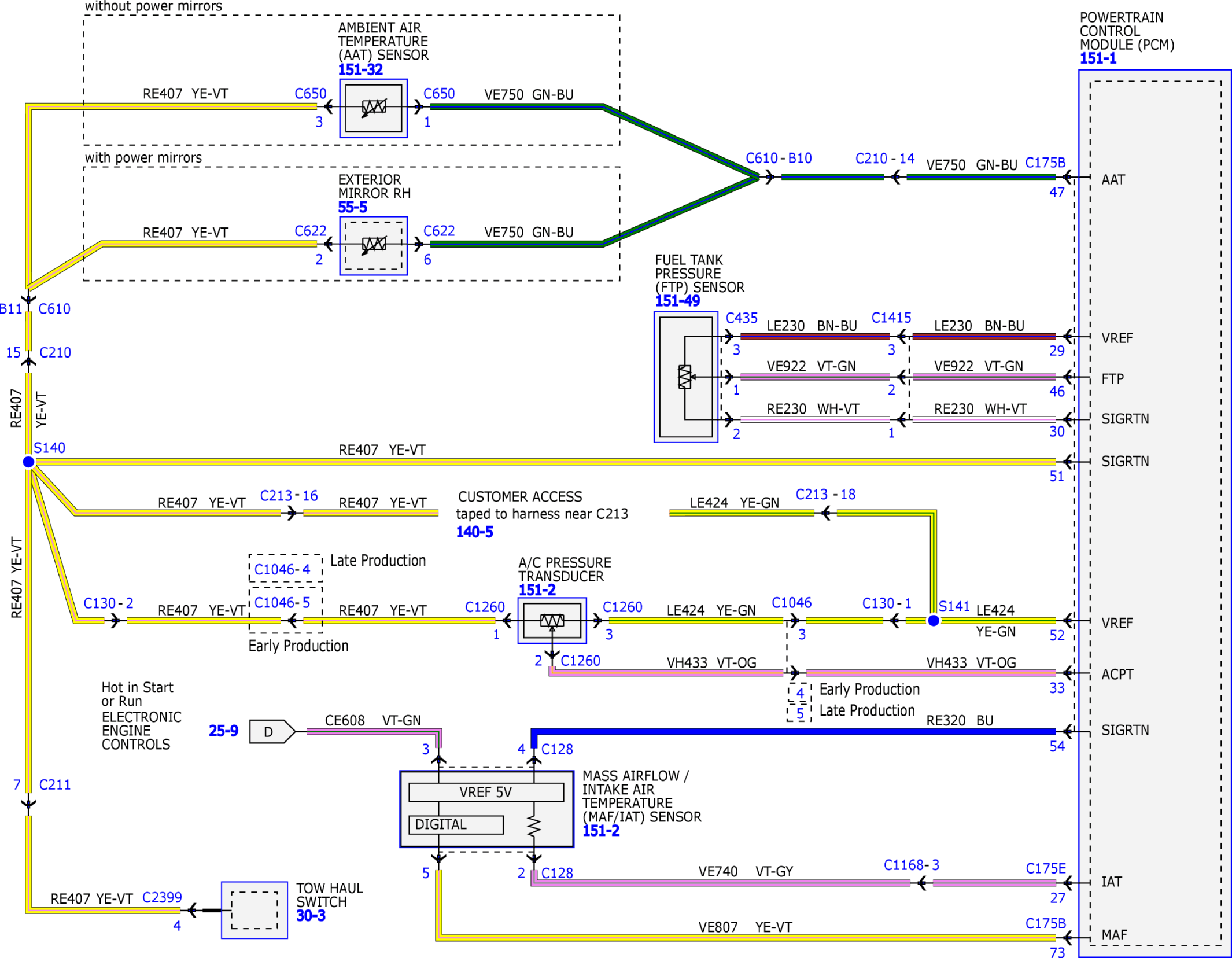

Fig 9: Electronic Engine Controls - 6.8L Wiring Diagram (9 of 14)

GFDW83346

Courtesy of FORD MOTOR COMPANY

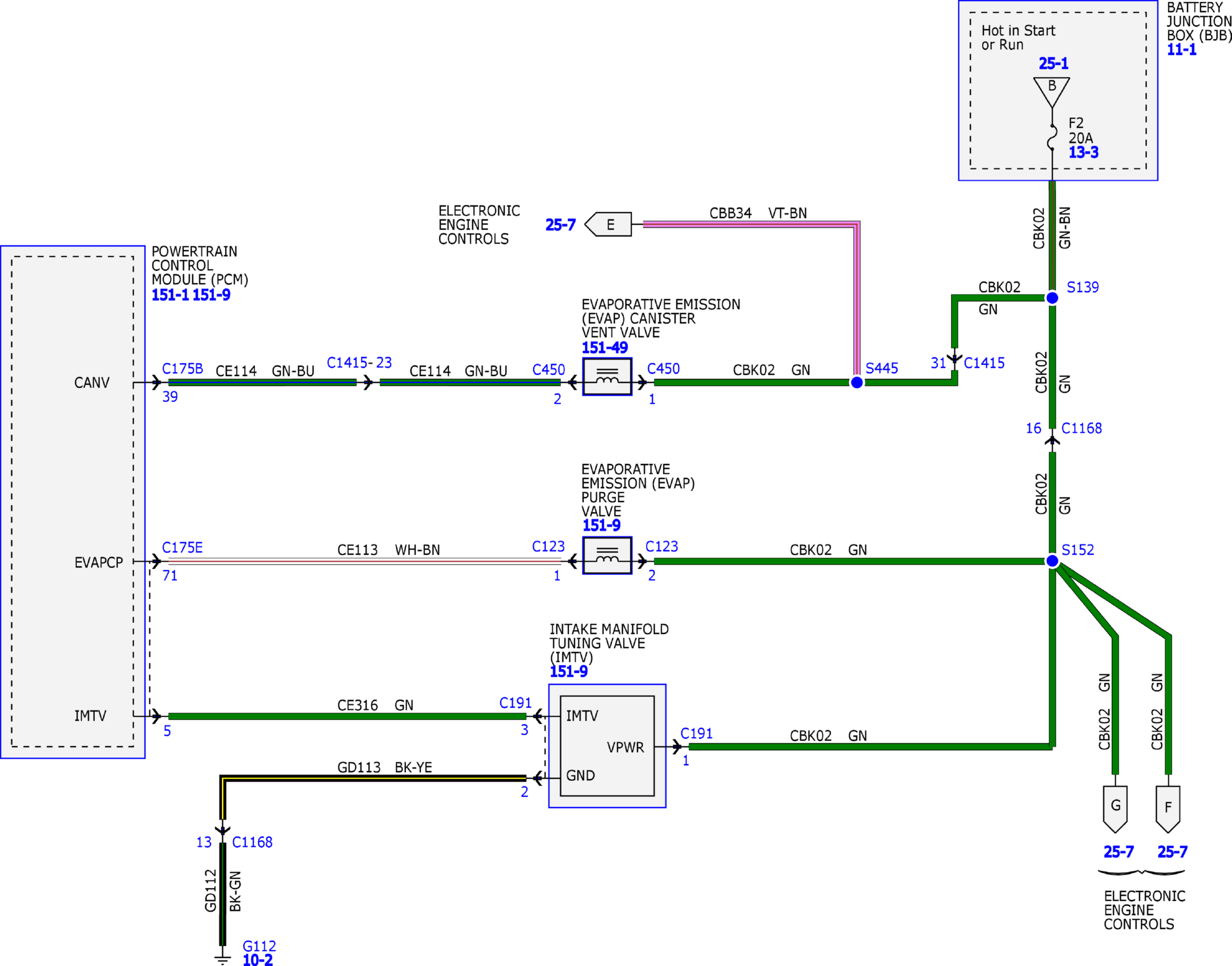

Fig 10: Electronic Engine Controls - 6.8L Wiring Diagram (10 of 14)

GFDW83347

Courtesy of FORD MOTOR COMPANY

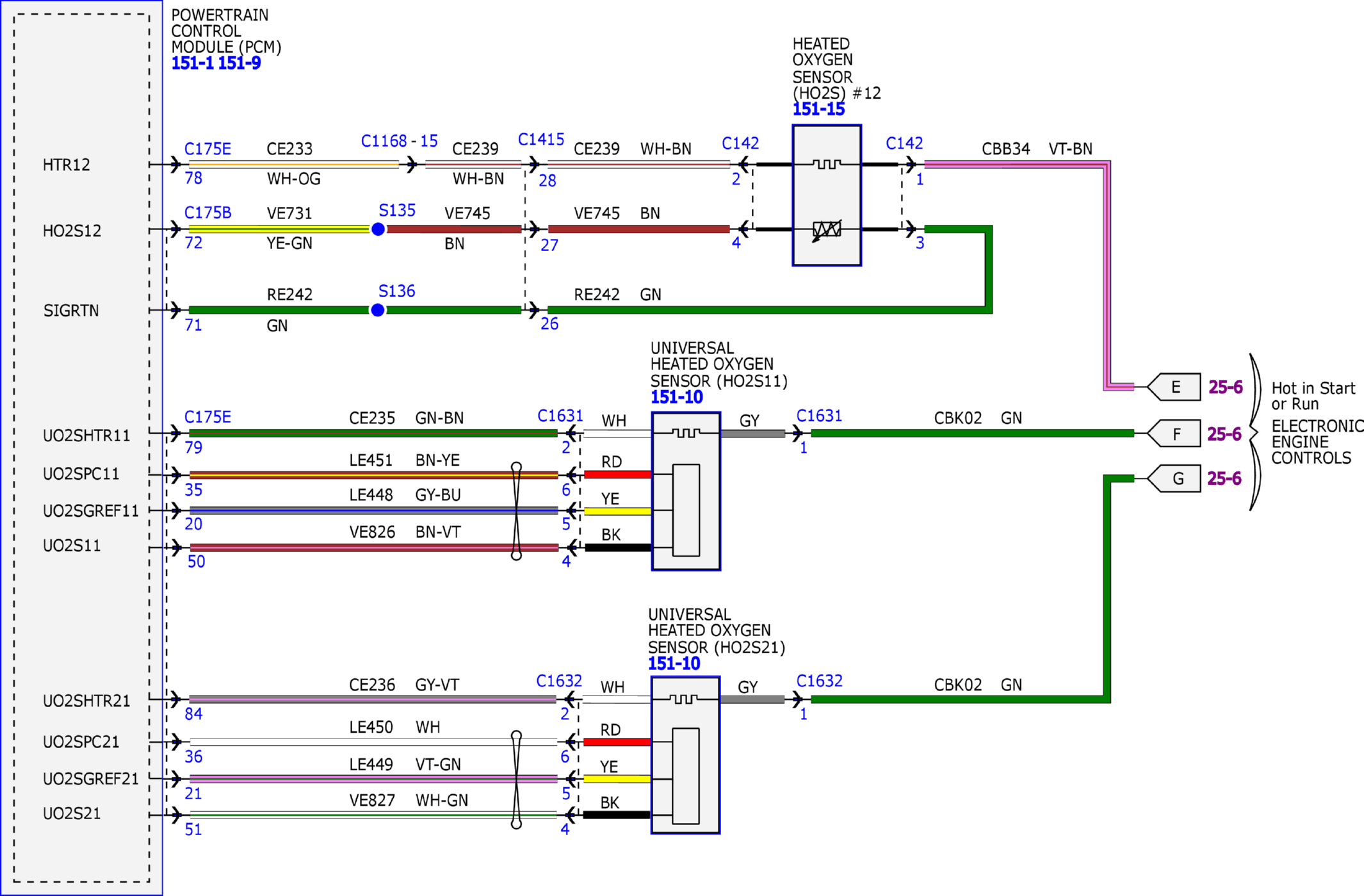

Fig 11: Electronic Engine Controls - 6.8L Wiring Diagram (11 of 14)

GFDW83348

Courtesy of FORD MOTOR COMPANY

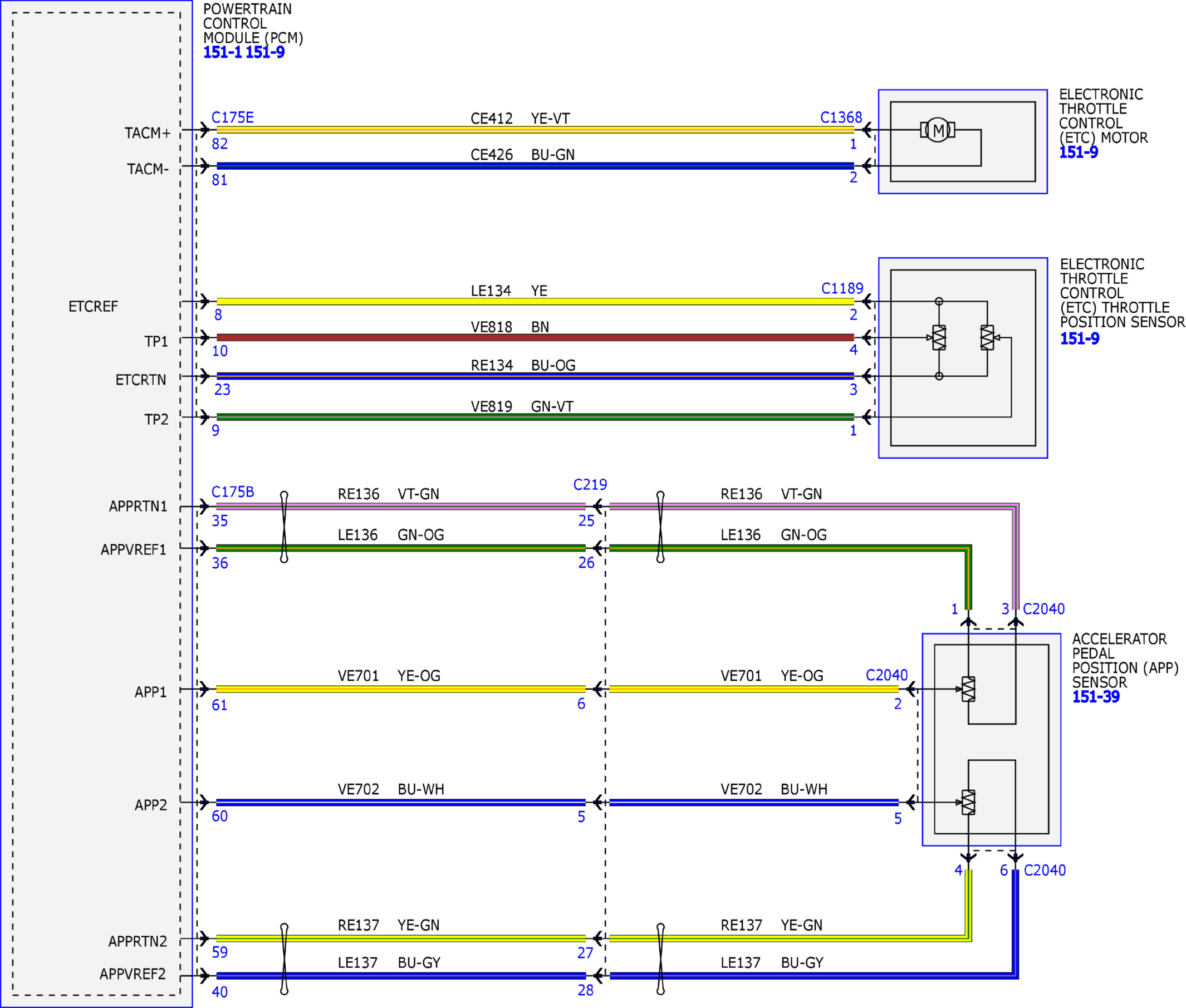

Fig 12: Electronic Engine Controls - 6.8L Wiring Diagram (12 of 14)

GFDW83349

Courtesy of FORD MOTOR COMPANY

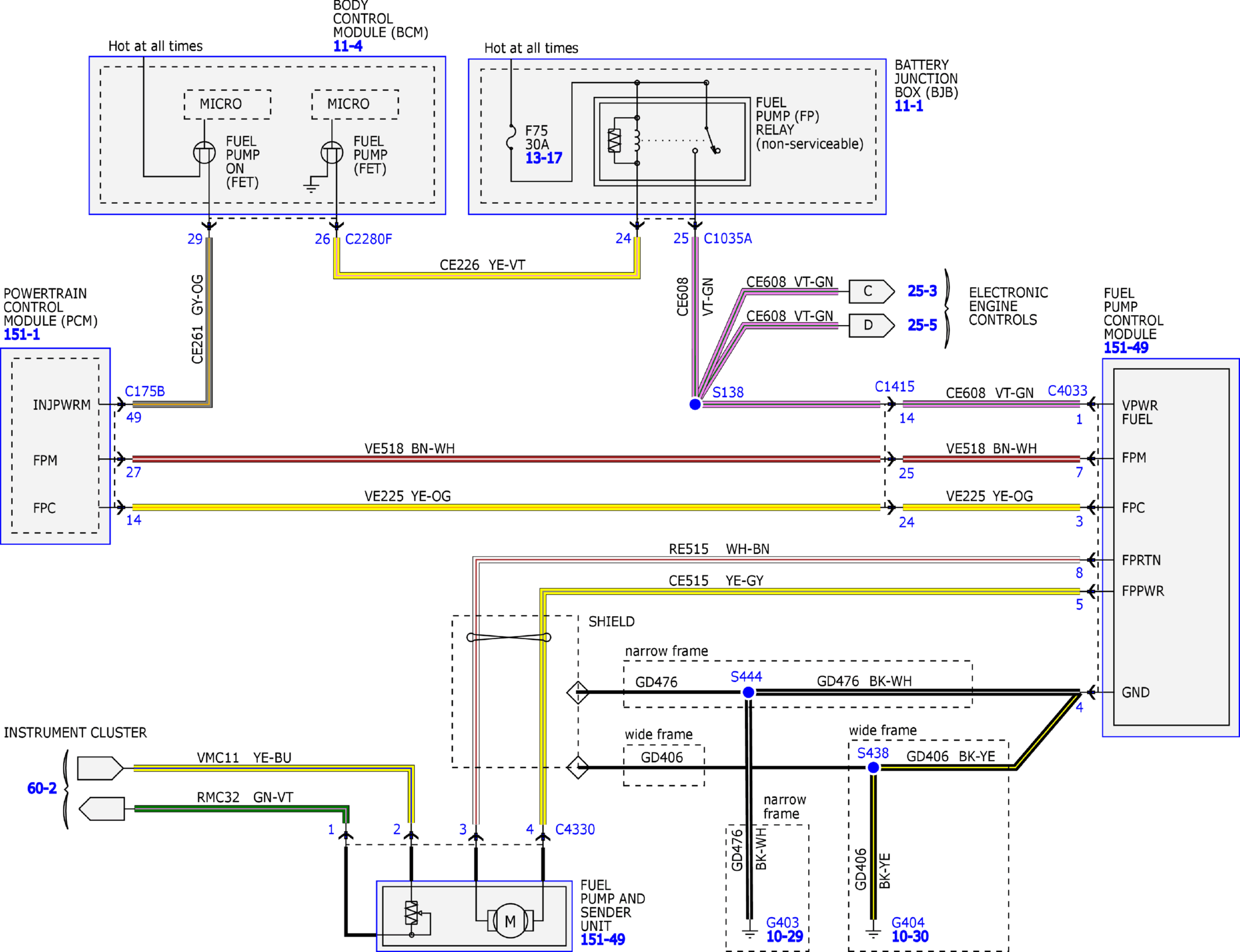

Fig 13: Electronic Engine Controls - 6.8L Wiring Diagram (13 of 14)

GFDW83350

Courtesy of FORD MOTOR COMPANY

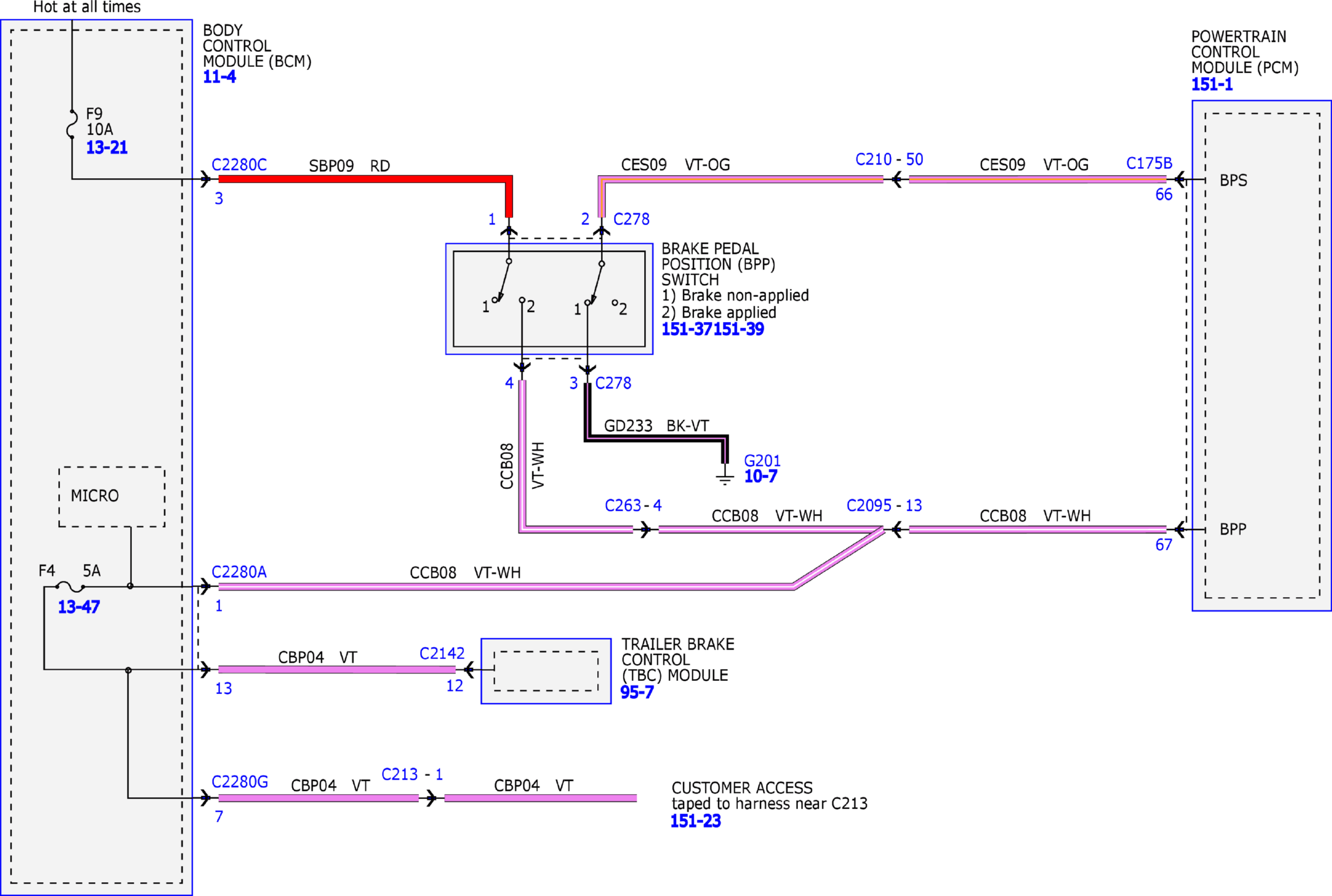

Fig 14: Electronic Engine Controls - 6.8L Wiring Diagram (14 of 14)

GFDW83351

Courtesy of FORD MOTOR COMPANY
