Electronic Engine Controls - 6.7L Diesel

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

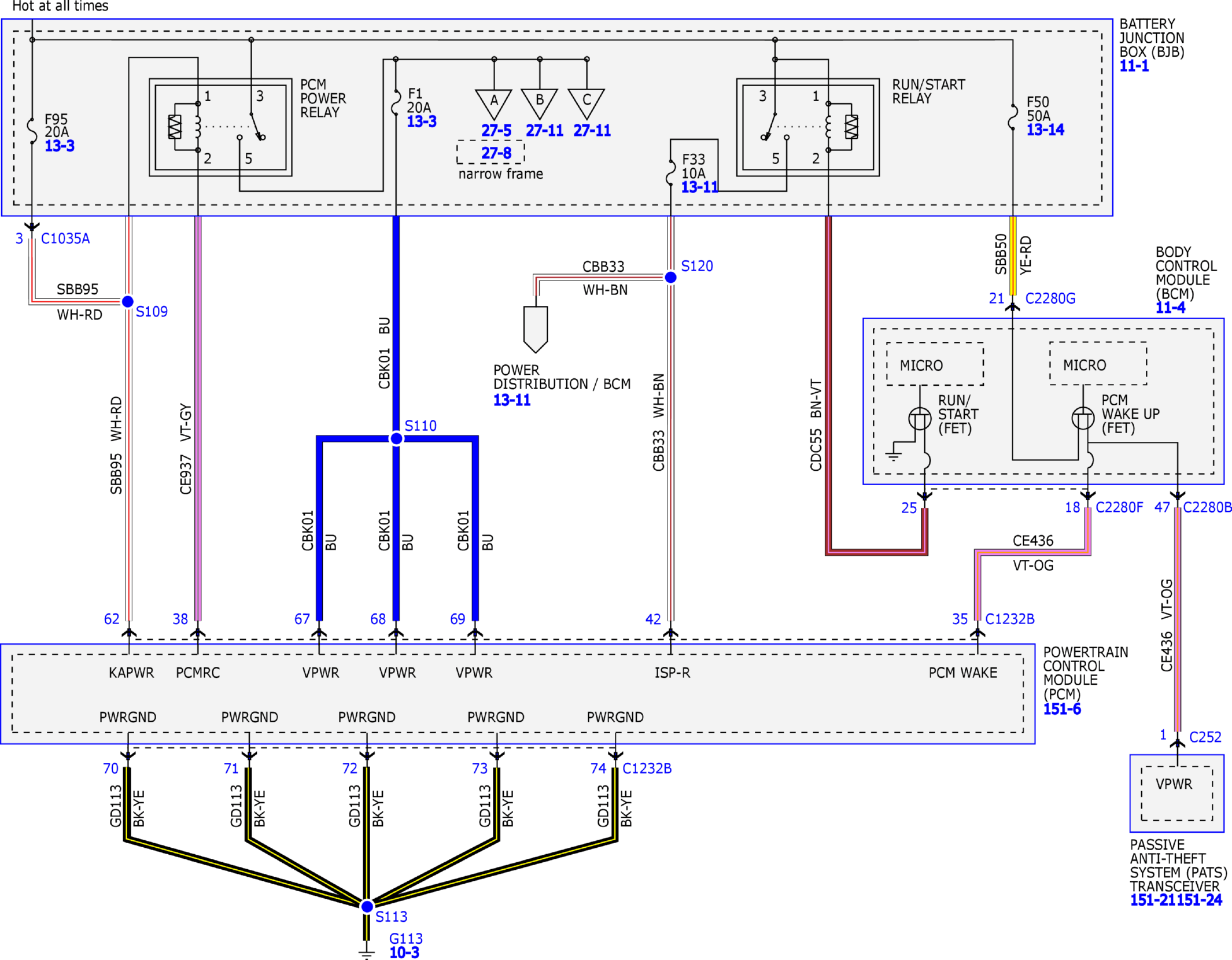

Fig 1: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (1 of 20)

GFDW83318

Courtesy of FORD MOTOR COMPANY

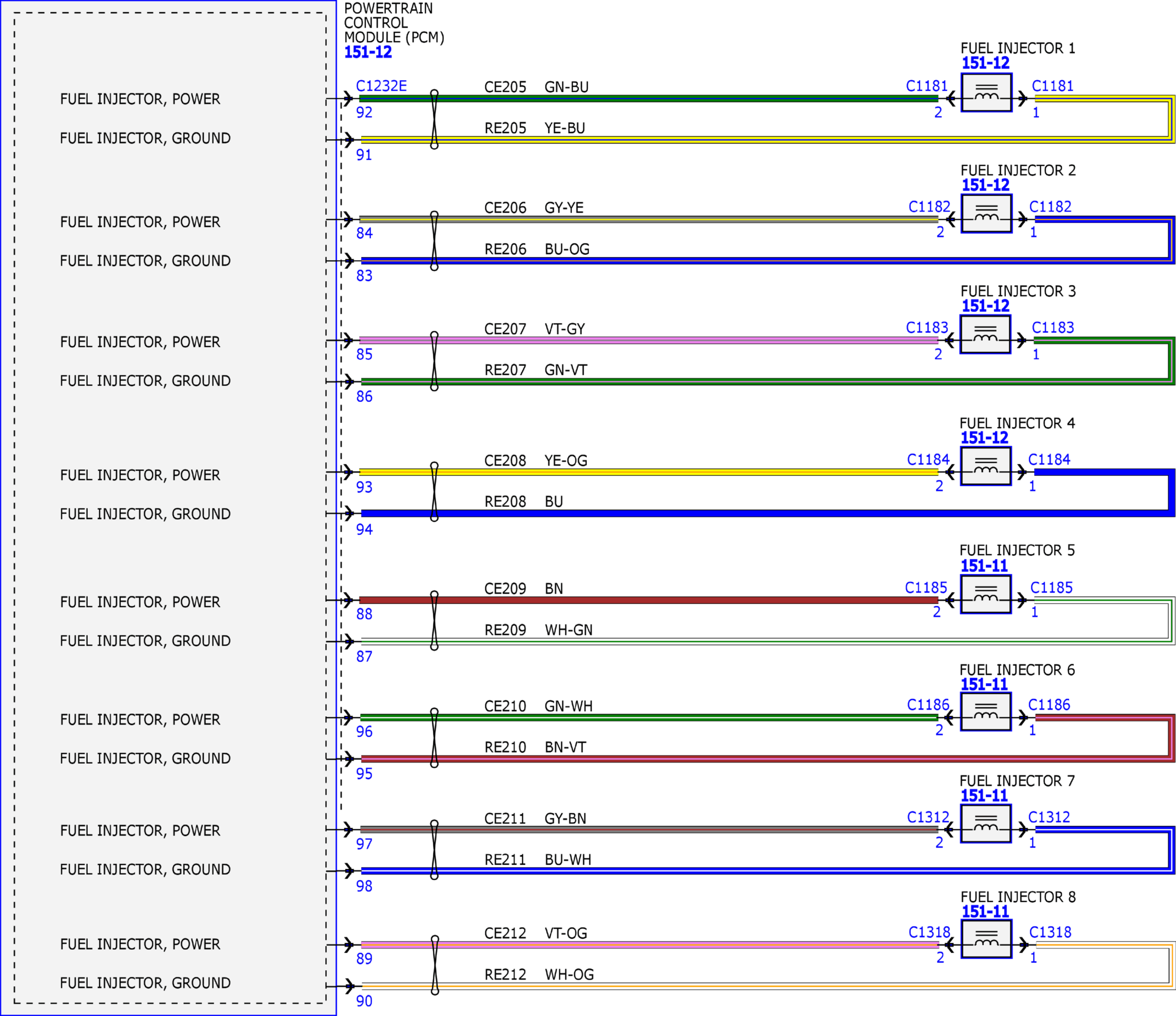

Fig 2: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (2 of 20)

GFDW83319

Courtesy of FORD MOTOR COMPANY

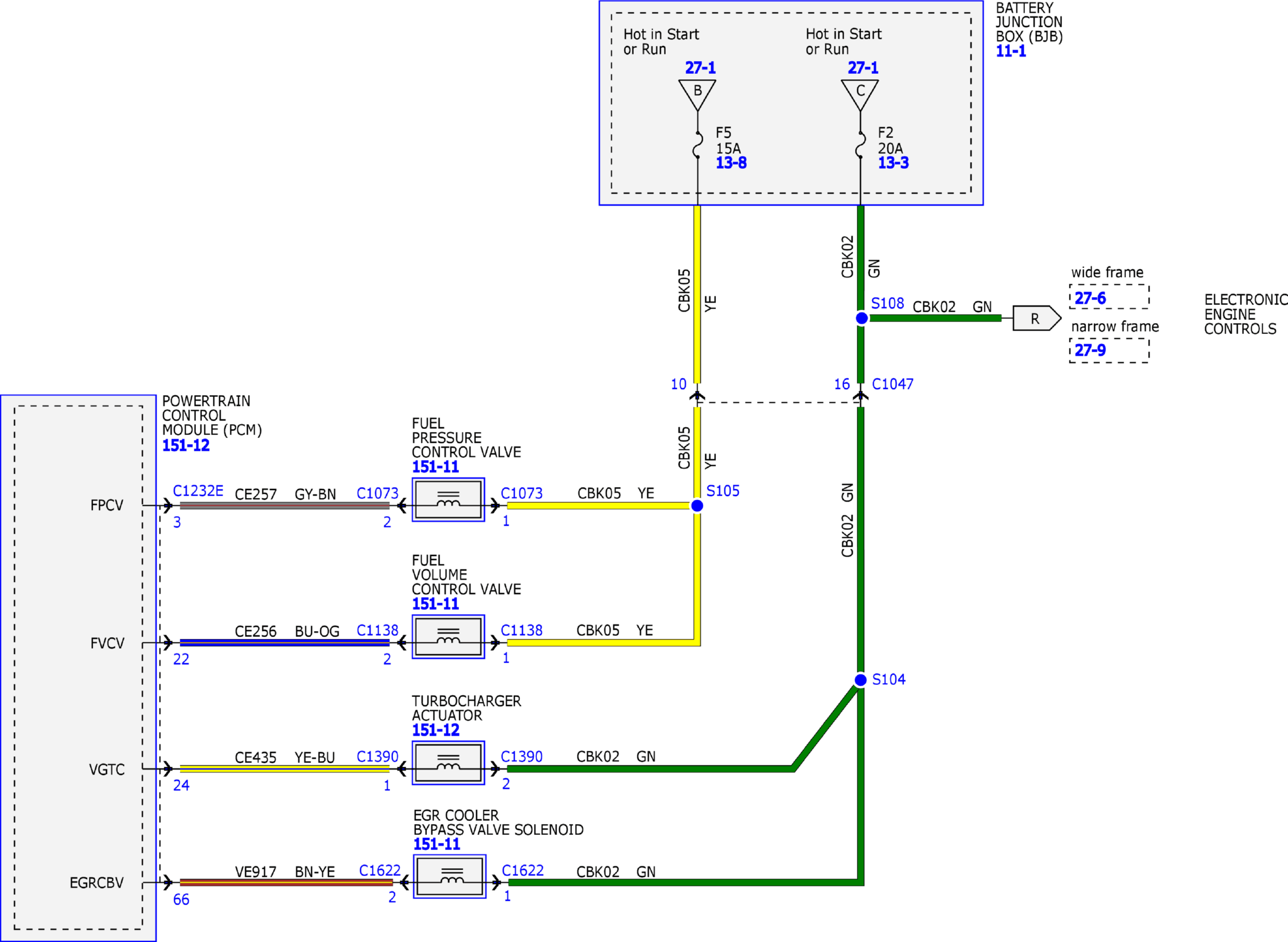

Fig 3: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (3 of 20)

GFDW83320

Courtesy of FORD MOTOR COMPANY

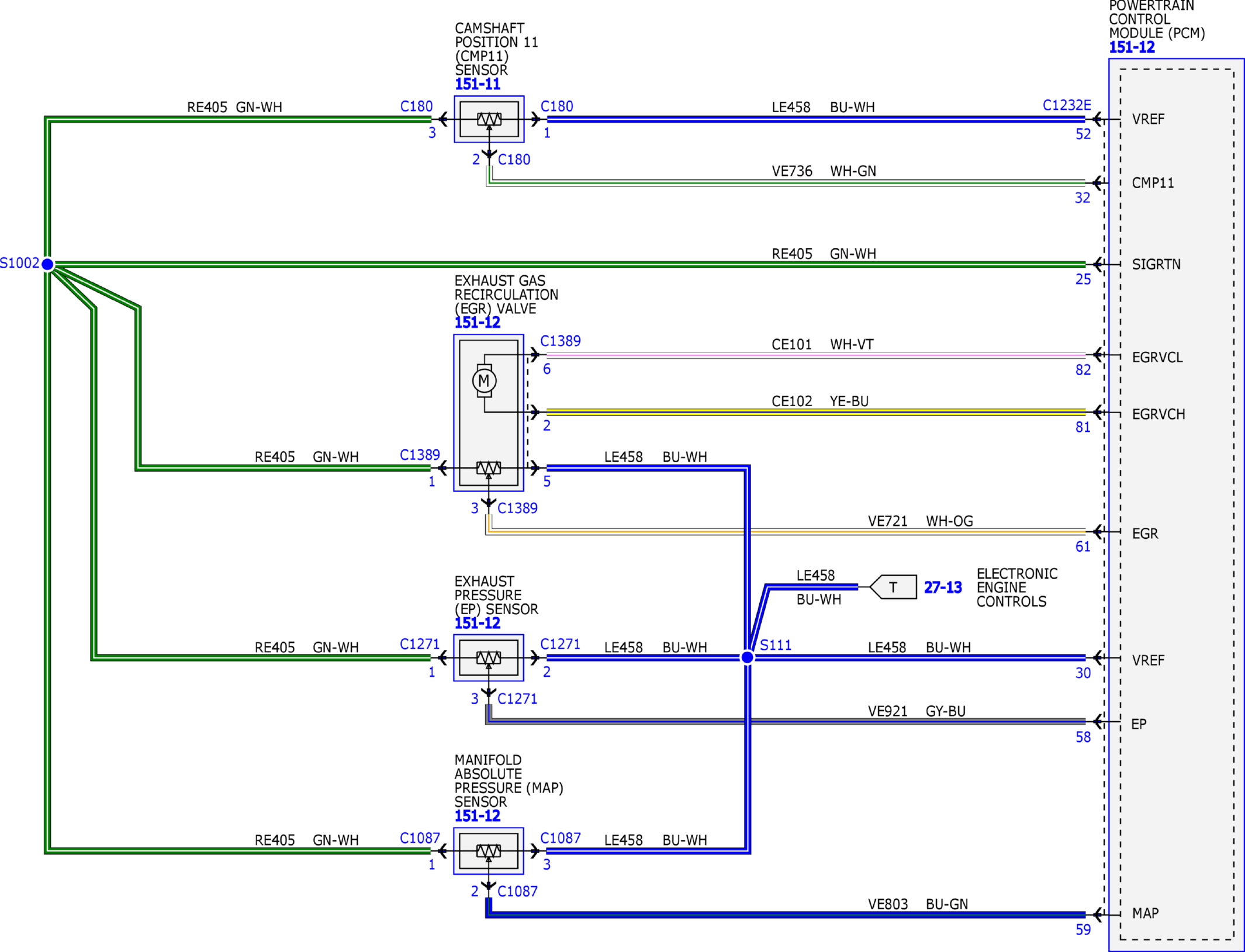

Fig 4: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (4 of 20)

GFDW83321

Courtesy of FORD MOTOR COMPANY

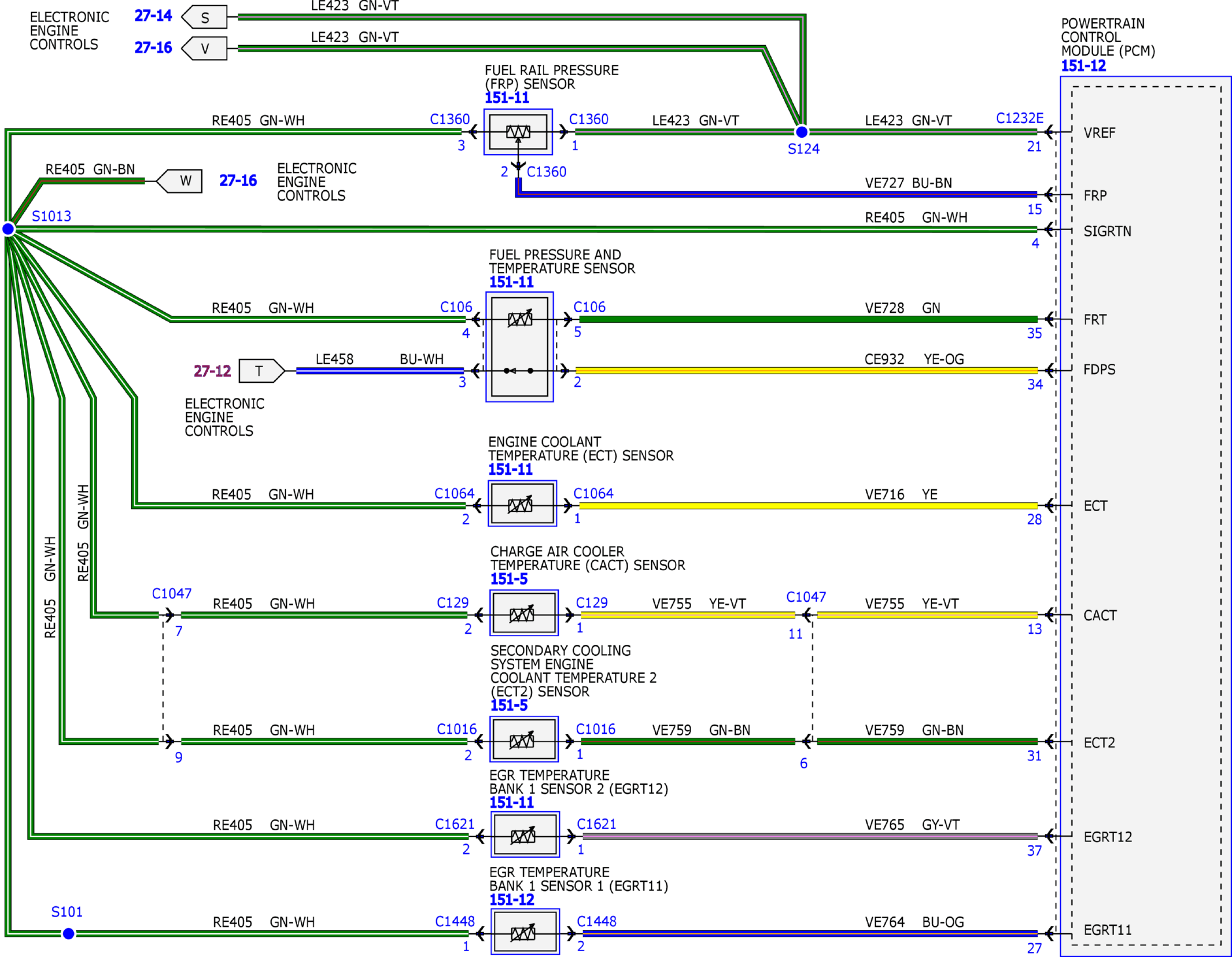

Fig 5: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (5 of 20)

GFDW83322

Courtesy of FORD MOTOR COMPANY

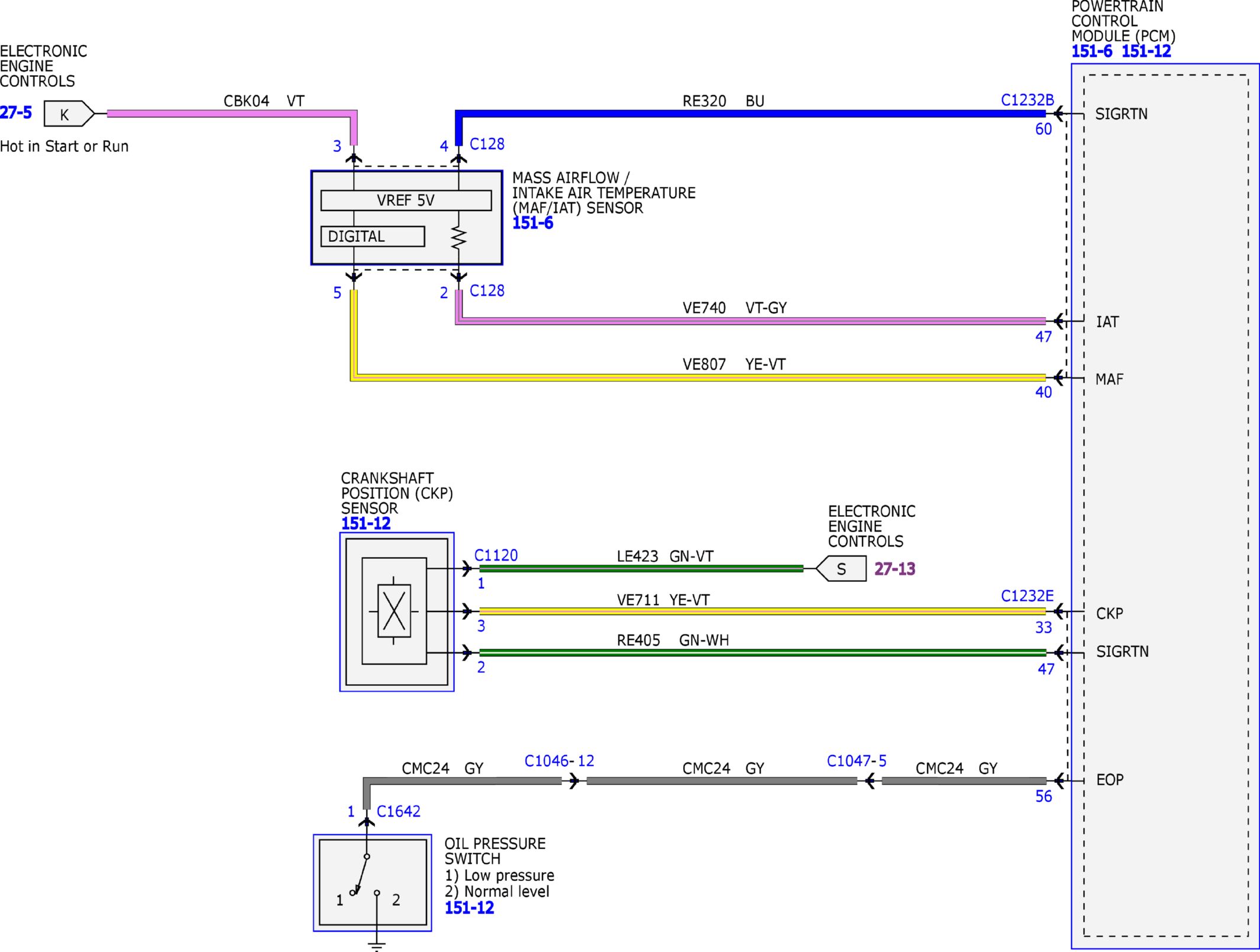

Fig 6: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (6 of 20)

GFDW83323

Courtesy of FORD MOTOR COMPANY

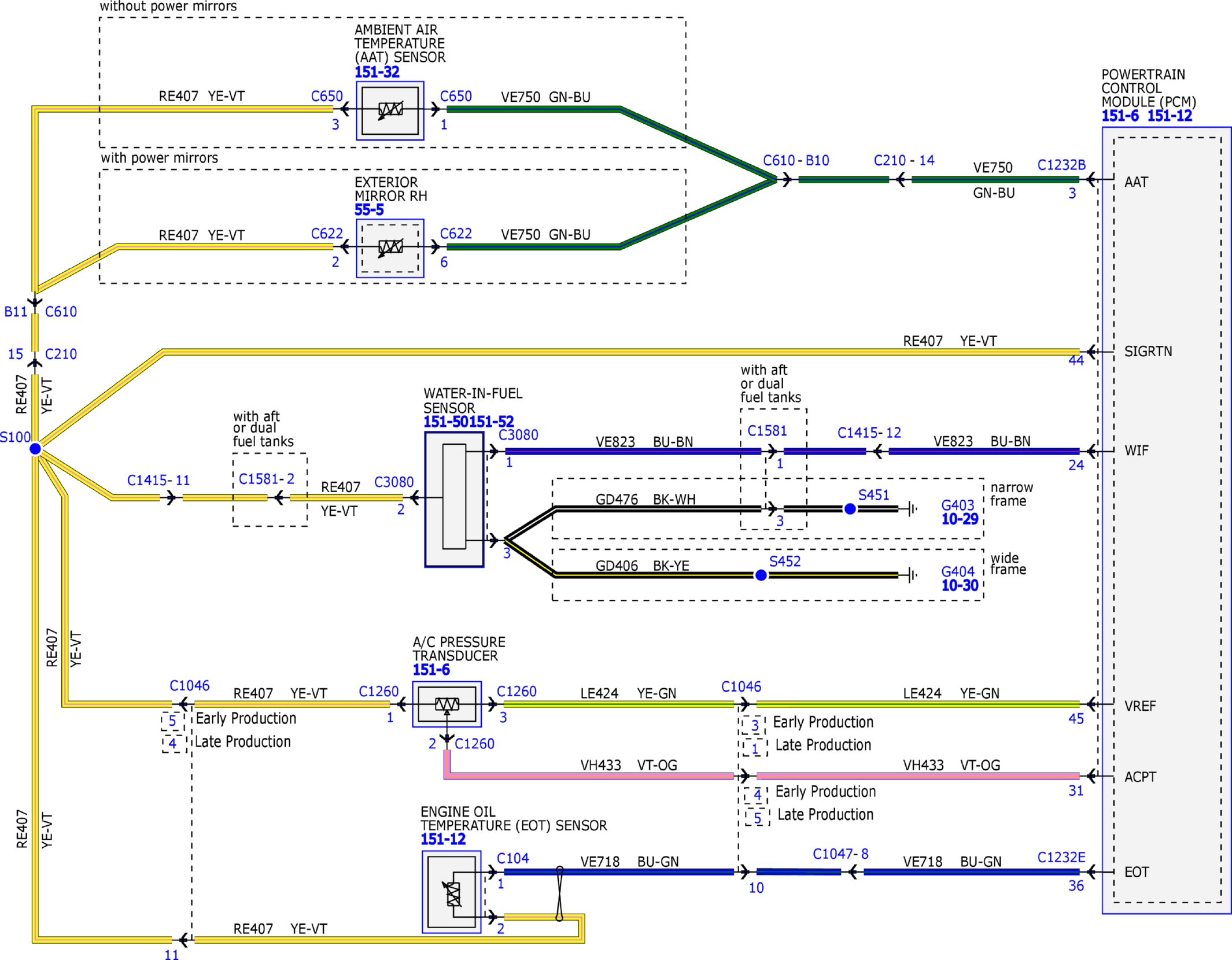

Fig 7: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (7 of 20)

GFDW83324

Courtesy of FORD MOTOR COMPANY

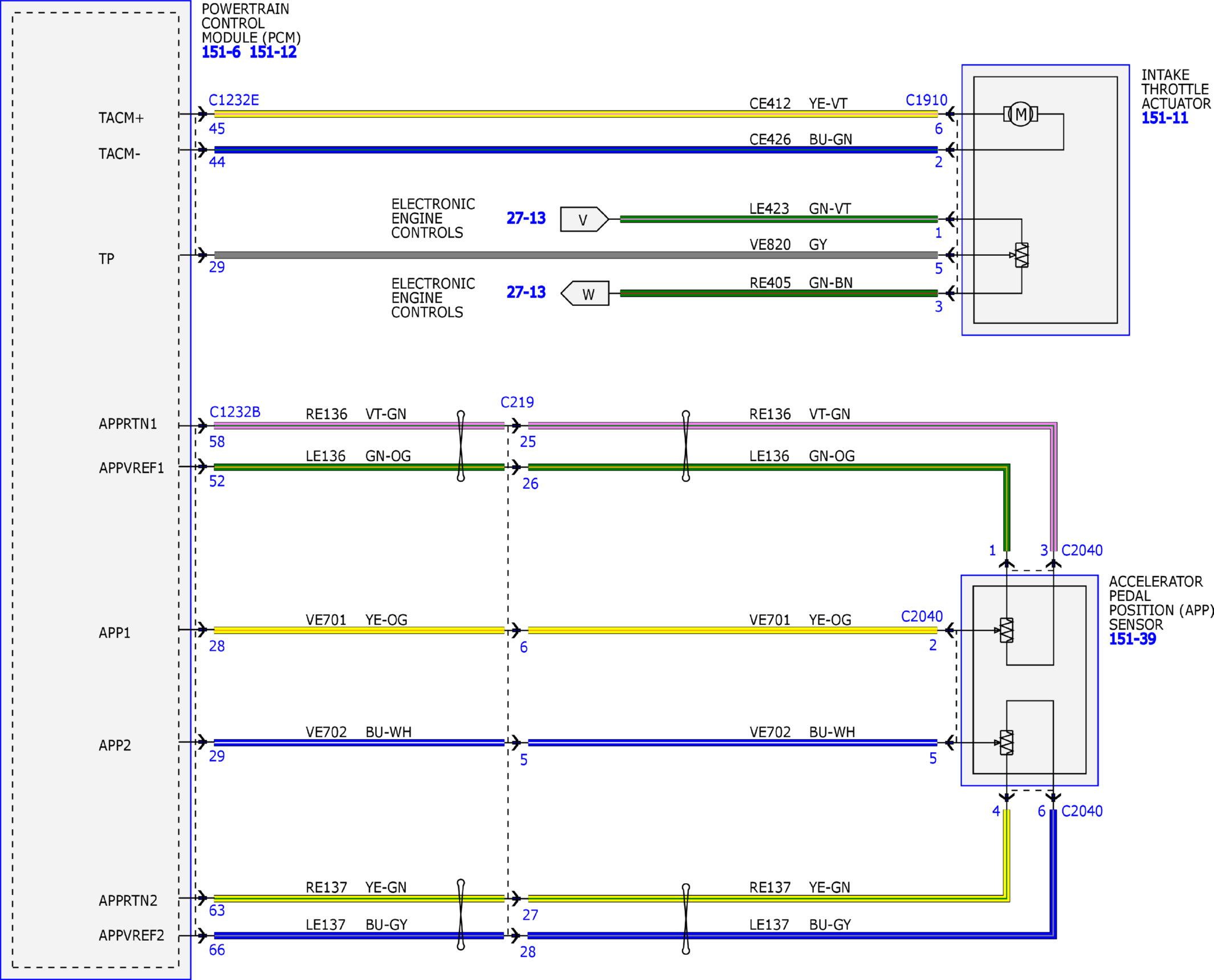

Fig 8: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (8 of 20)

GFDW83325

Courtesy of FORD MOTOR COMPANY

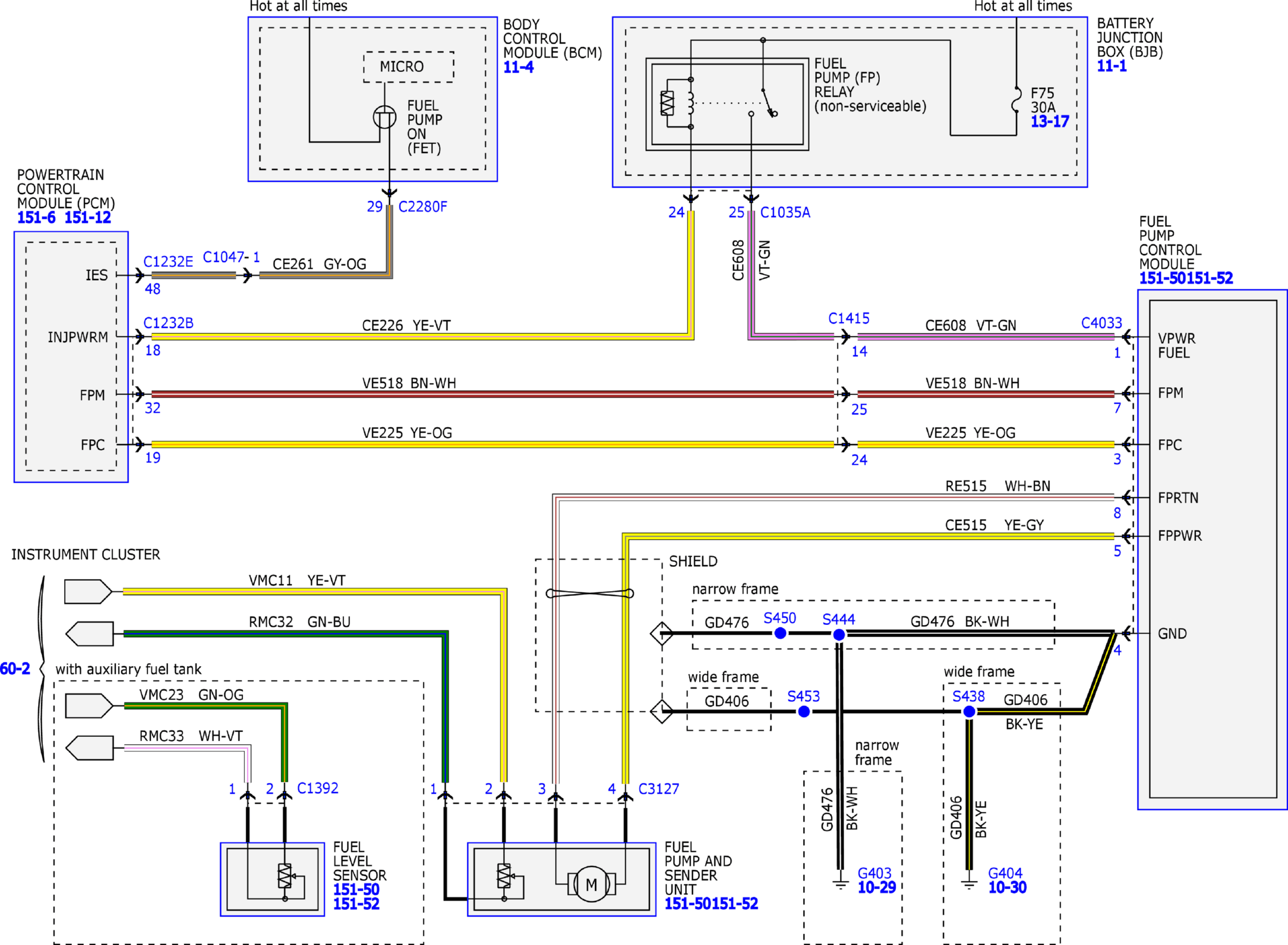

Fig 9: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (9 of 20)

GFDW83326

Courtesy of FORD MOTOR COMPANY

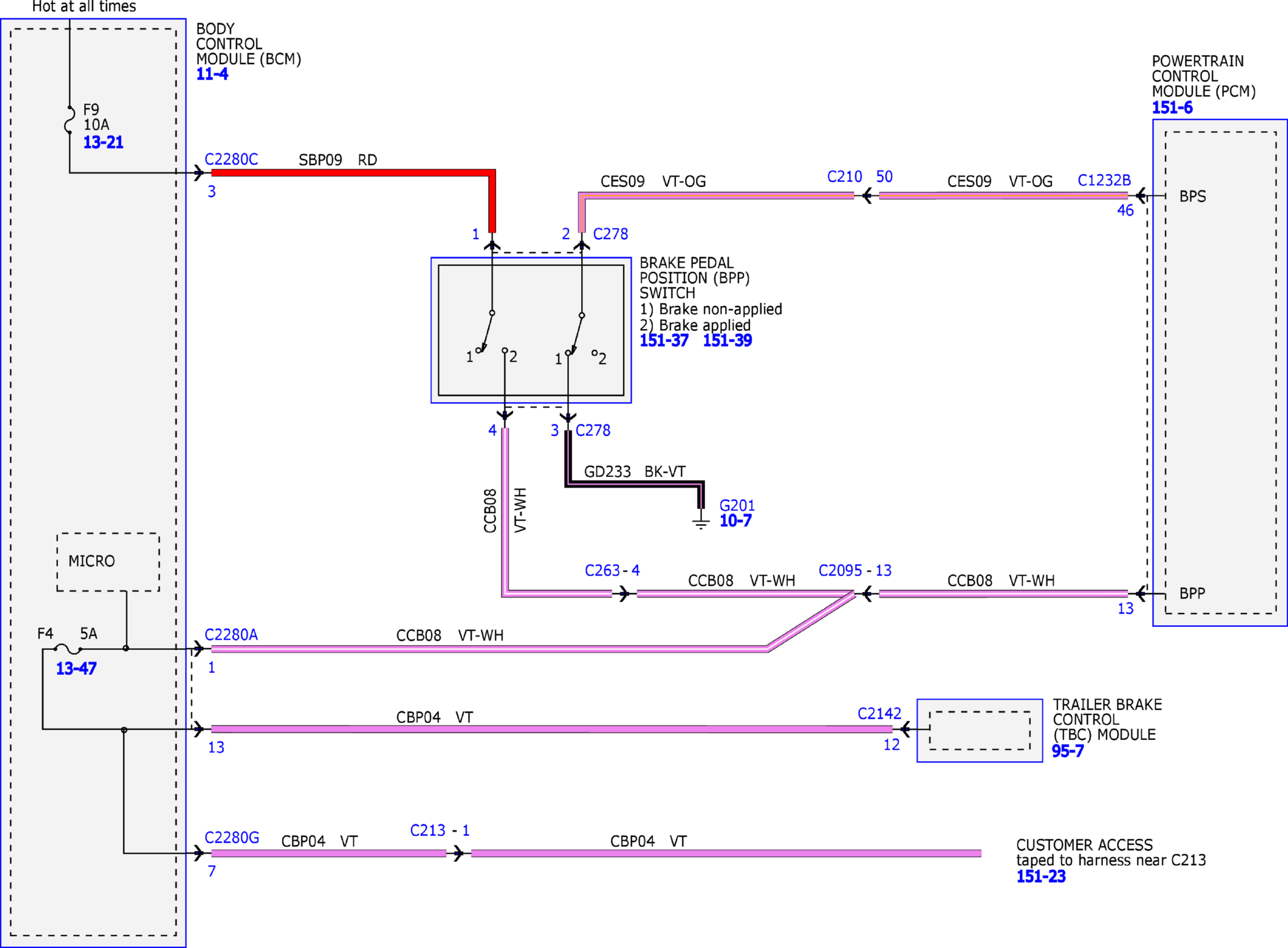

Fig 10: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (10 of 20)

GFDW83327

Courtesy of FORD MOTOR COMPANY

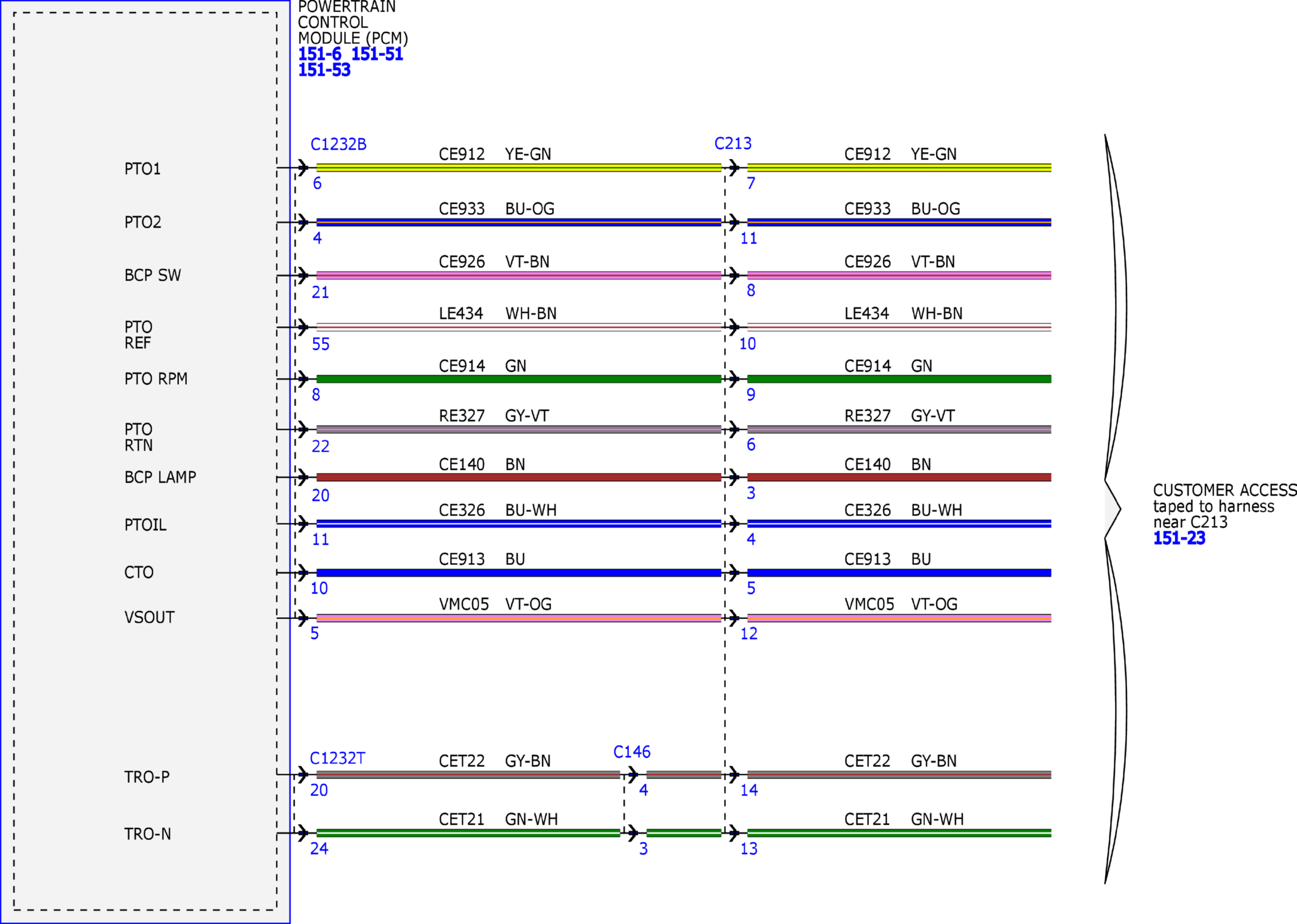

Fig 11: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (11 of 20)

GFDW83328

Courtesy of FORD MOTOR COMPANY

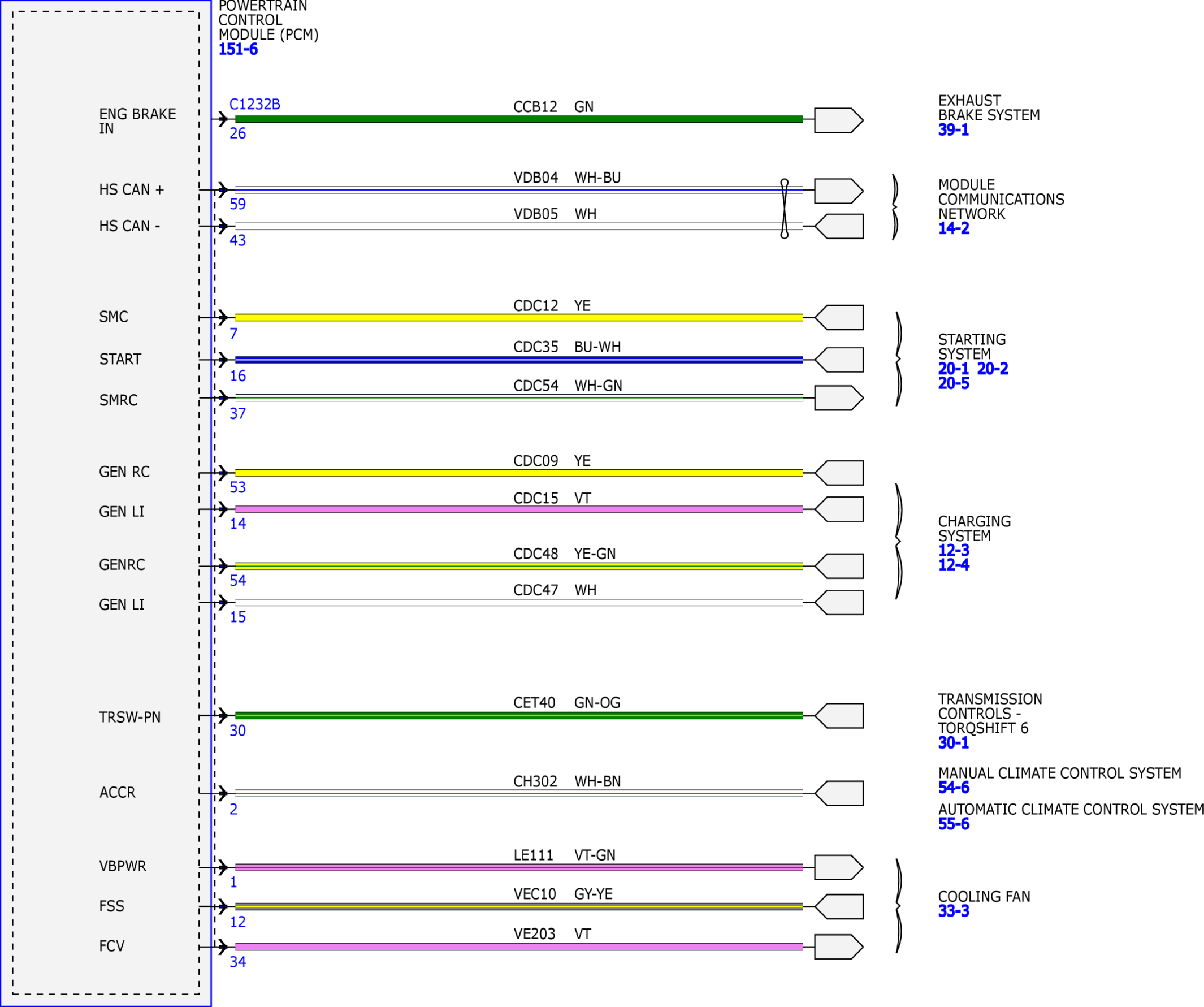

Fig 12: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (12 of 20)

GFDW83329

Courtesy of FORD MOTOR COMPANY

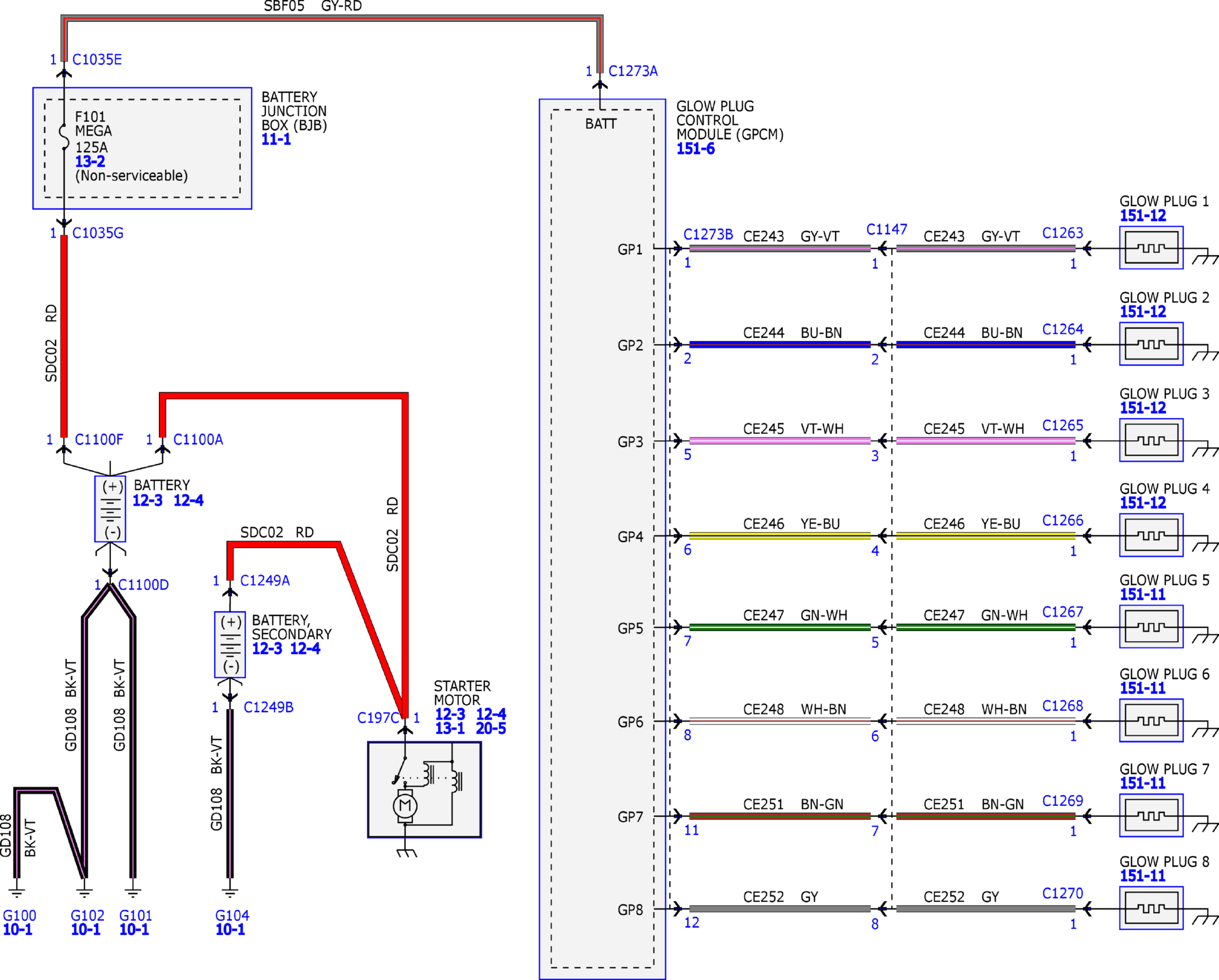

Fig 13: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (13 of 20)

GFDW83330

Courtesy of FORD MOTOR COMPANY

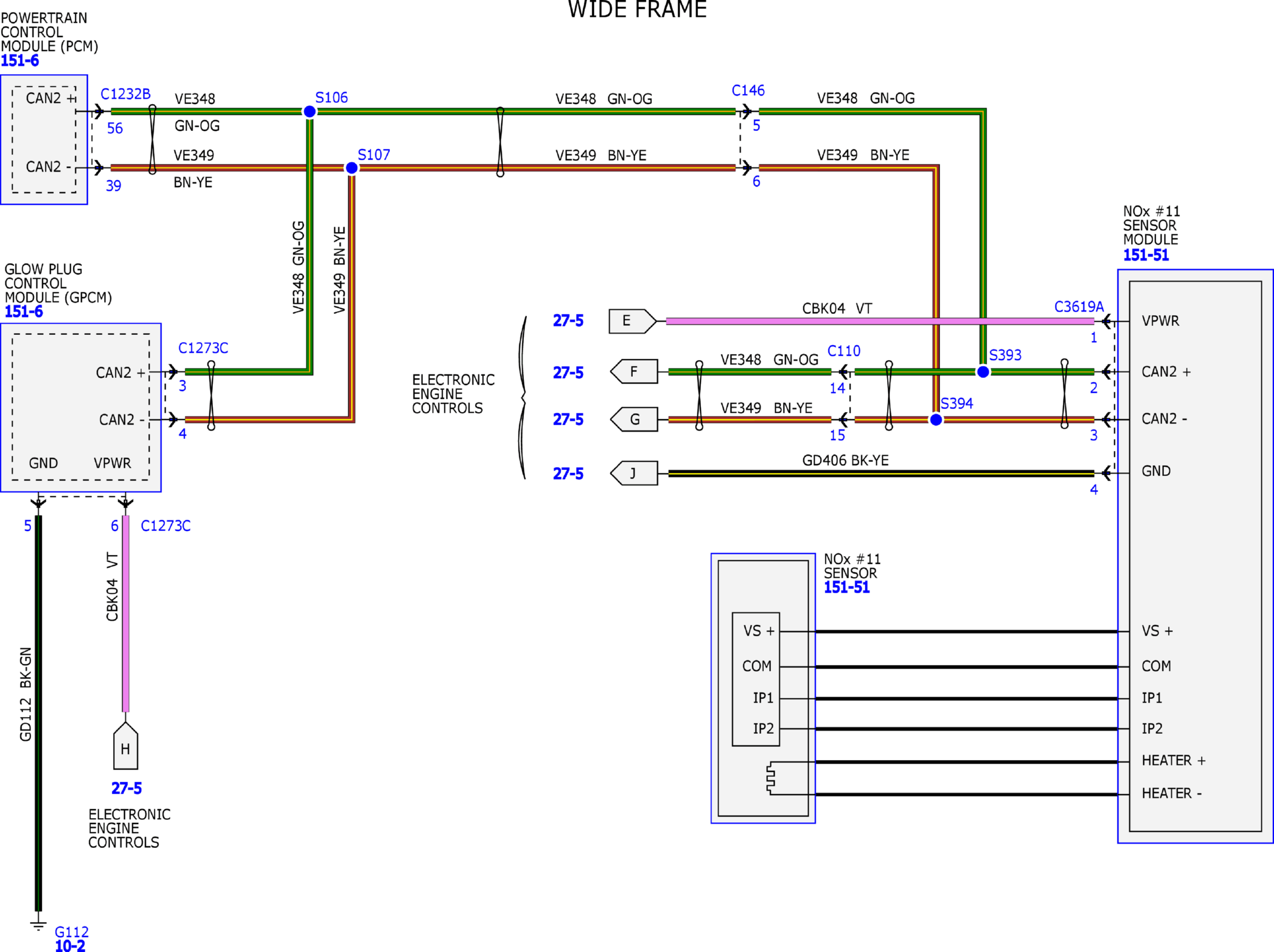

Fig 14: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (14 of 20)

GFDW83331

Courtesy of FORD MOTOR COMPANY

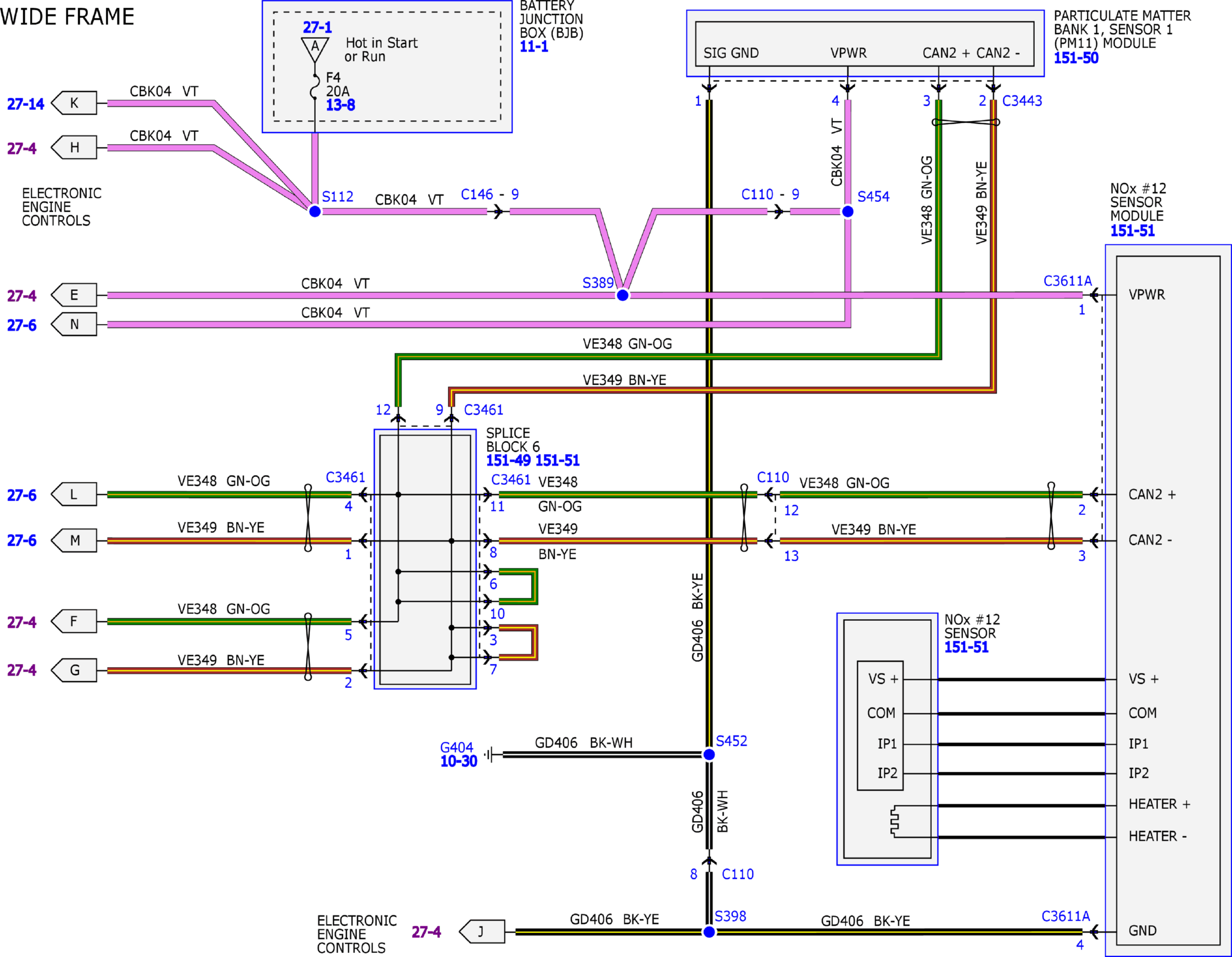

Fig 15: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (15 of 20)

GFDW83332

Courtesy of FORD MOTOR COMPANY

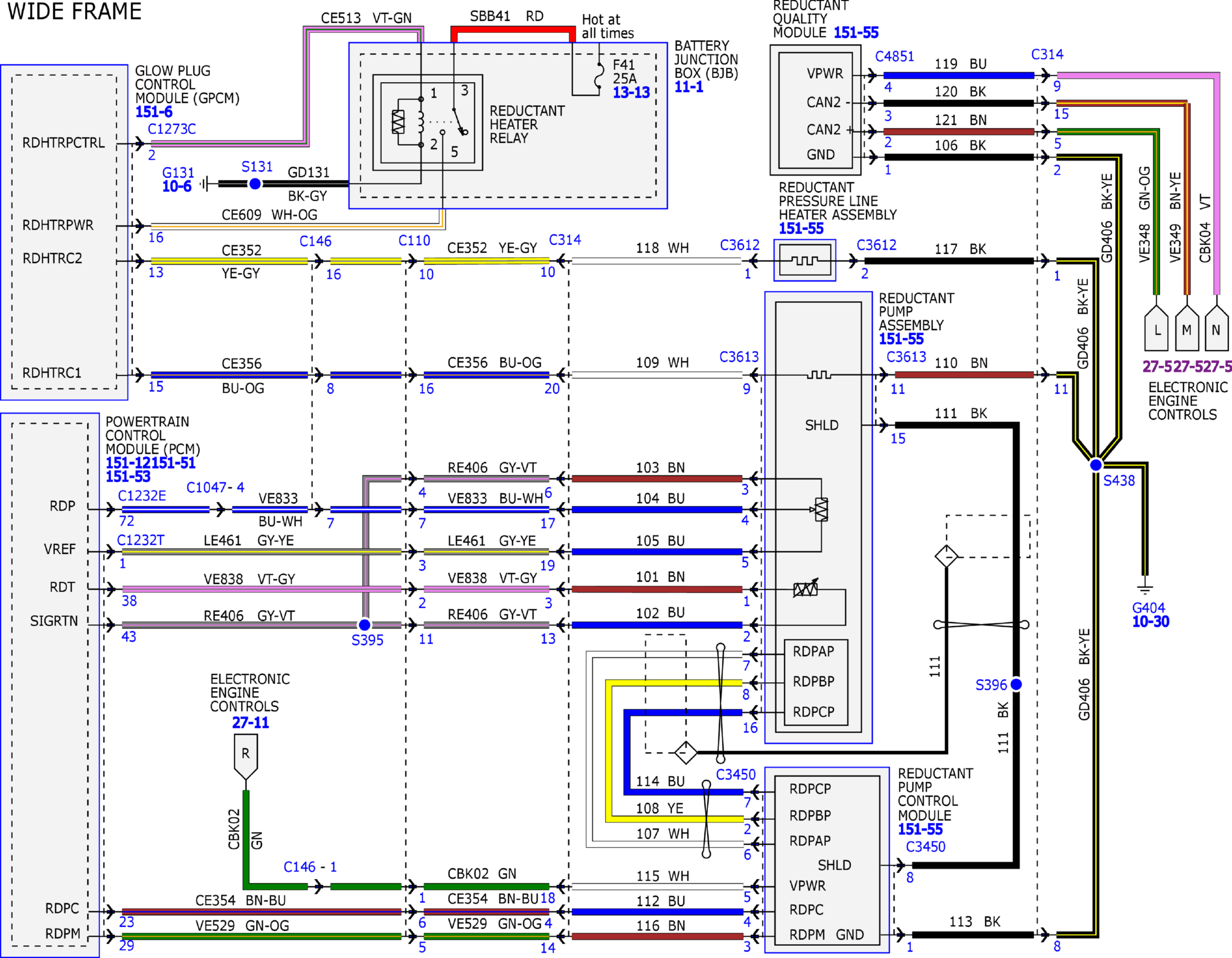

Fig 16: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (16 of 20)

GFDW83333

Courtesy of FORD MOTOR COMPANY

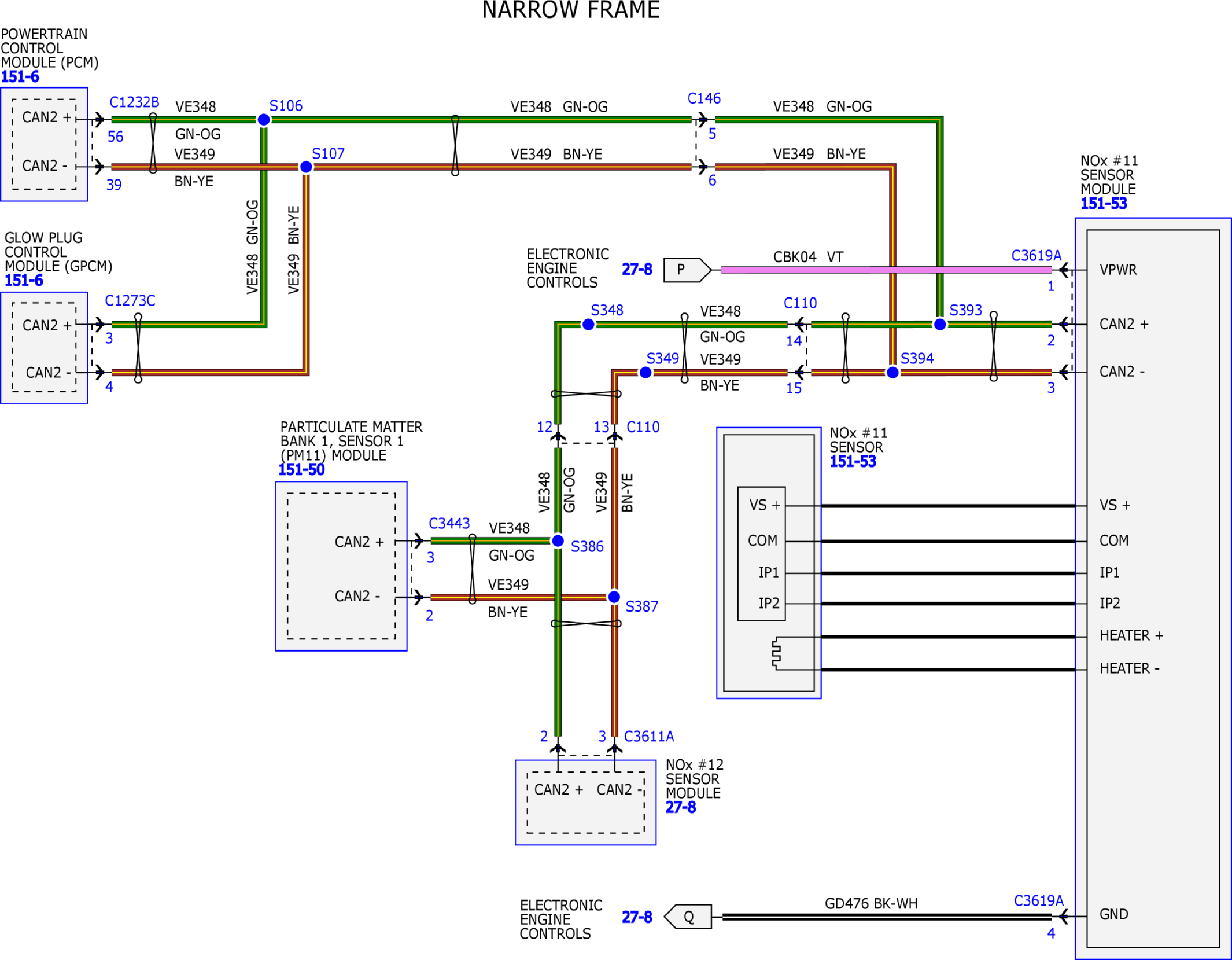

Fig 17: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (17 of 20)

GFDW83334

Courtesy of FORD MOTOR COMPANY

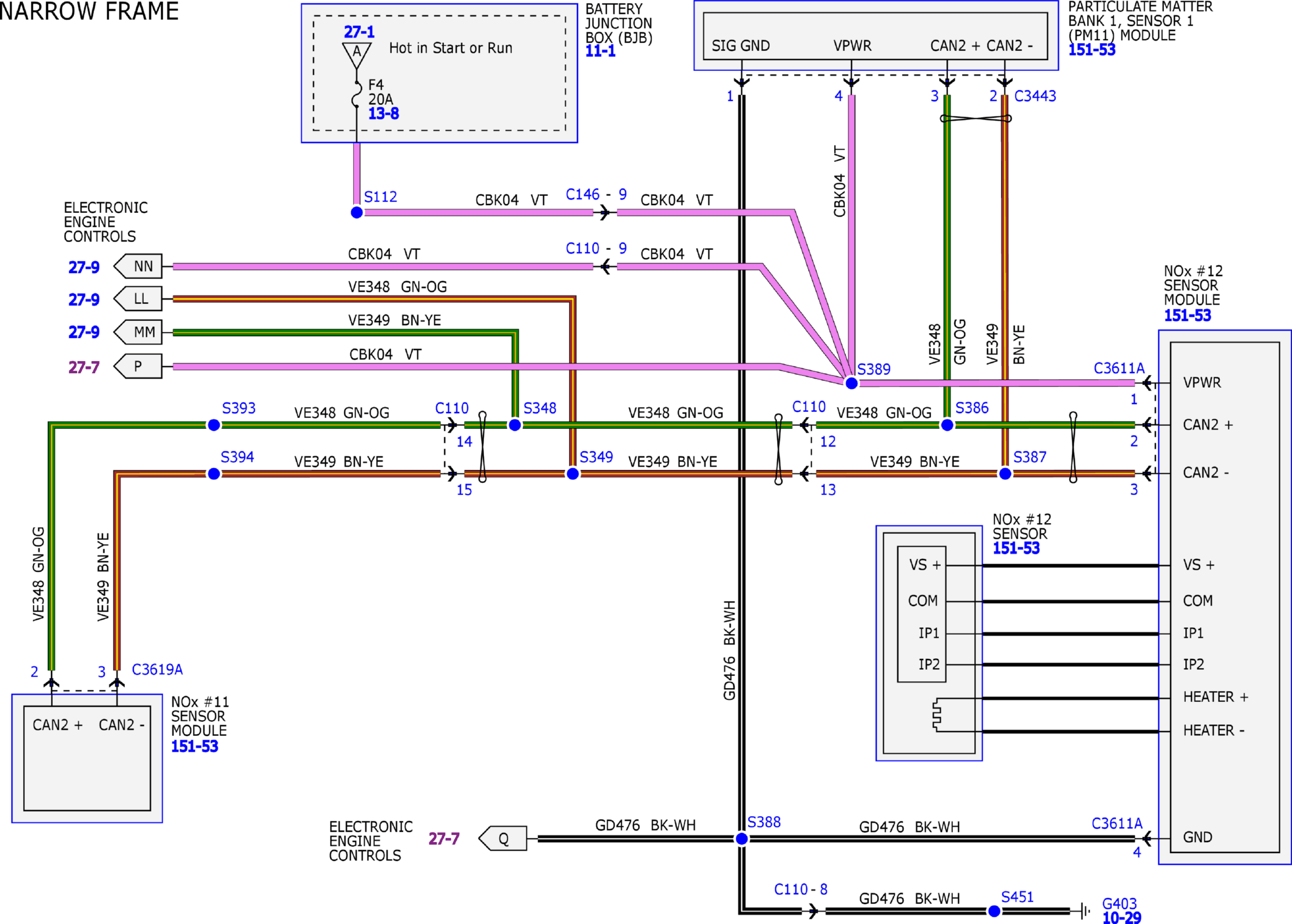

Fig 18: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (18 of 20)

GFDW83335

Courtesy of FORD MOTOR COMPANY

Fig 19: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (19 of 20)

GFDW83336

Courtesy of FORD MOTOR COMPANY

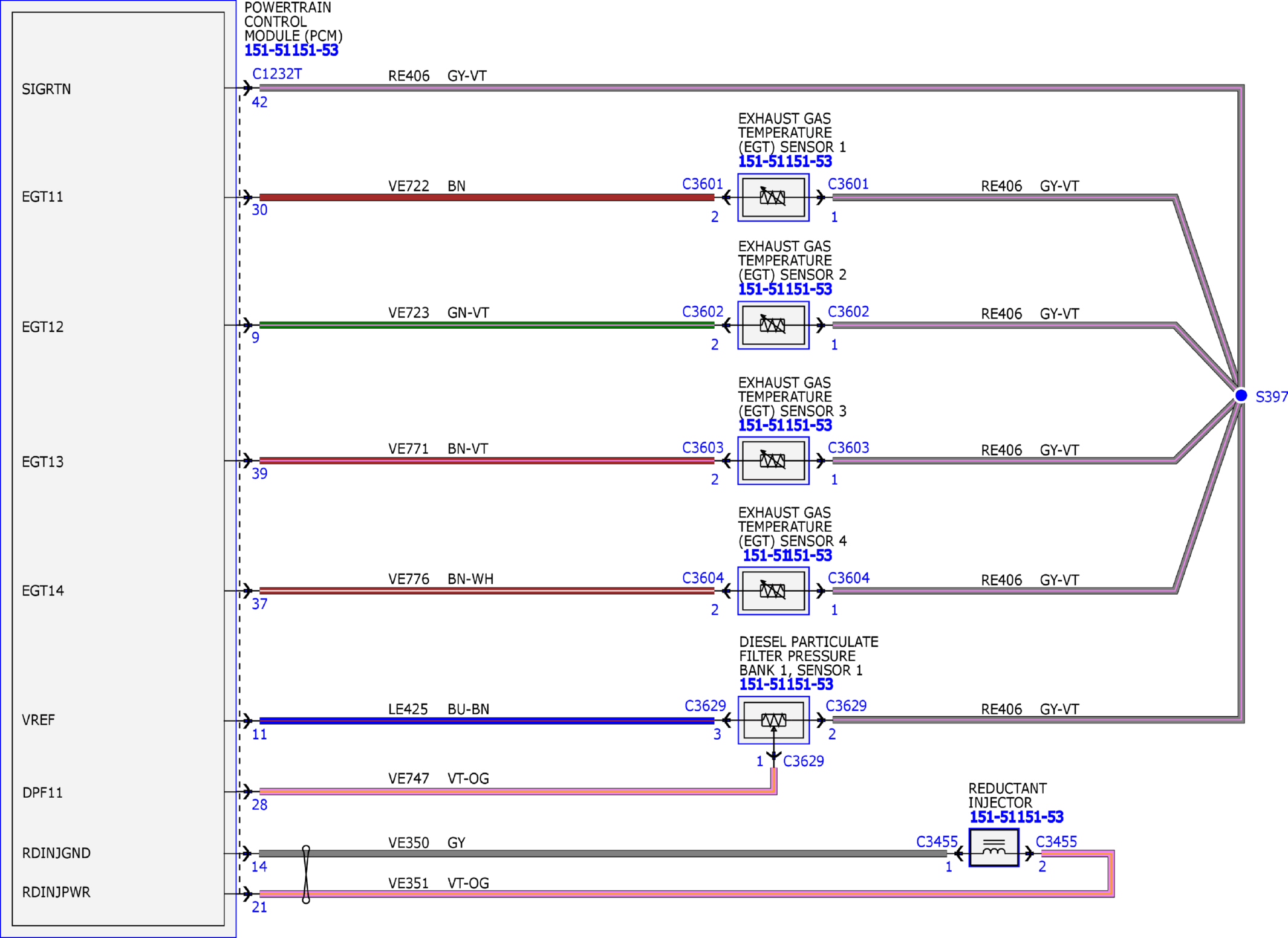

Fig 20: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (20 of 20)

GFDW83337

Courtesy of FORD MOTOR COMPANY
