Electronic Engine Controls - 6.2L

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

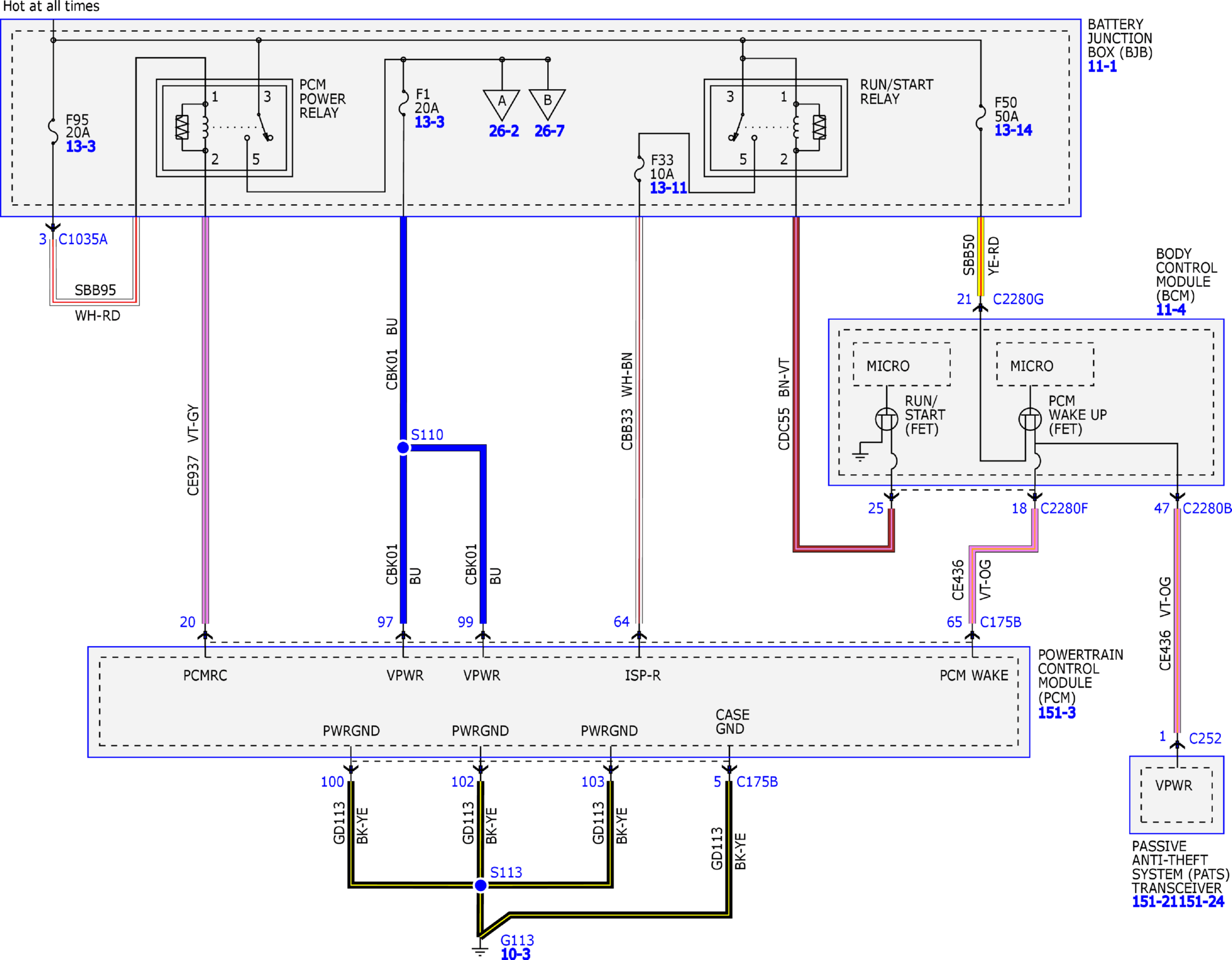

Fig 1: Electronic Engine Controls - 6.2L Wiring Diagram (1 of 17)

GFDW83301

Courtesy of FORD MOTOR COMPANY

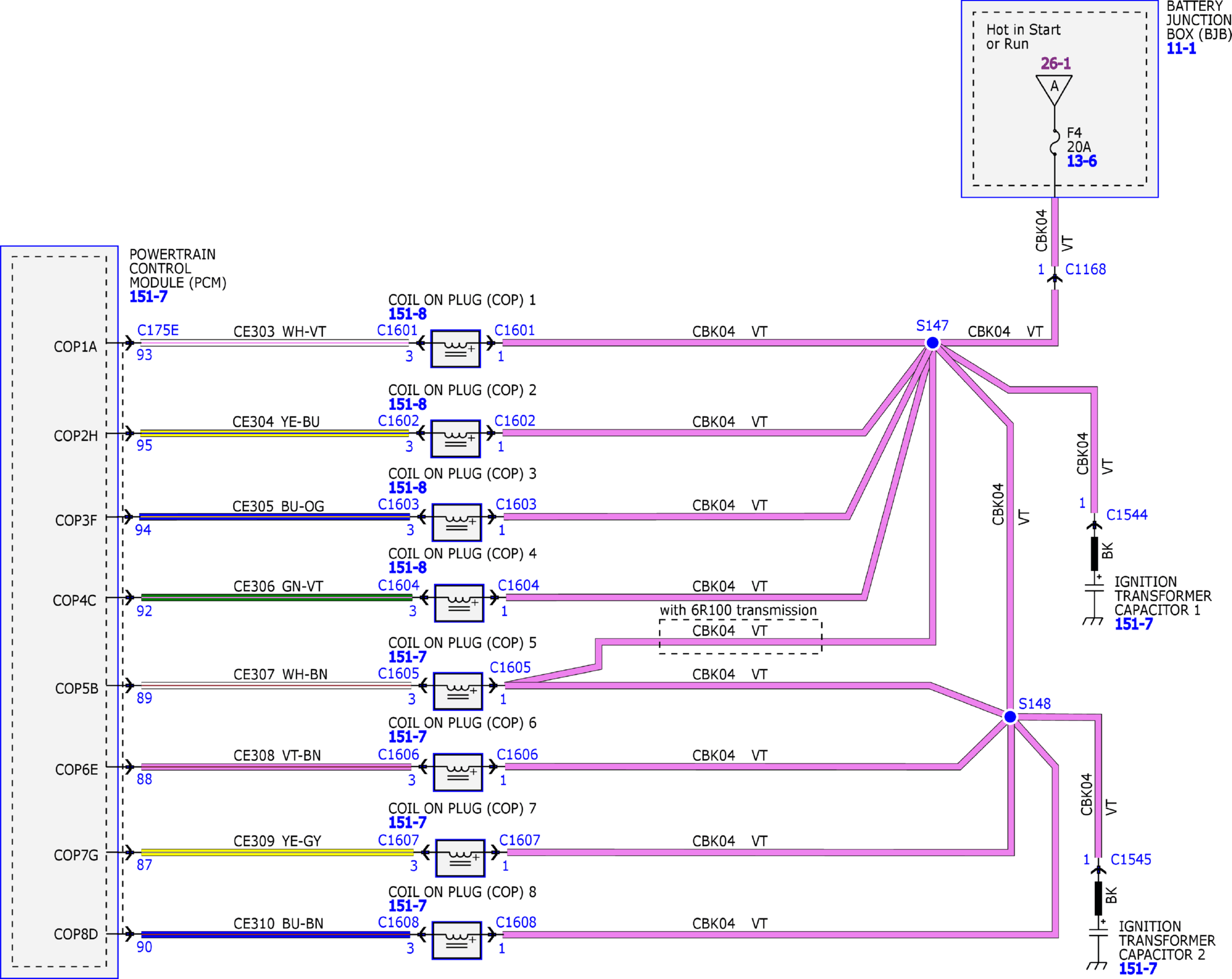

Fig 2: Electronic Engine Controls - 6.2L Wiring Diagram (2 of 17)

GFDW83302

Courtesy of FORD MOTOR COMPANY

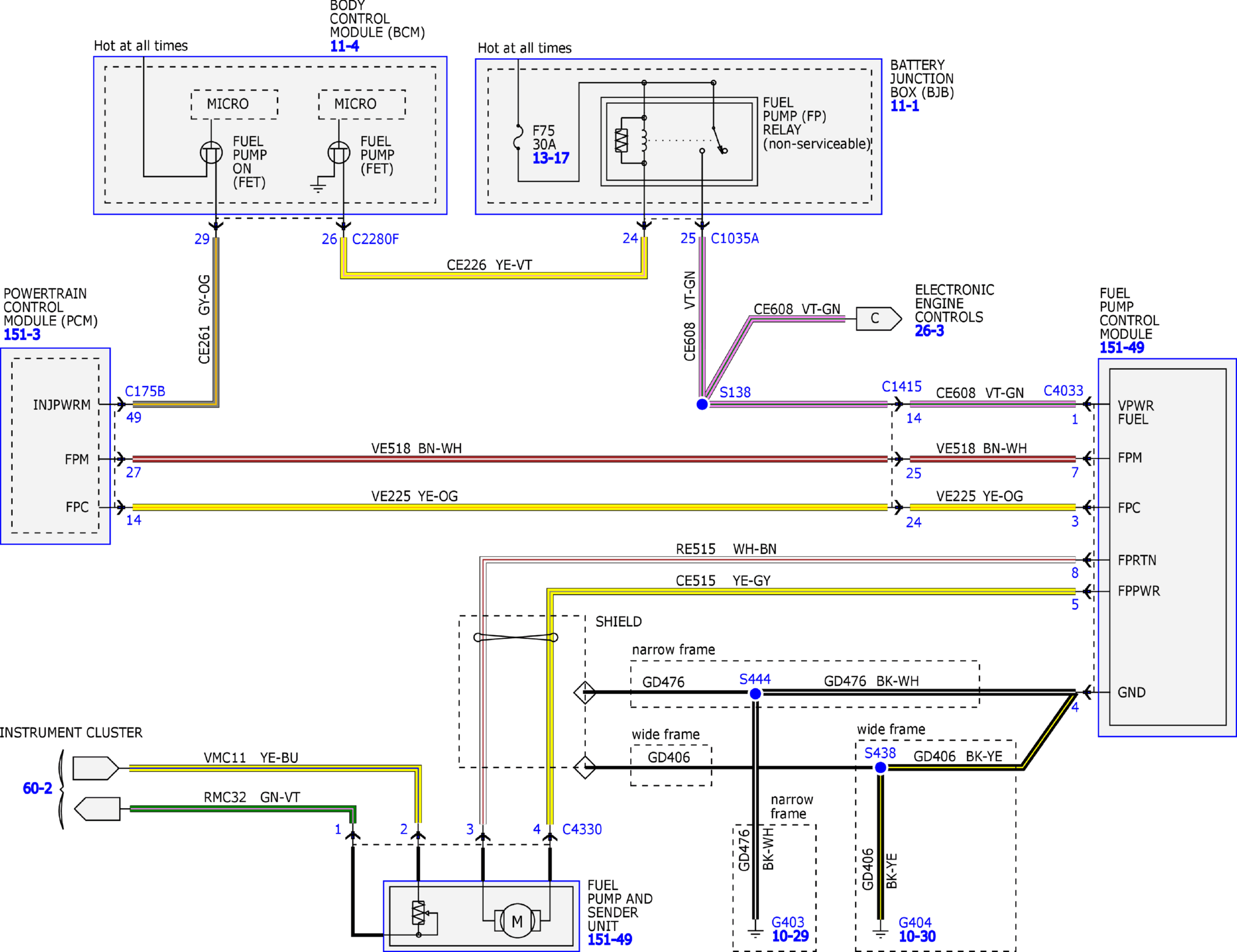

Fig 3: Electronic Engine Controls - 6.2L Wiring Diagram (3 of 17)

GFDW83303

Courtesy of FORD MOTOR COMPANY

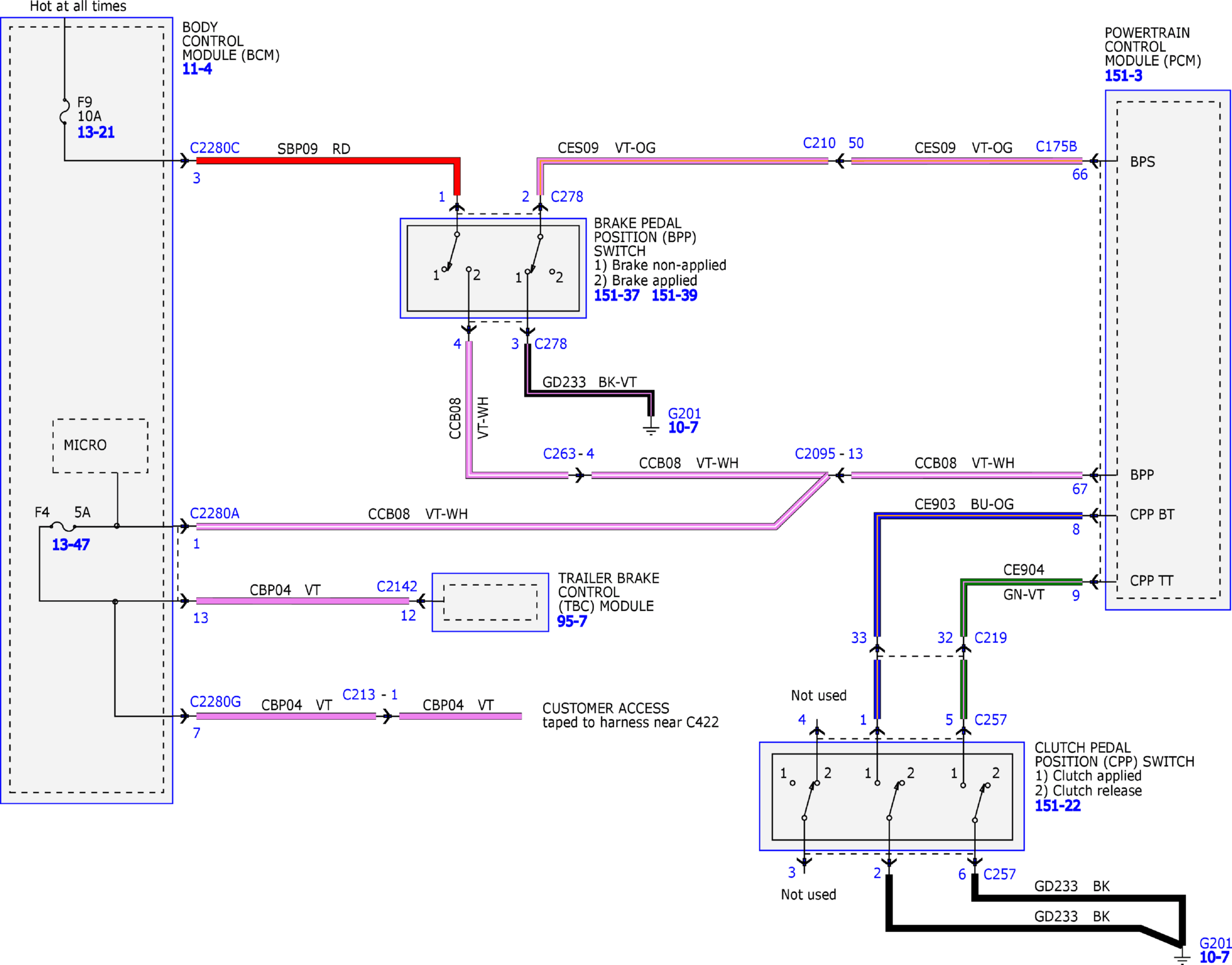

Fig 4: Electronic Engine Controls - 6.2L Wiring Diagram (4 of 17)

GFDW83304

Courtesy of FORD MOTOR COMPANY

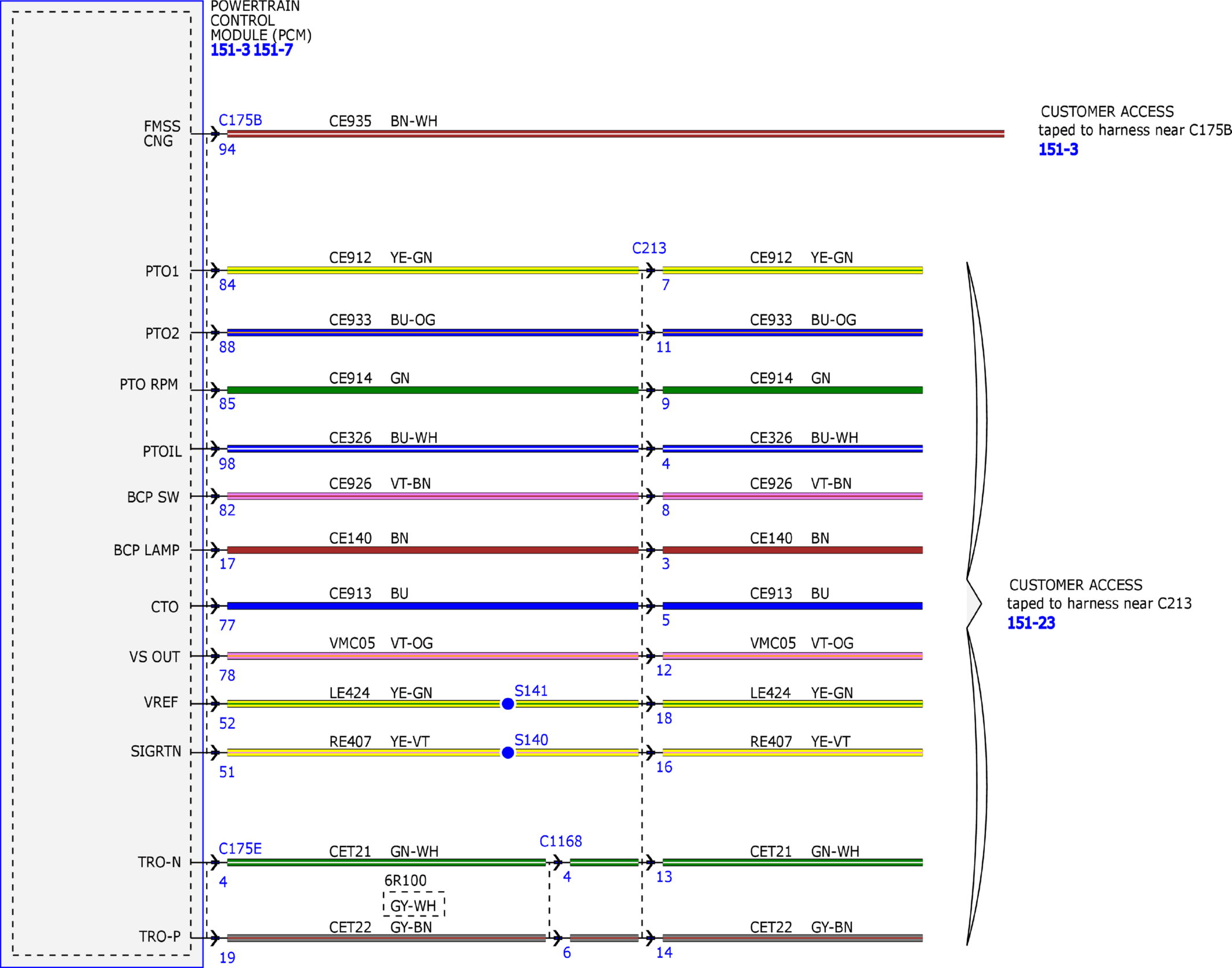

Fig 5: Electronic Engine Controls - 6.2L Wiring Diagram (5 of 17)

GFDW83305

Courtesy of FORD MOTOR COMPANY

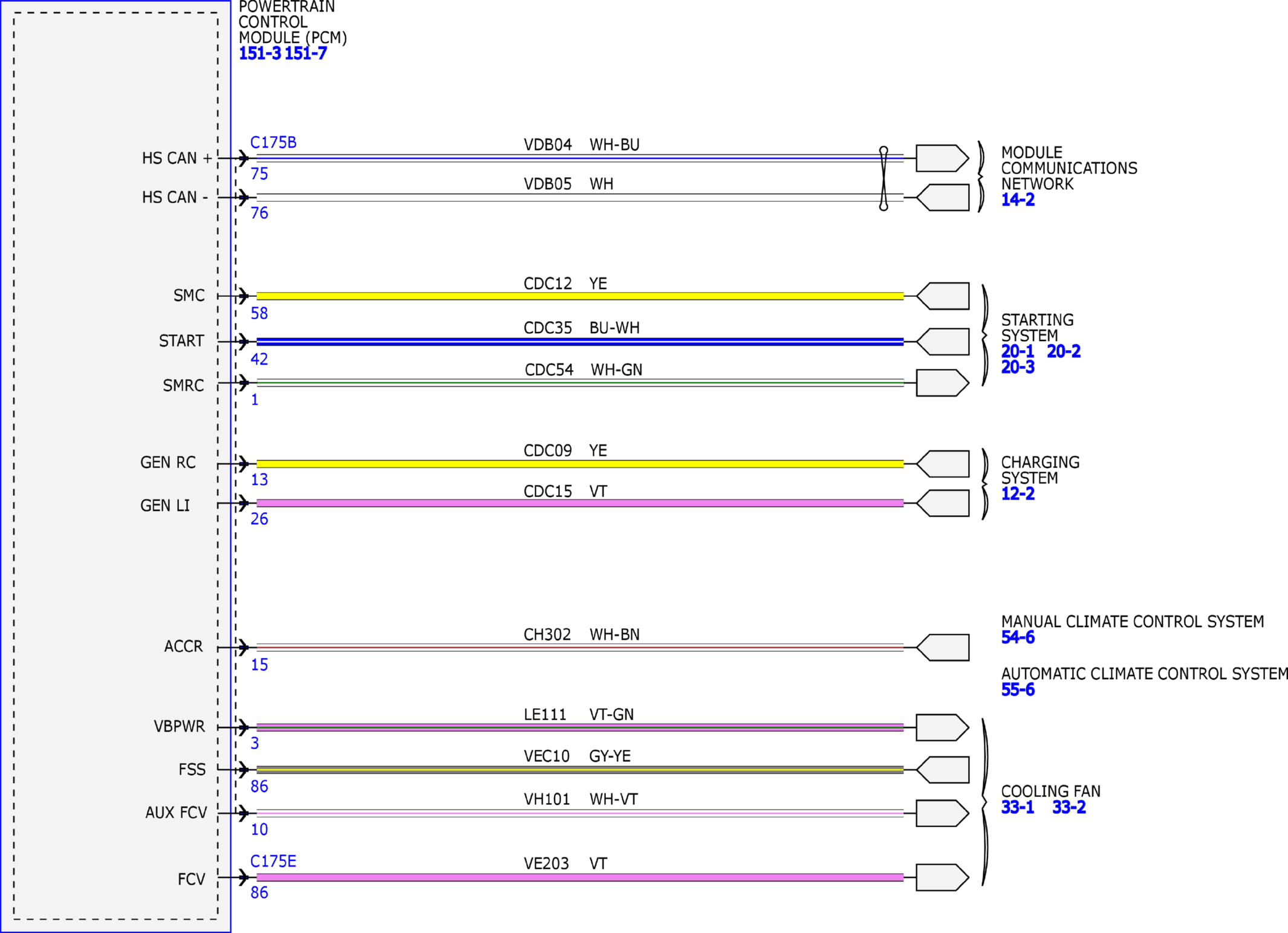

Fig 6: Electronic Engine Controls - 6.2L Wiring Diagram (6 of 17)

GFDW83306

Courtesy of FORD MOTOR COMPANY

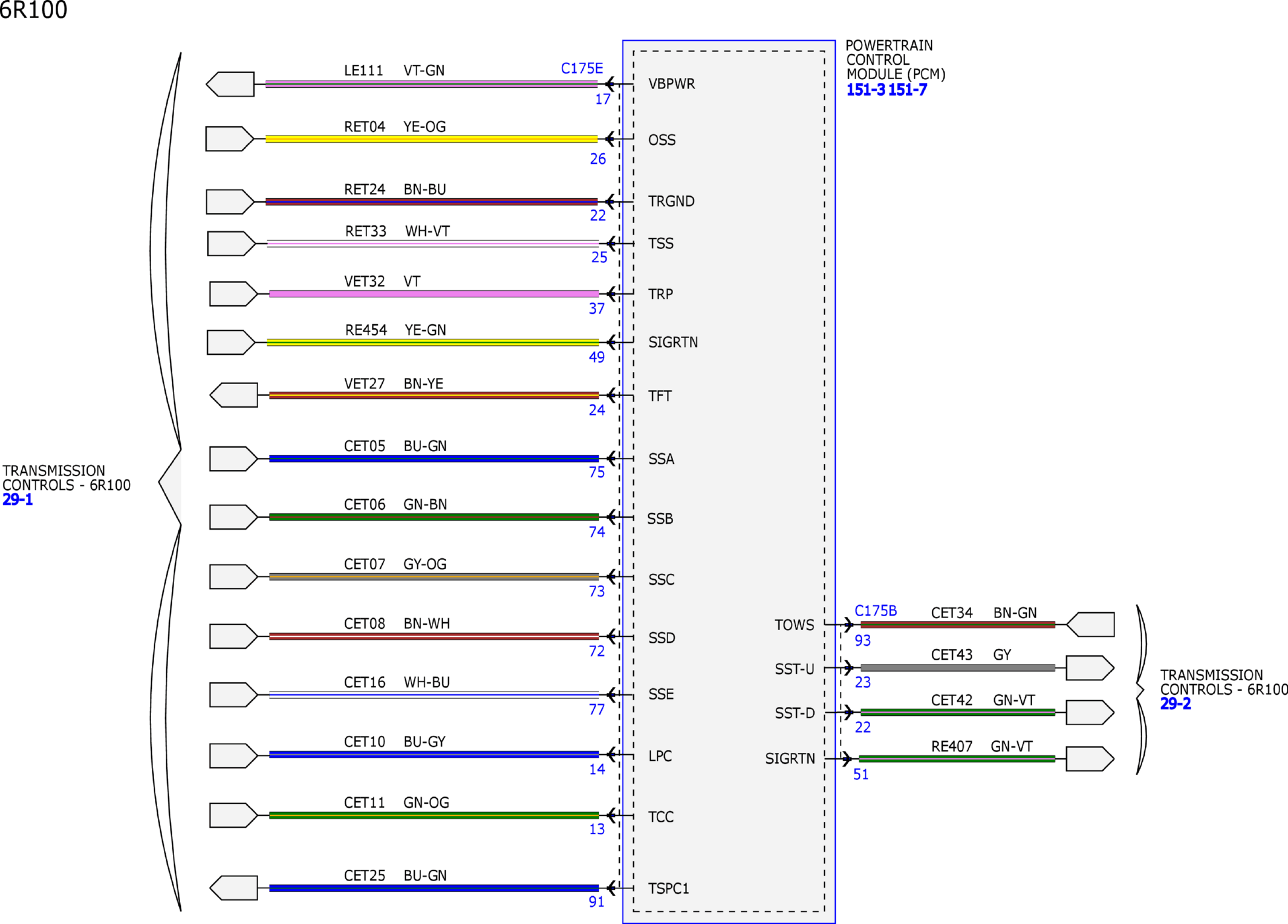

Fig 7: Electronic Engine Controls - 6.2L Wiring Diagram (7 of 17)

GFDW83307

Courtesy of FORD MOTOR COMPANY

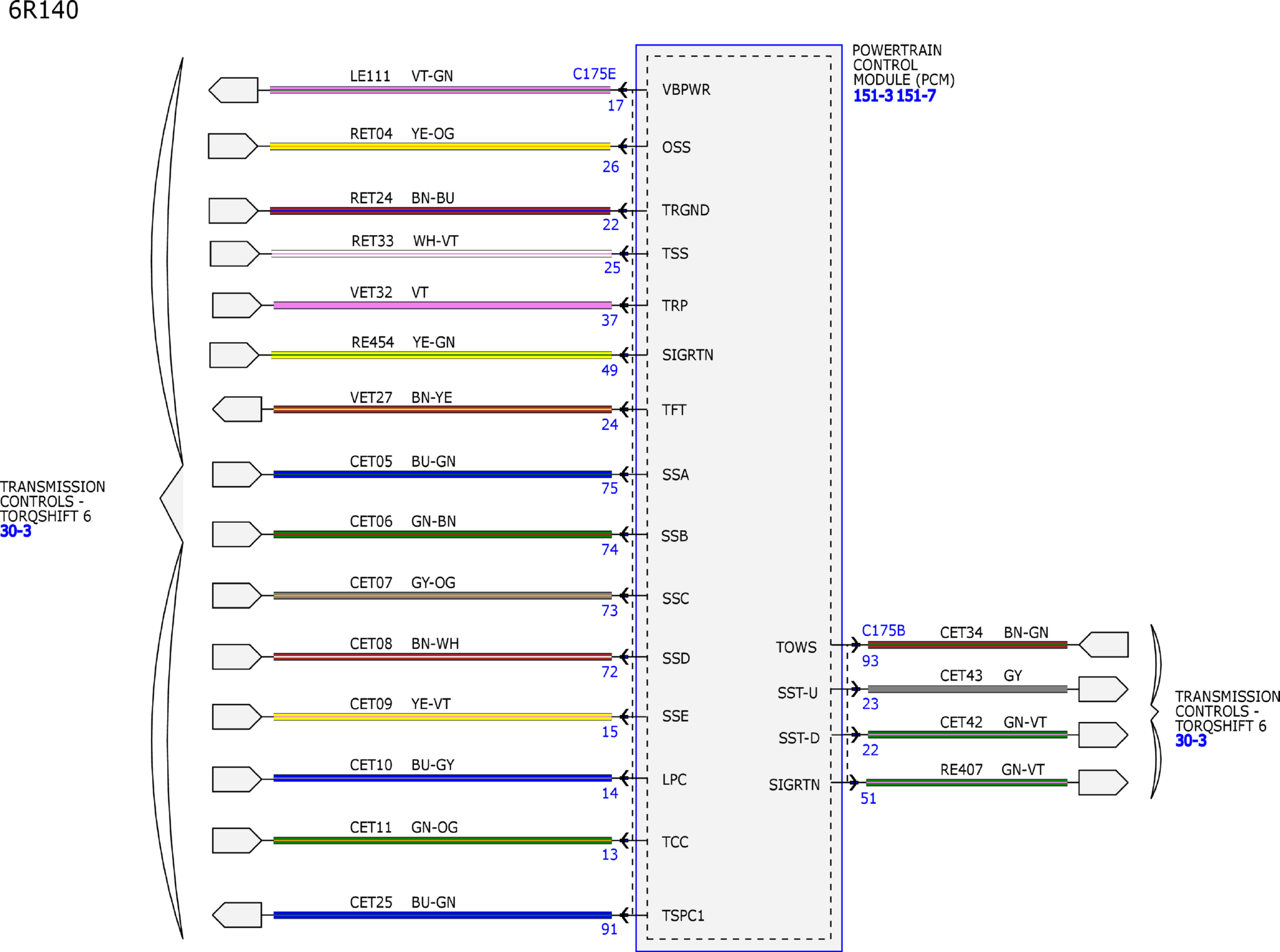

Fig 8: Electronic Engine Controls - 6.2L Wiring Diagram (8 of 17)

GFDW83308

Courtesy of FORD MOTOR COMPANY

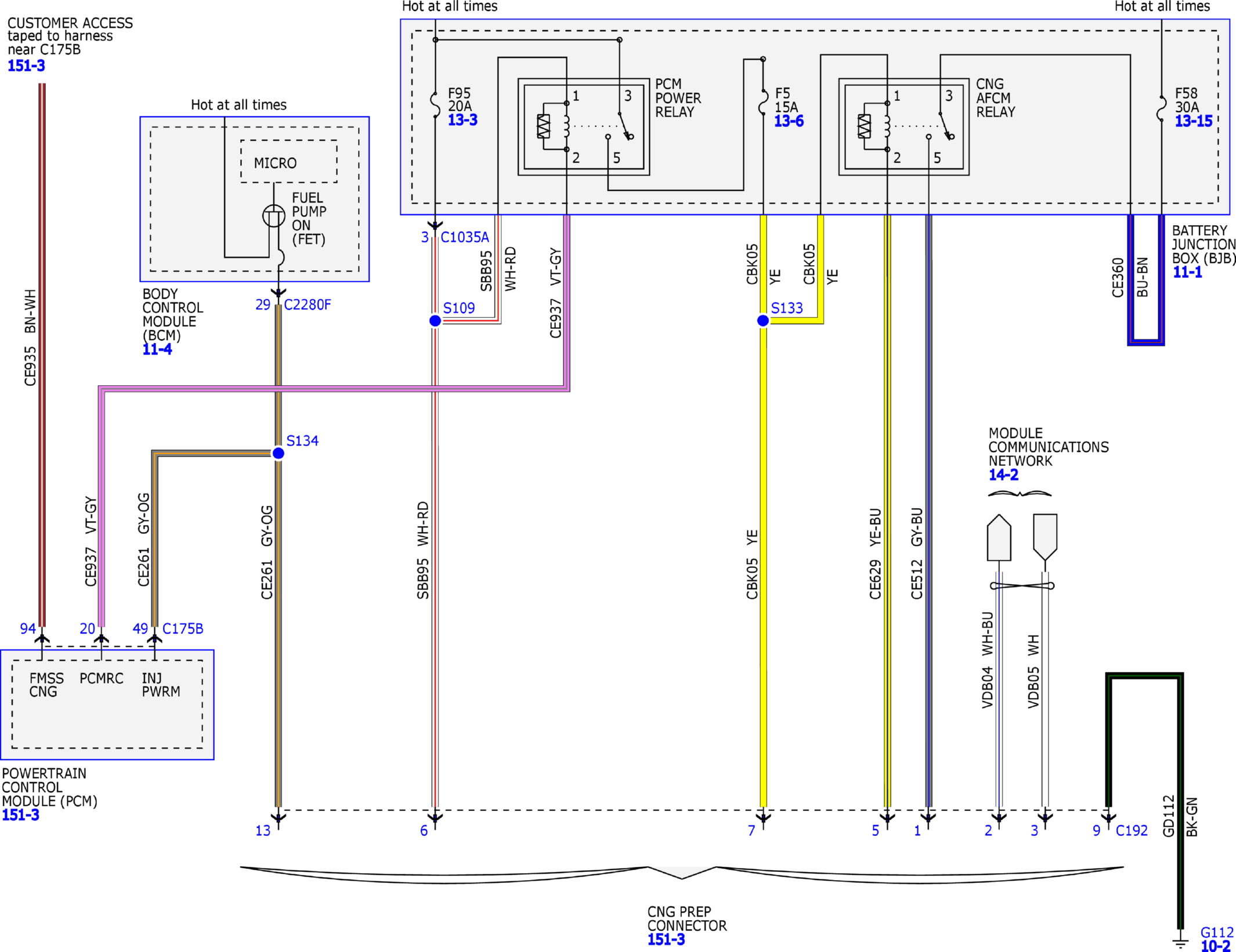

Fig 9: Electronic Engine Controls - 6.2L Wiring Diagram (9 of 17)

GFDW83309

Courtesy of FORD MOTOR COMPANY

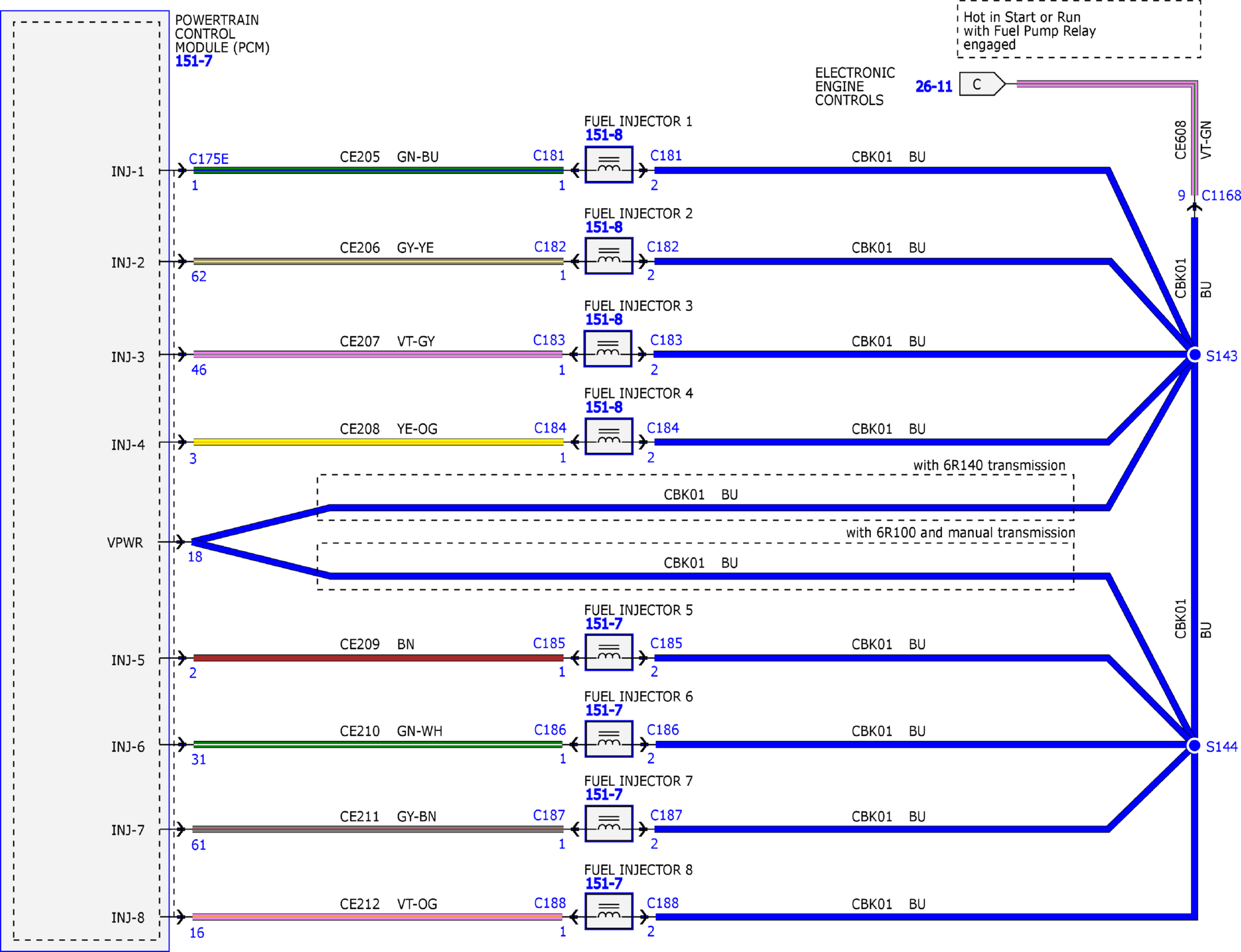

Fig 10: Electronic Engine Controls - 6.2L Wiring Diagram (10 of 17)

GFDW83310

Courtesy of FORD MOTOR COMPANY

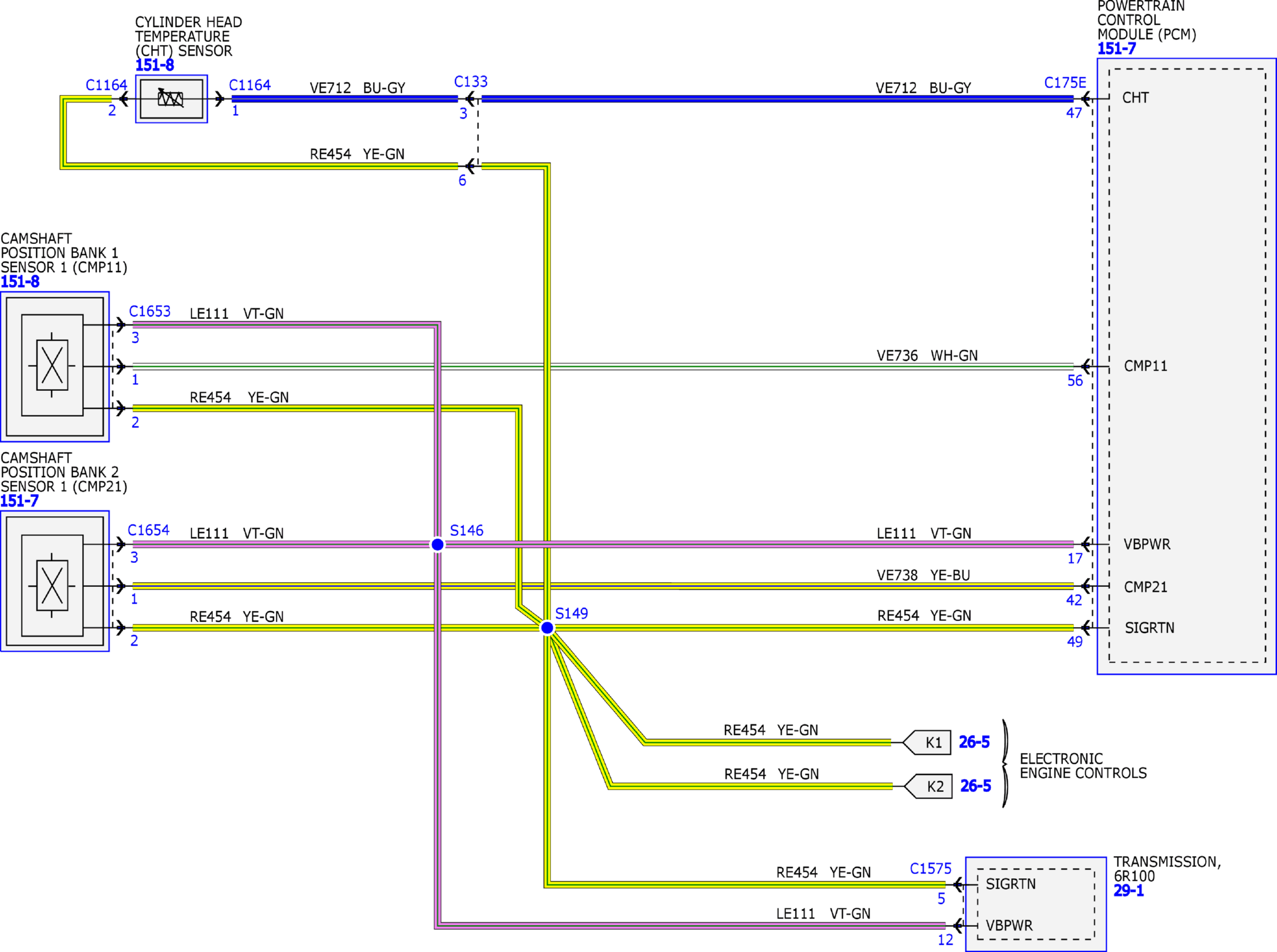

Fig 11: Electronic Engine Controls - 6.2L Wiring Diagram (11 of 17)

GFDW83311

Courtesy of FORD MOTOR COMPANY

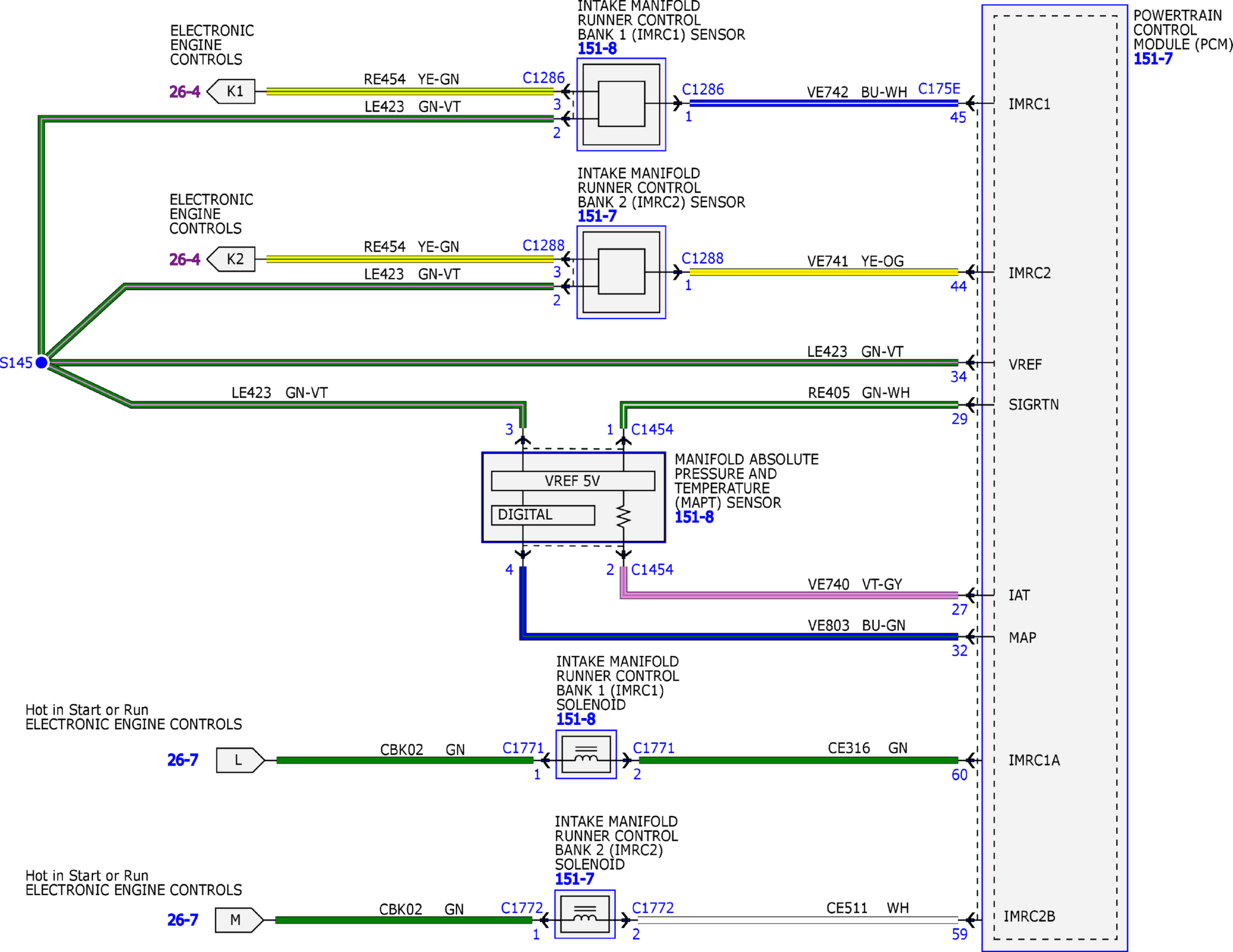

Fig 12: Electronic Engine Controls - 6.2L Wiring Diagram (12 of 17)

GFDW83312

Courtesy of FORD MOTOR COMPANY

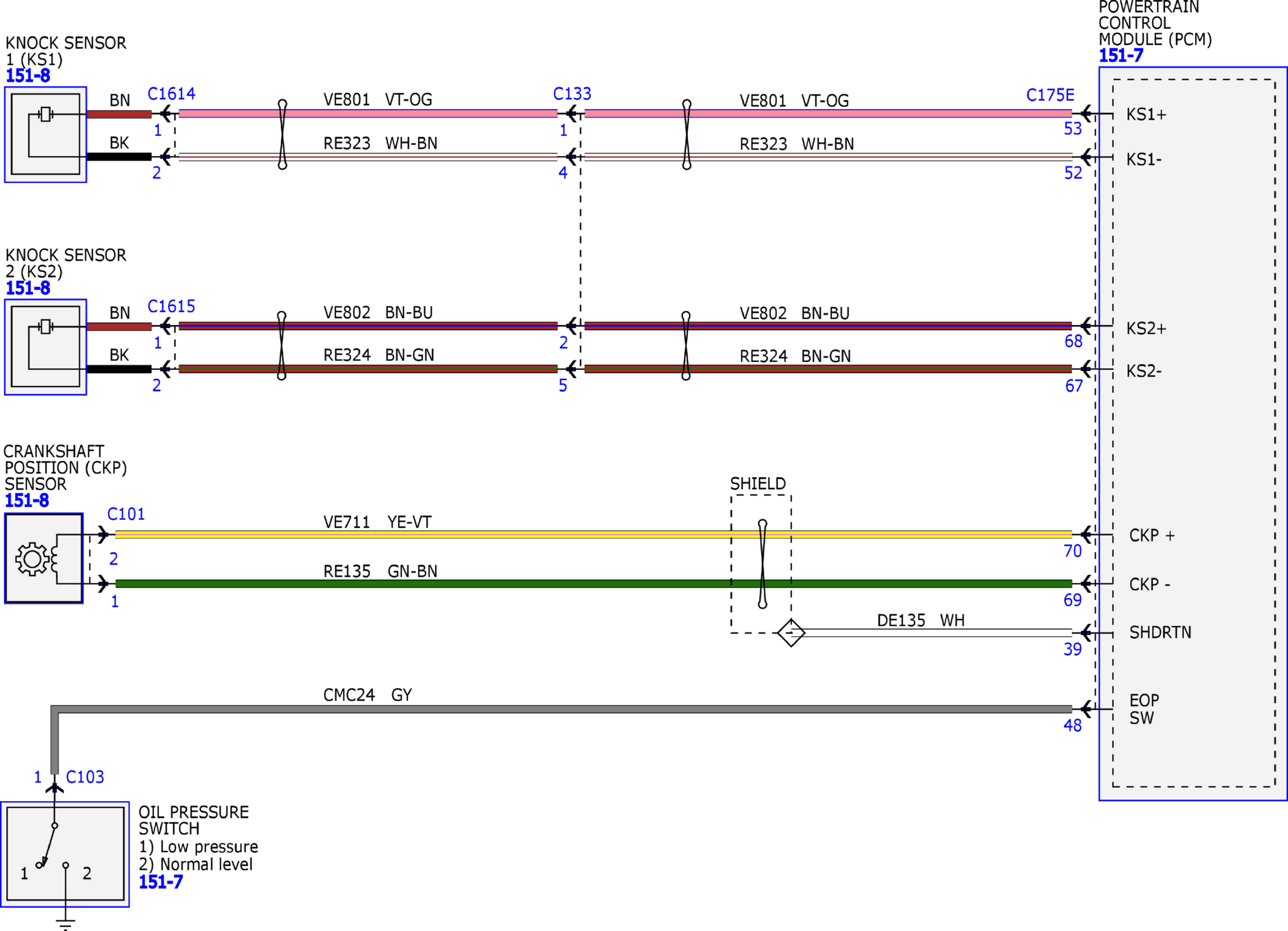

Fig 13: Electronic Engine Controls - 6.2L Wiring Diagram (13 of 17)

GFDW83313

Courtesy of FORD MOTOR COMPANY

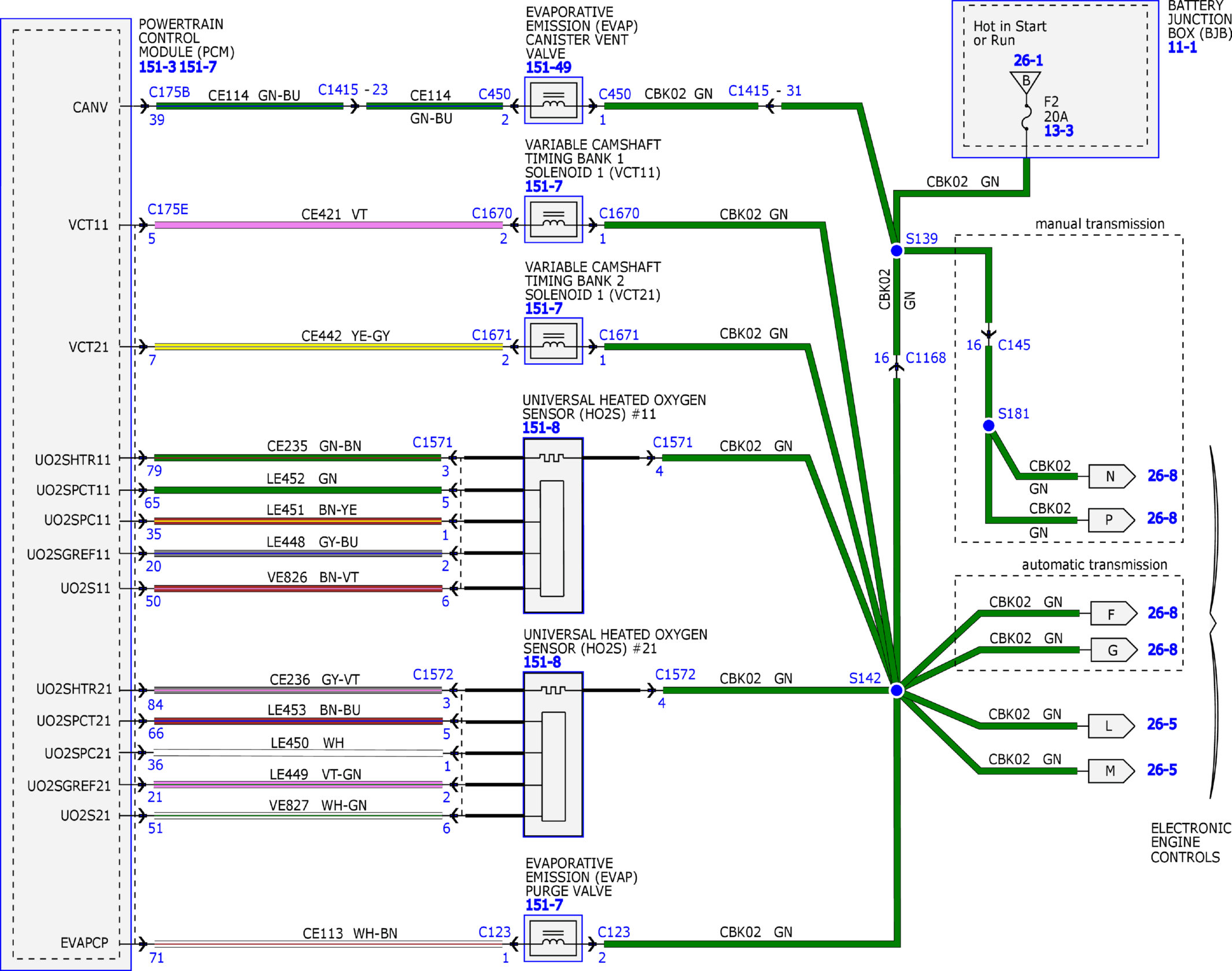

Fig 14: Electronic Engine Controls - 6.2L Wiring Diagram (14 of 17)

GFDW83314

Courtesy of FORD MOTOR COMPANY

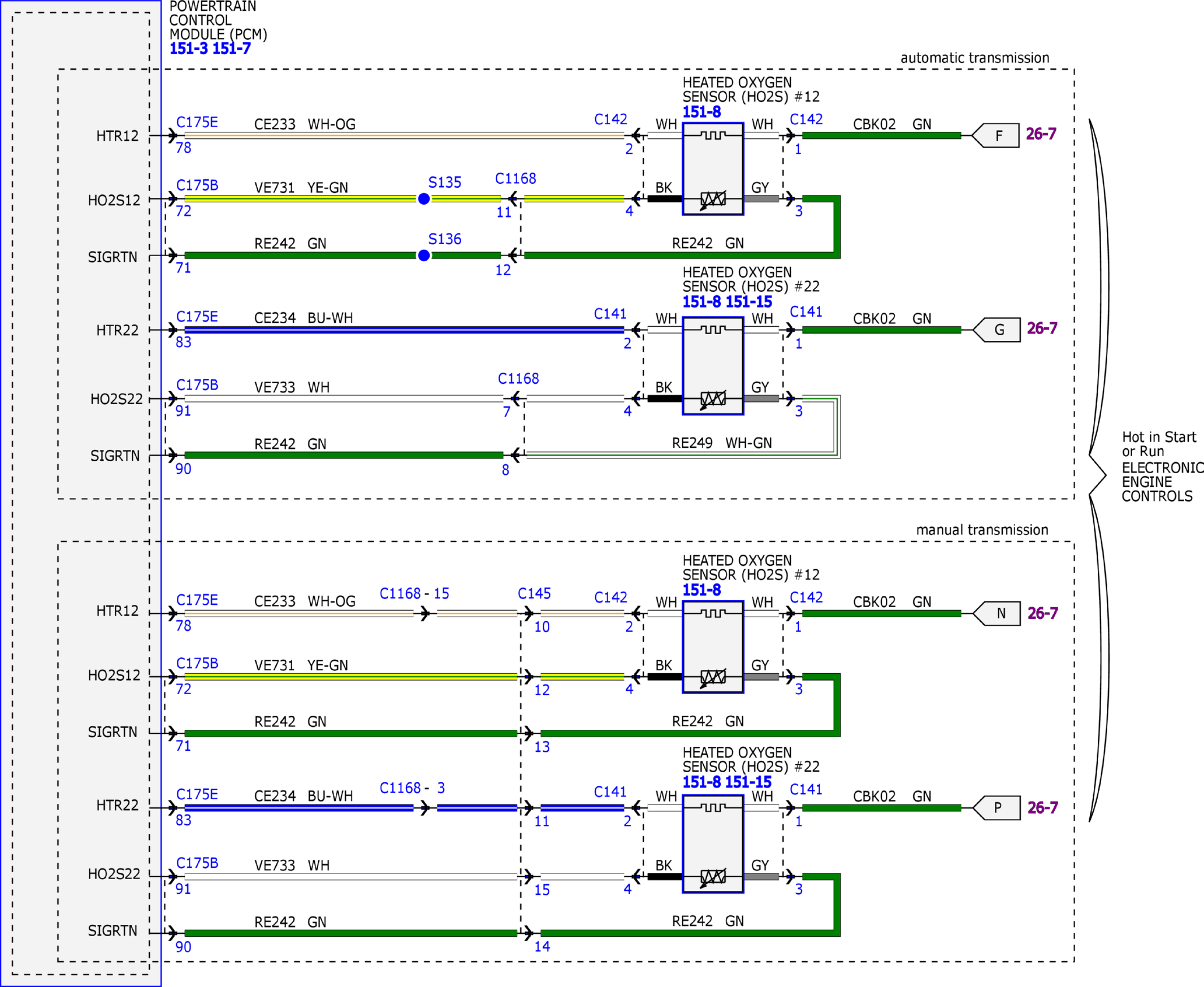

Fig 15: Electronic Engine Controls - 6.2L Wiring Diagram (15 of 17)

GFDW83315

Courtesy of FORD MOTOR COMPANY

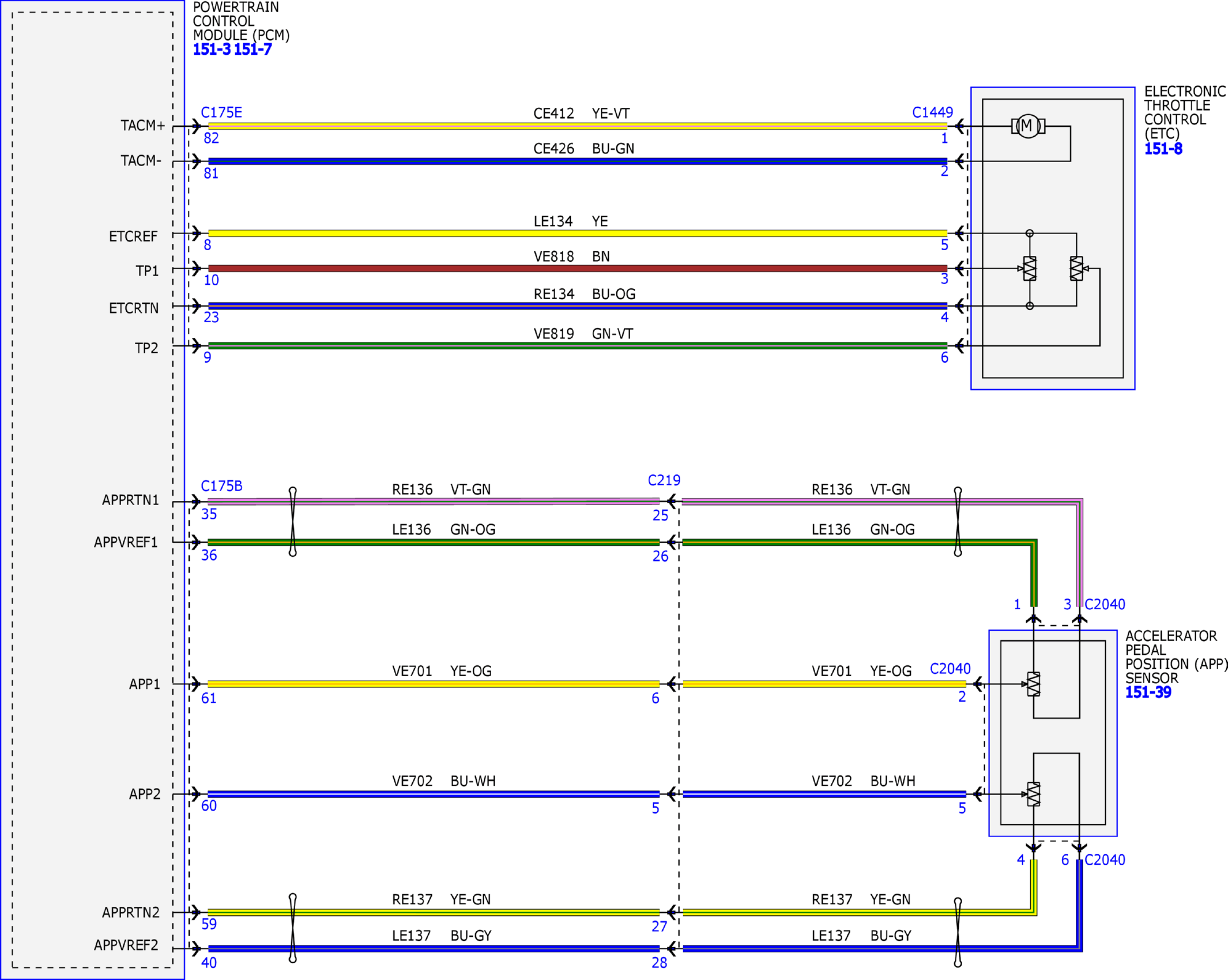

Fig 16: Electronic Engine Controls - 6.2L Wiring Diagram (16 of 17)

GFDW83316

Courtesy of FORD MOTOR COMPANY

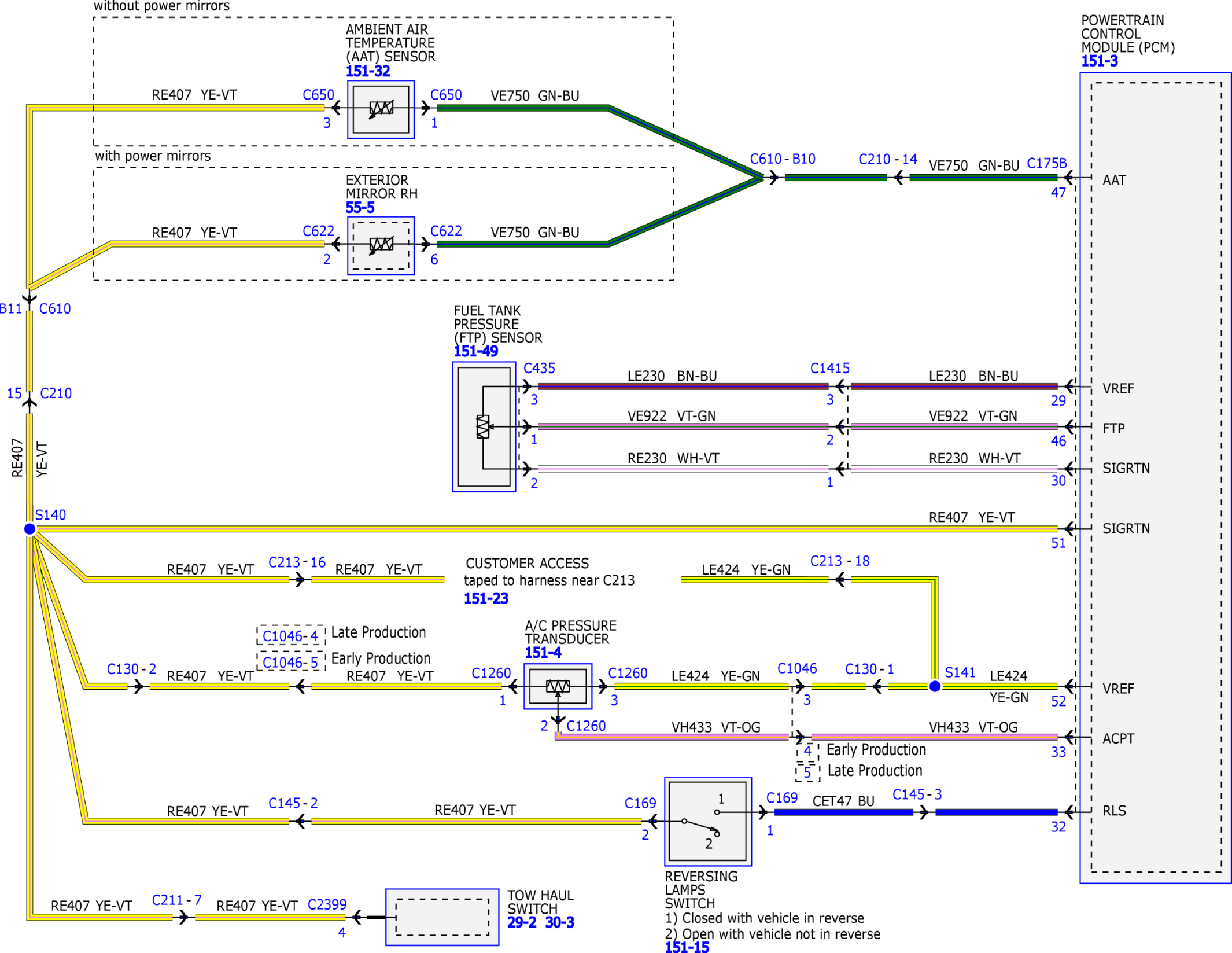

Fig 17: Electronic Engine Controls - 6.2L Wiring Diagram (17 of 17)

GFDW83317

Courtesy of FORD MOTOR COMPANY
