Customer Access

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

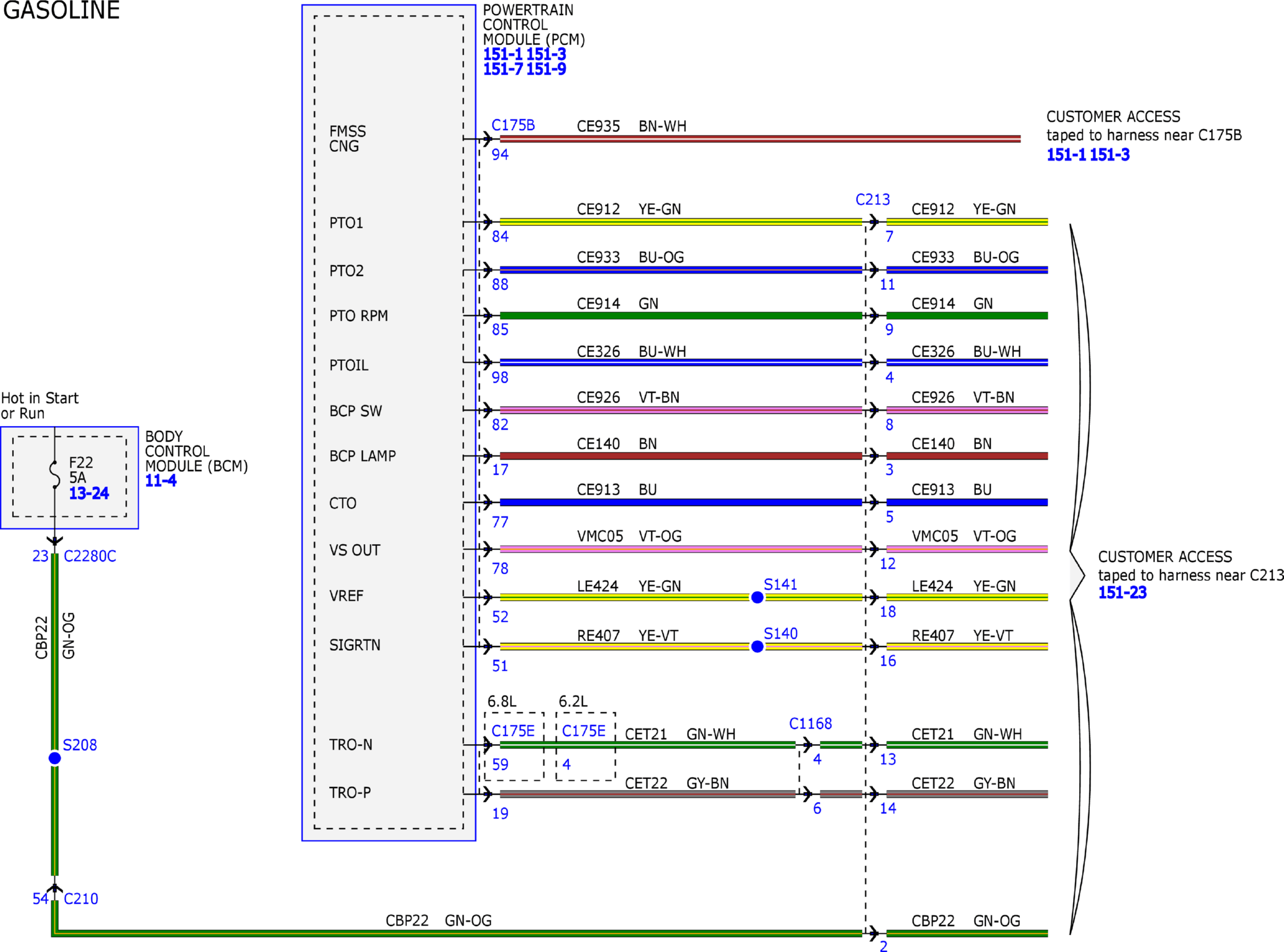

Fig 1: Customer Access Wiring Diagram (1 of 14)

GFDW83287

Courtesy of FORD MOTOR COMPANY

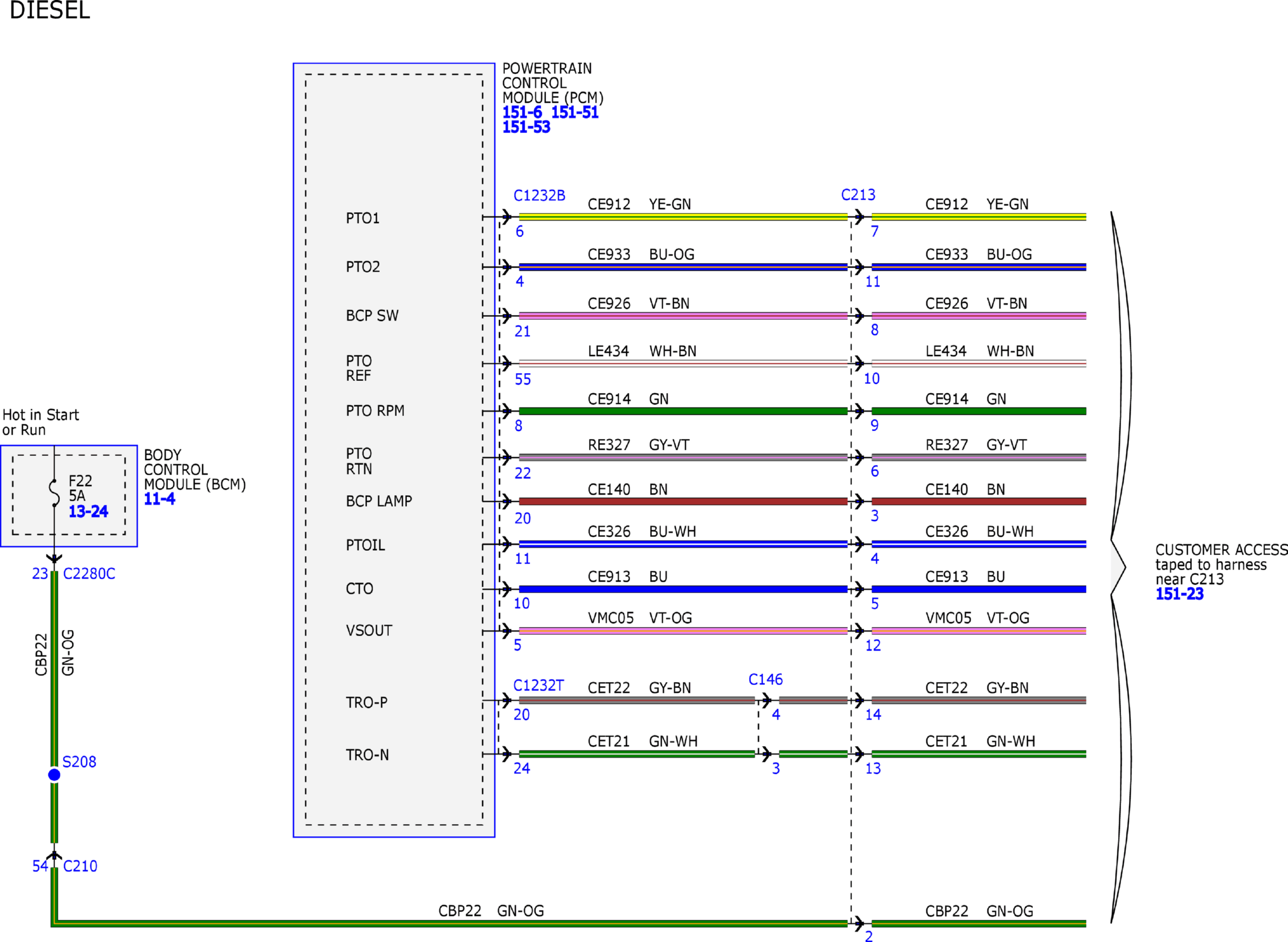

Fig 2: Customer Access Wiring Diagram (2 of 14)

GFDW83288

Courtesy of FORD MOTOR COMPANY

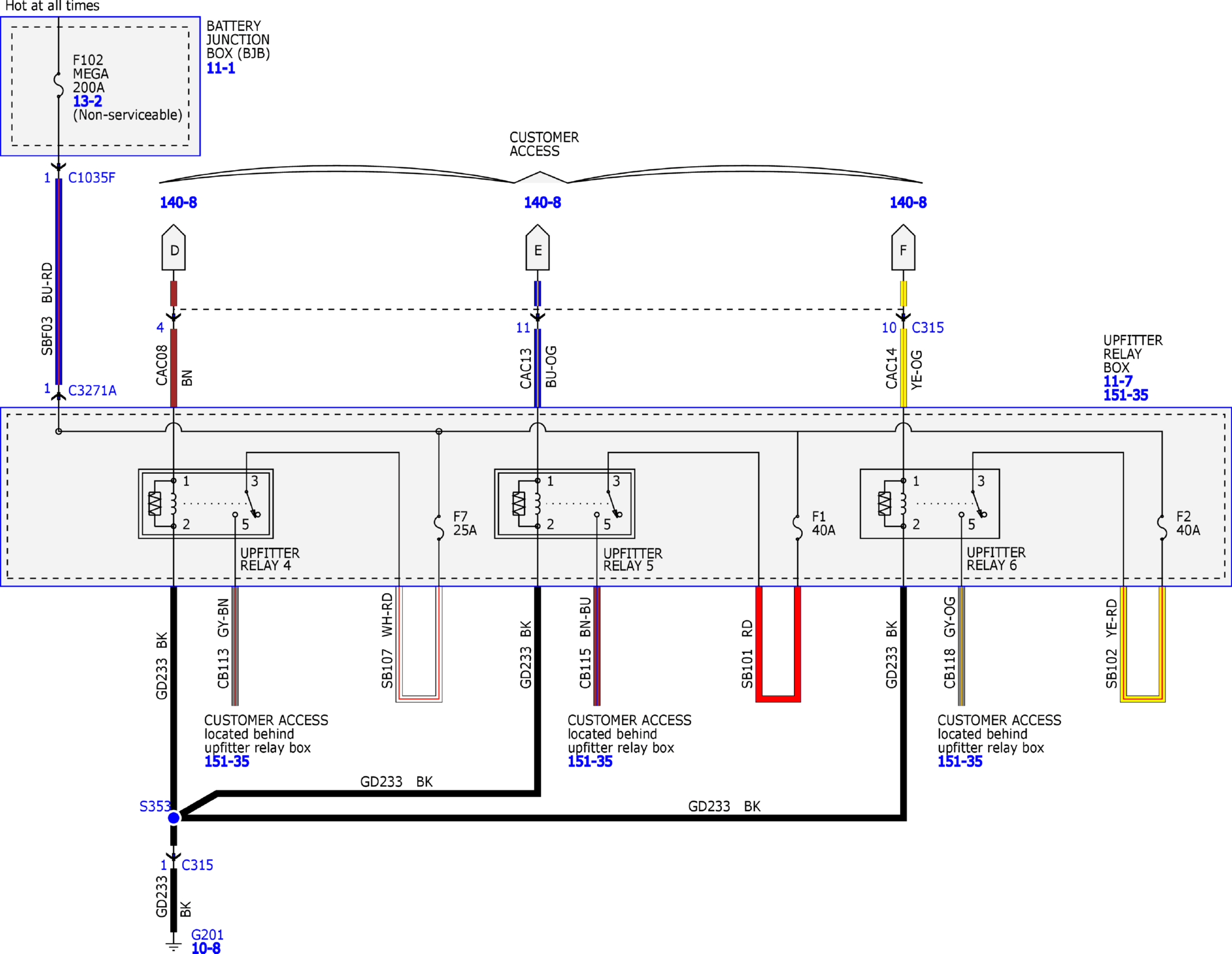

Fig 3: Customer Access Wiring Diagram (3 of 14)

GFDW83289

Courtesy of FORD MOTOR COMPANY

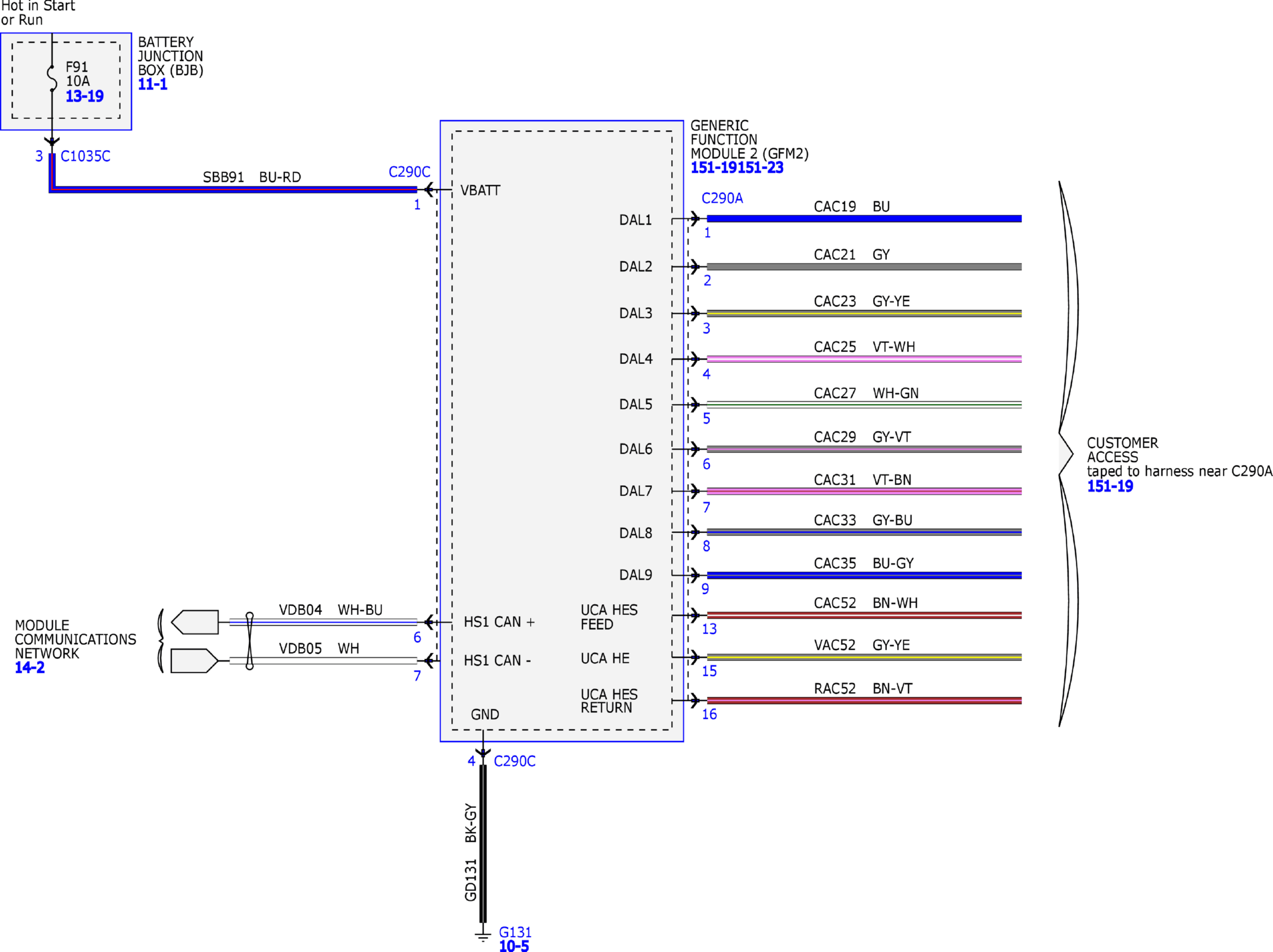

Fig 4: Customer Access Wiring Diagram (4 of 14)

GFDW83290

Courtesy of FORD MOTOR COMPANY

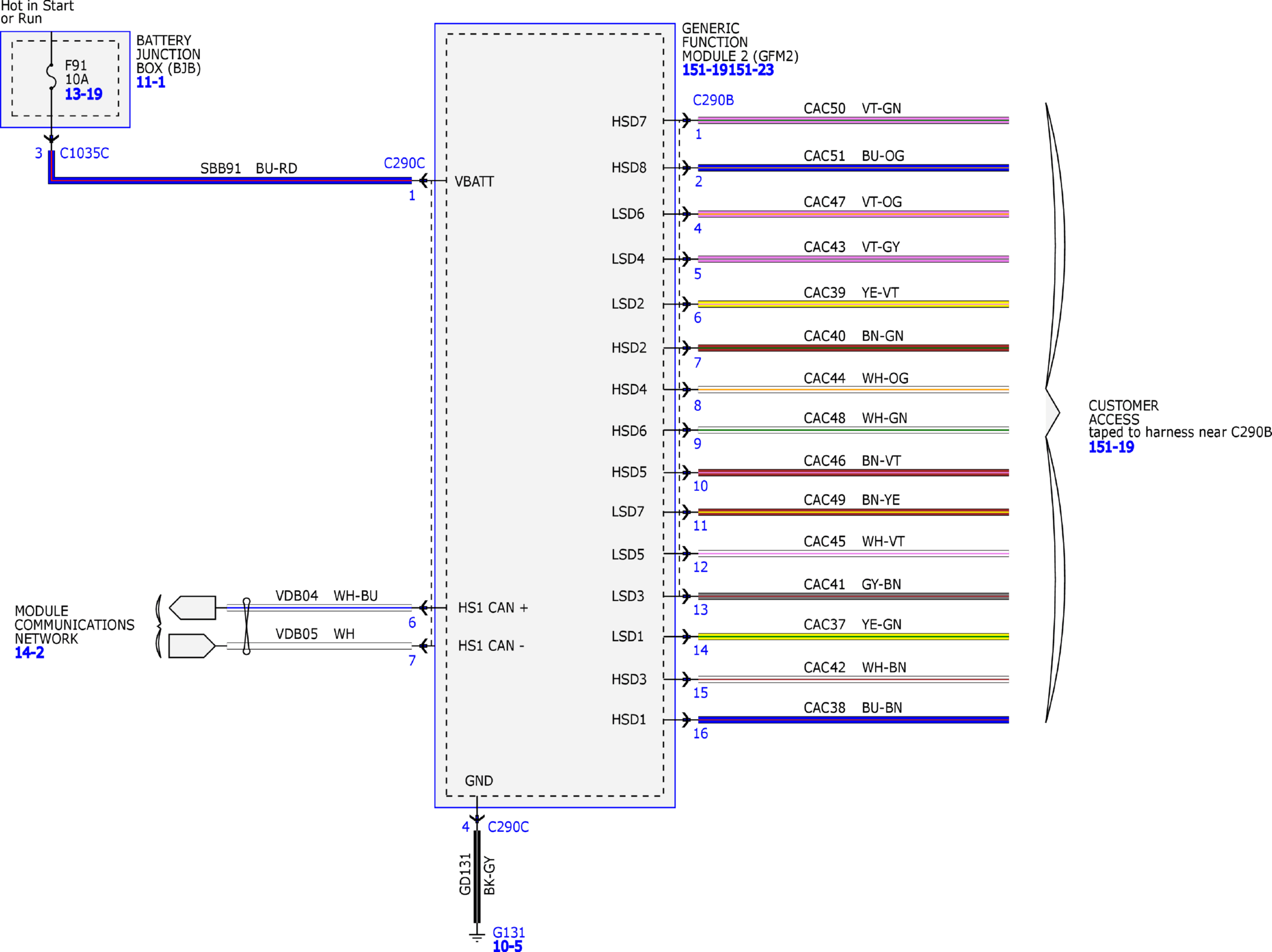

Fig 5: Customer Access Wiring Diagram (5 of 14)

GFDW83291

Courtesy of FORD MOTOR COMPANY

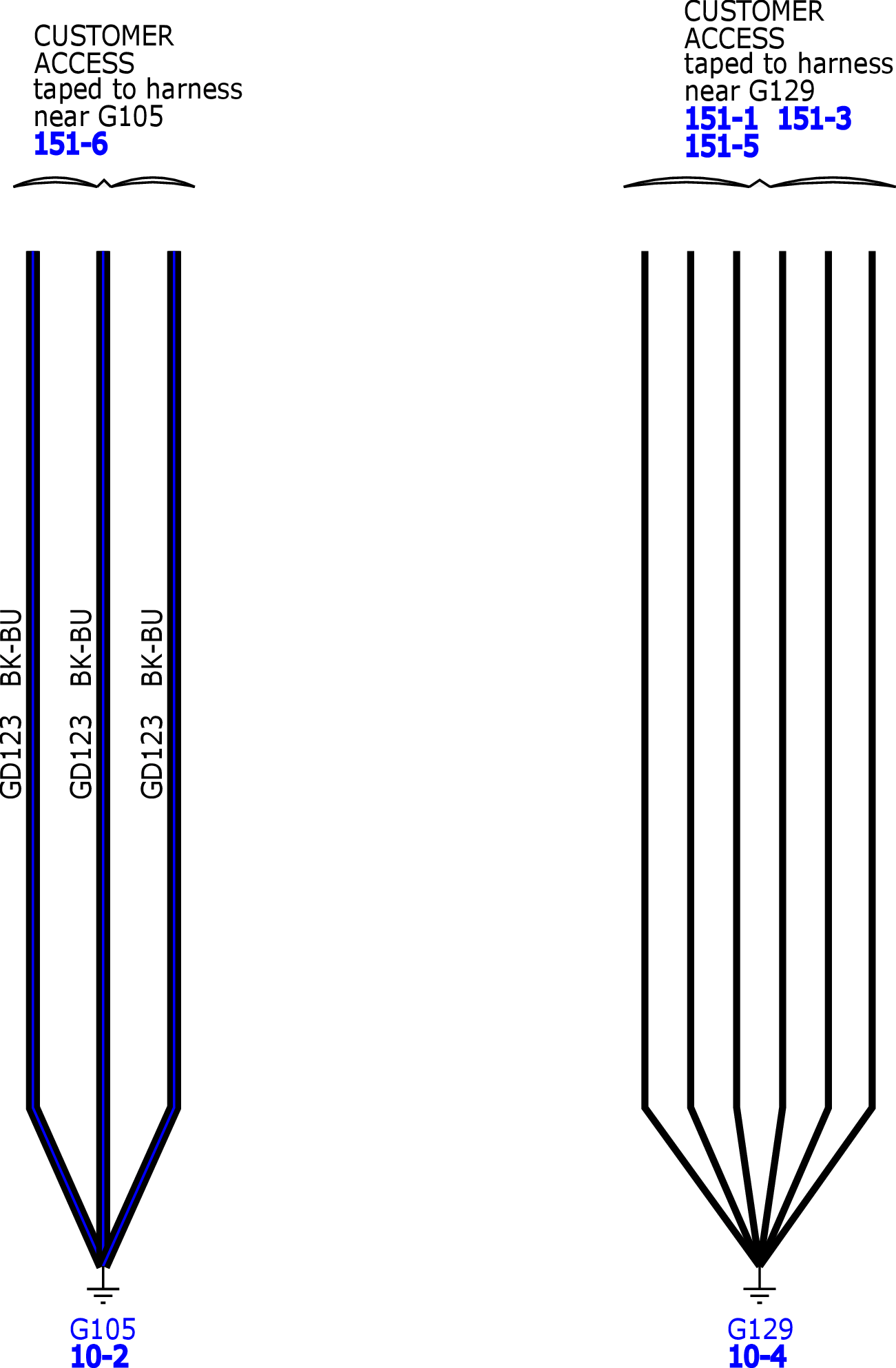

Fig 6: Customer Access Wiring Diagram (6 of 14)

GFDW83292

Courtesy of FORD MOTOR COMPANY

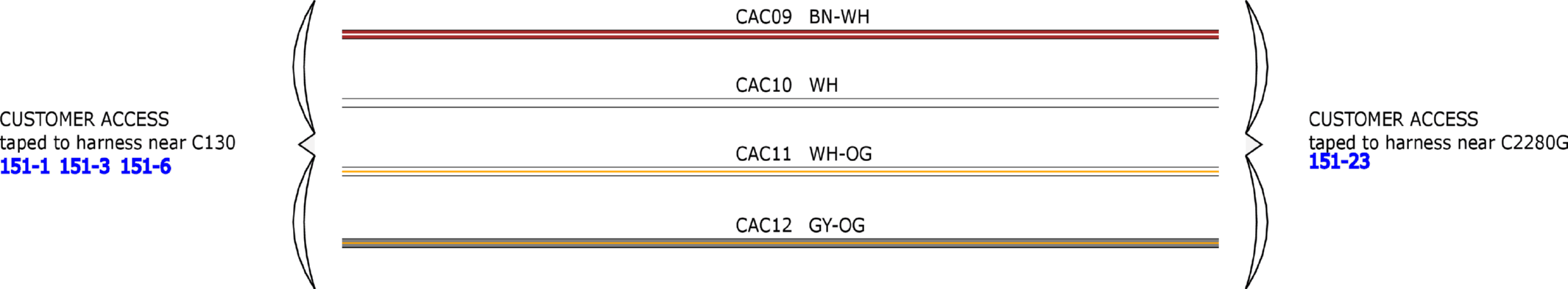

Fig 7: Customer Access Wiring Diagram (7 of 14)

GFDW83293

Courtesy of FORD MOTOR COMPANY

Fig 8: Customer Access Wiring Diagram (8 of 14)

GFDW83294

Courtesy of FORD MOTOR COMPANY

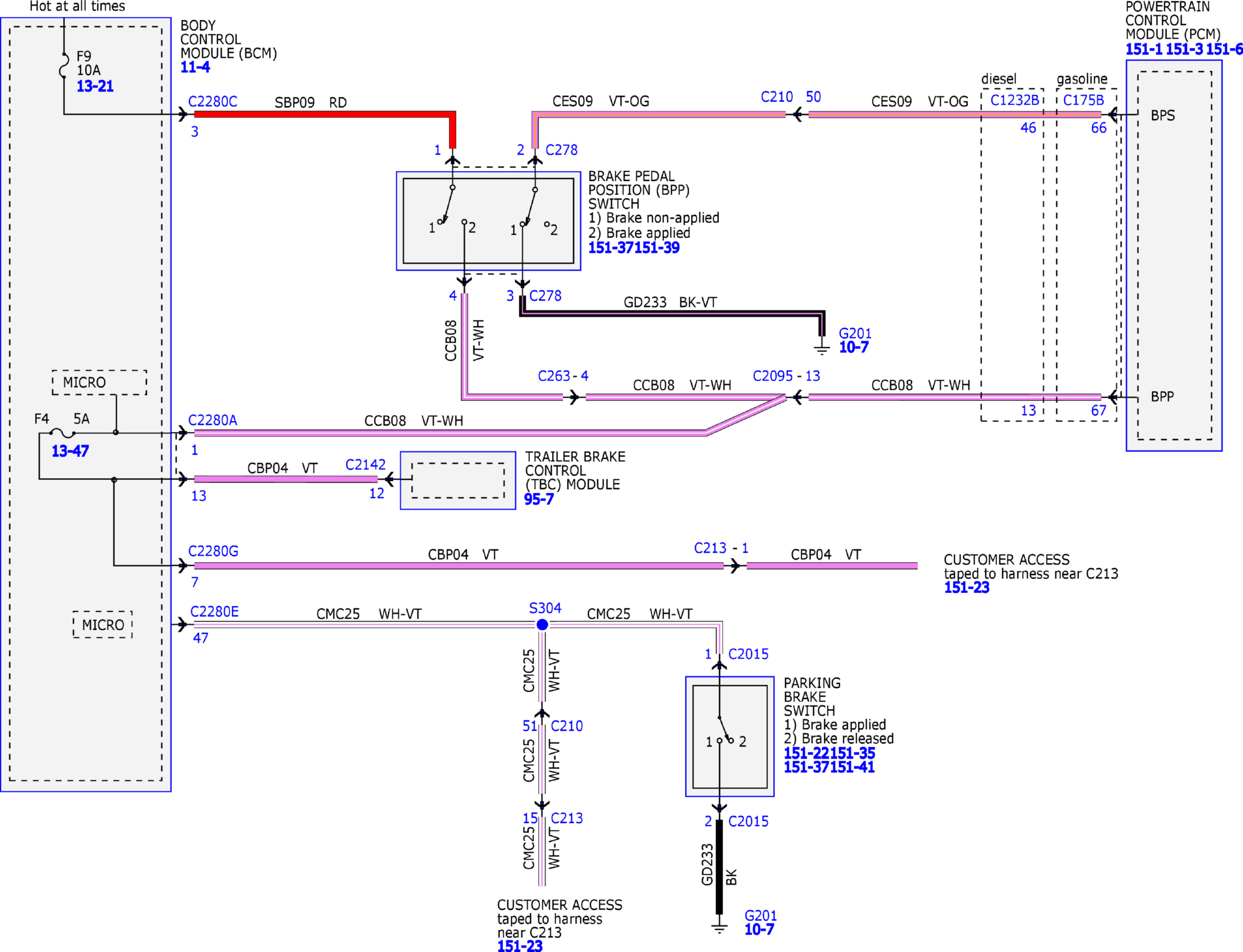

Fig 9: Customer Access Wiring Diagram (9 of 14)

GFDW83295

Courtesy of FORD MOTOR COMPANY

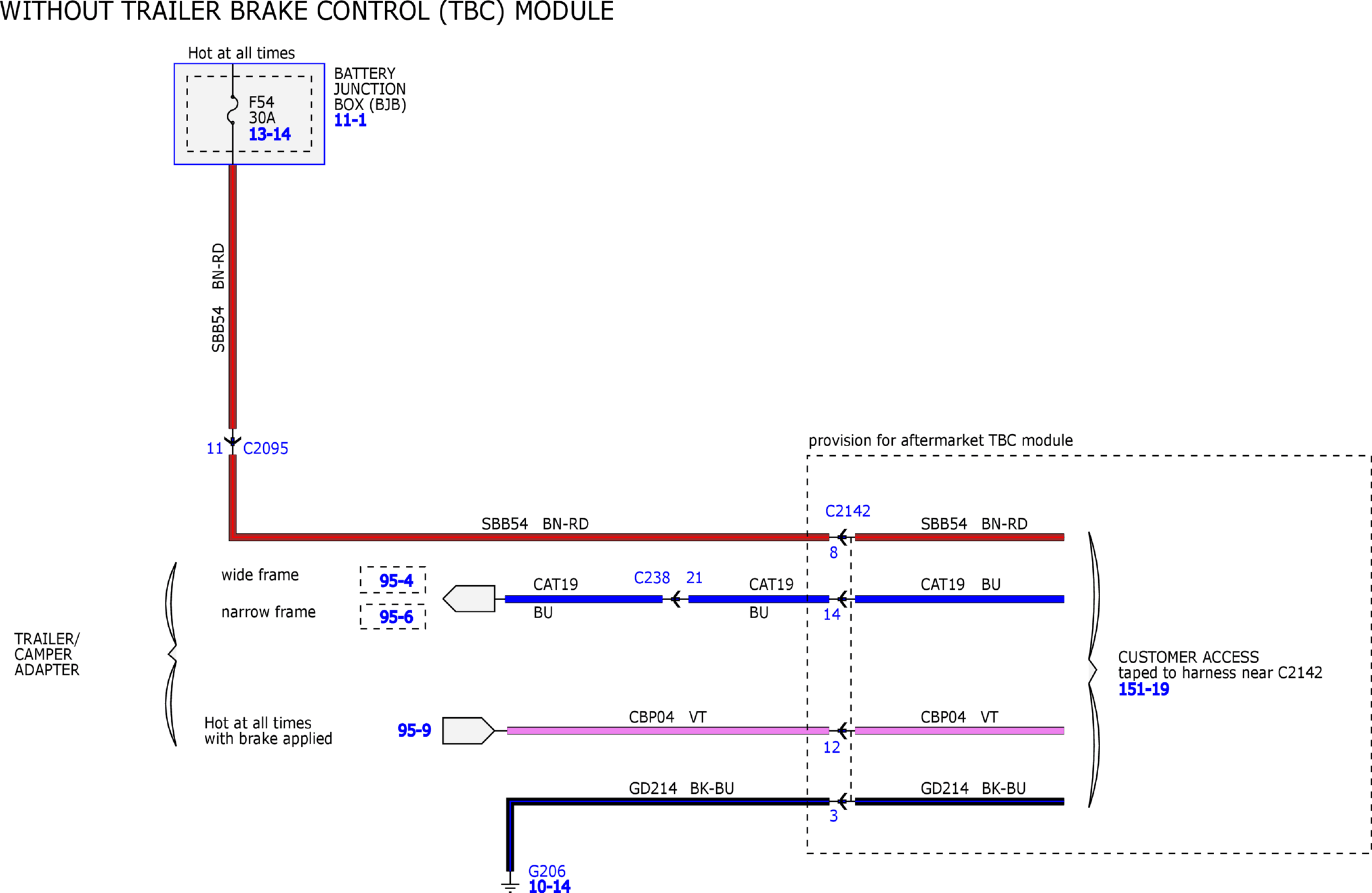

Fig 10: Customer Access Wiring Diagram (10 of 14)

GFDW83296

Courtesy of FORD MOTOR COMPANY

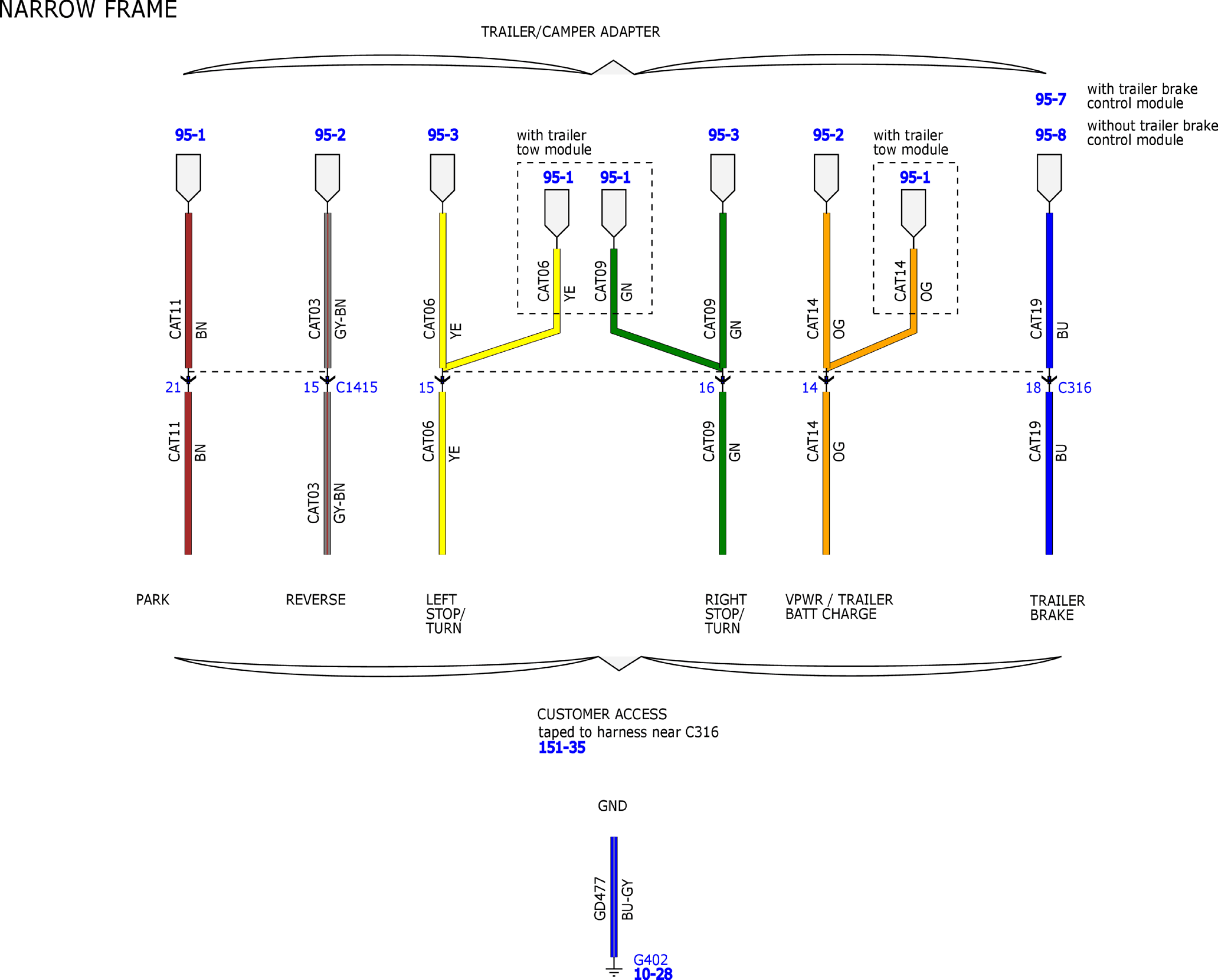

Fig 11: Customer Access Wiring Diagram (11 of 14)

GFDW83297

Courtesy of FORD MOTOR COMPANY

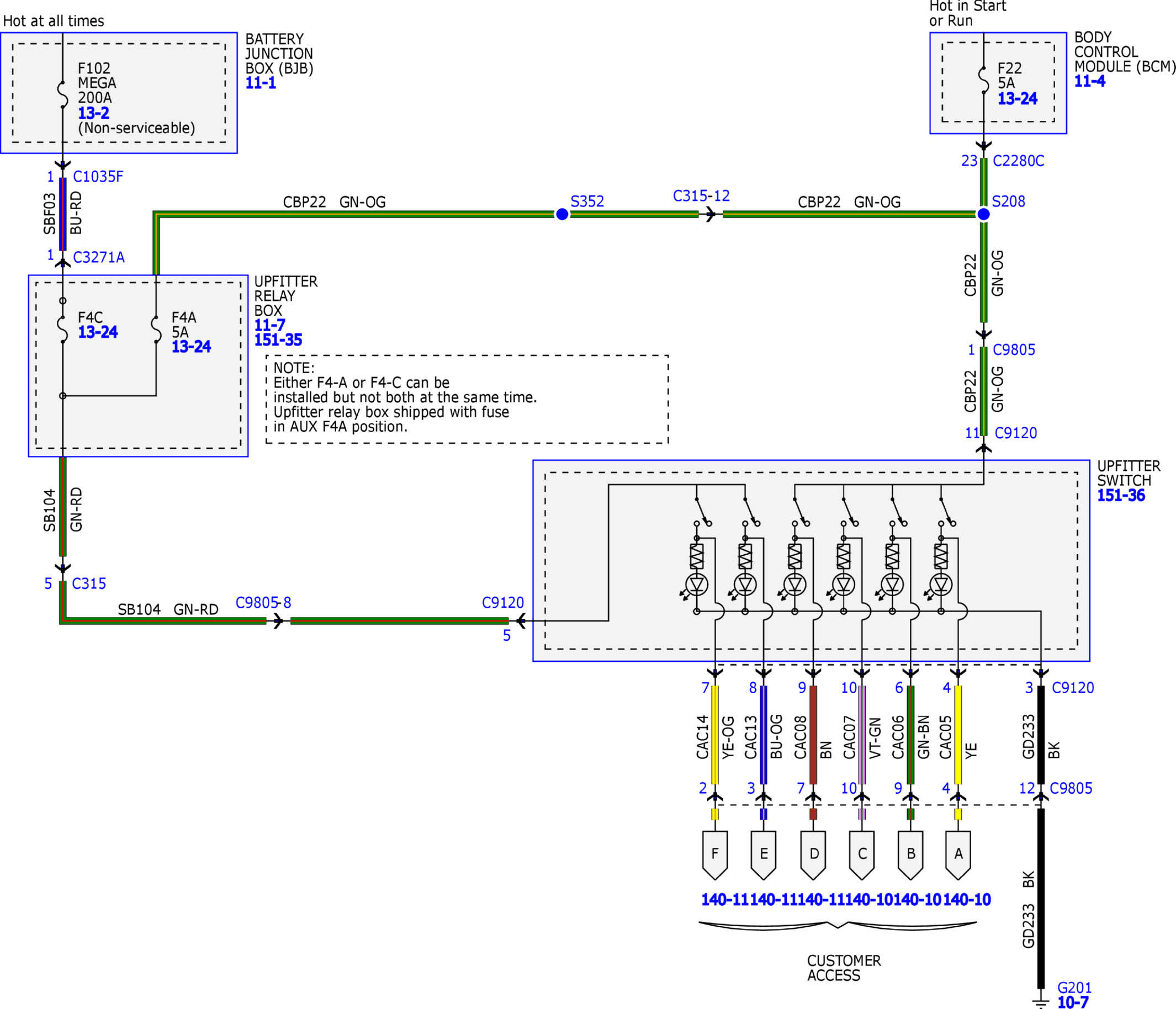

Fig 12: Customer Access Wiring Diagram (12 of 14)

GFDW83298

Courtesy of FORD MOTOR COMPANY

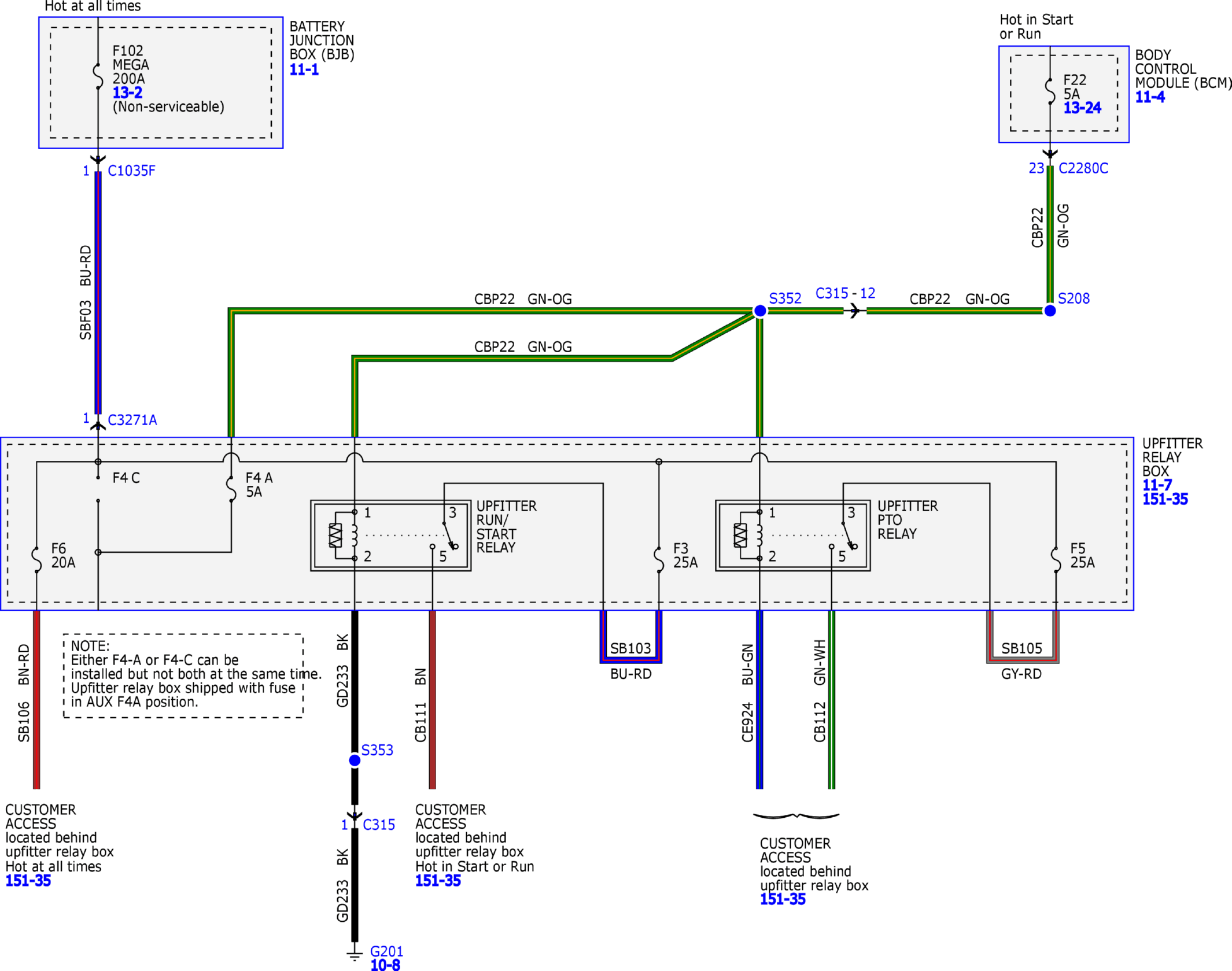

Fig 13: Customer Access Wiring Diagram (13 of 14)

GFDW83299

Courtesy of FORD MOTOR COMPANY

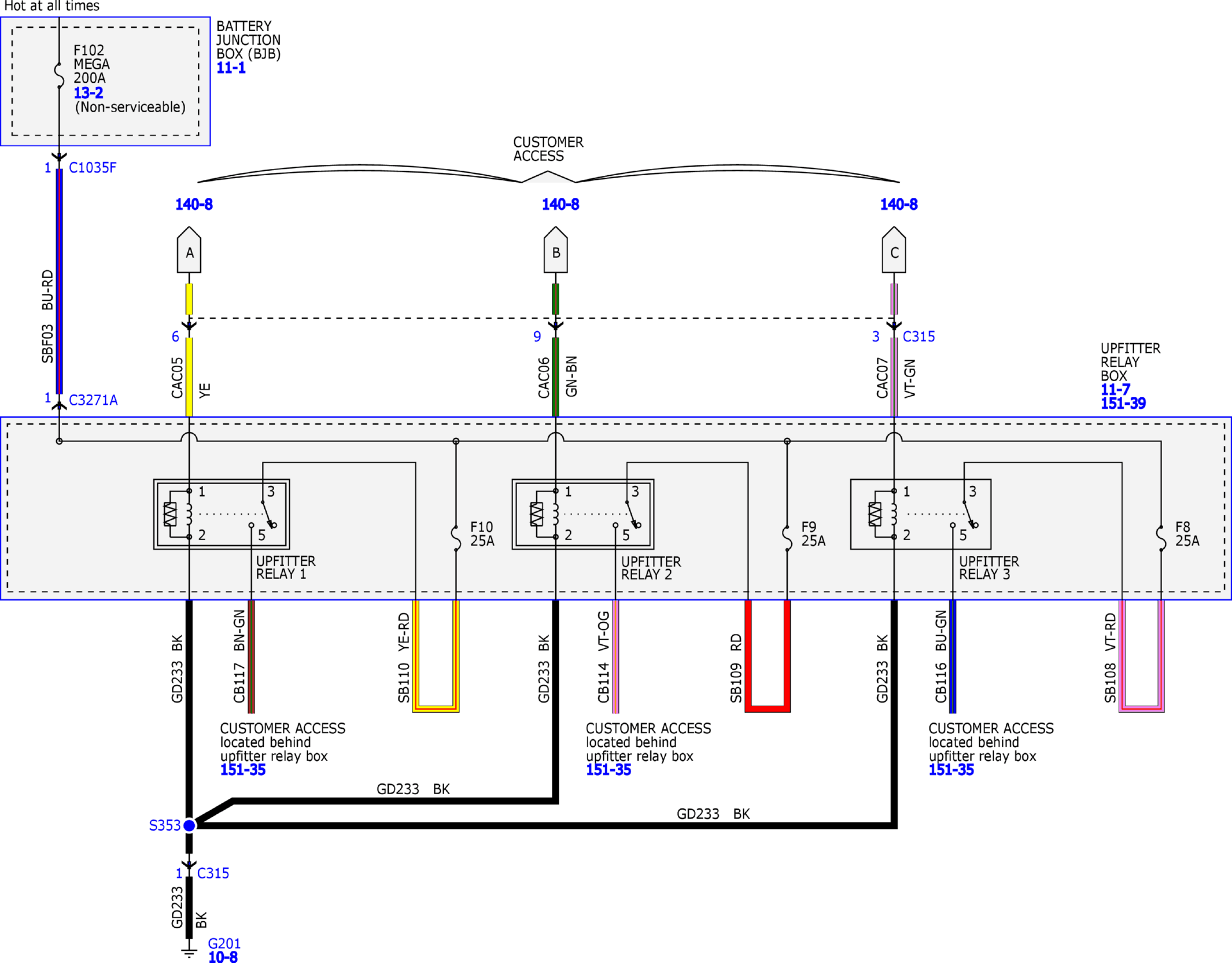

Fig 14: Customer Access Wiring Diagram (14 of 14)

GFDW83300

Courtesy of FORD MOTOR COMPANY
