Cluster And Panel Illumination

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

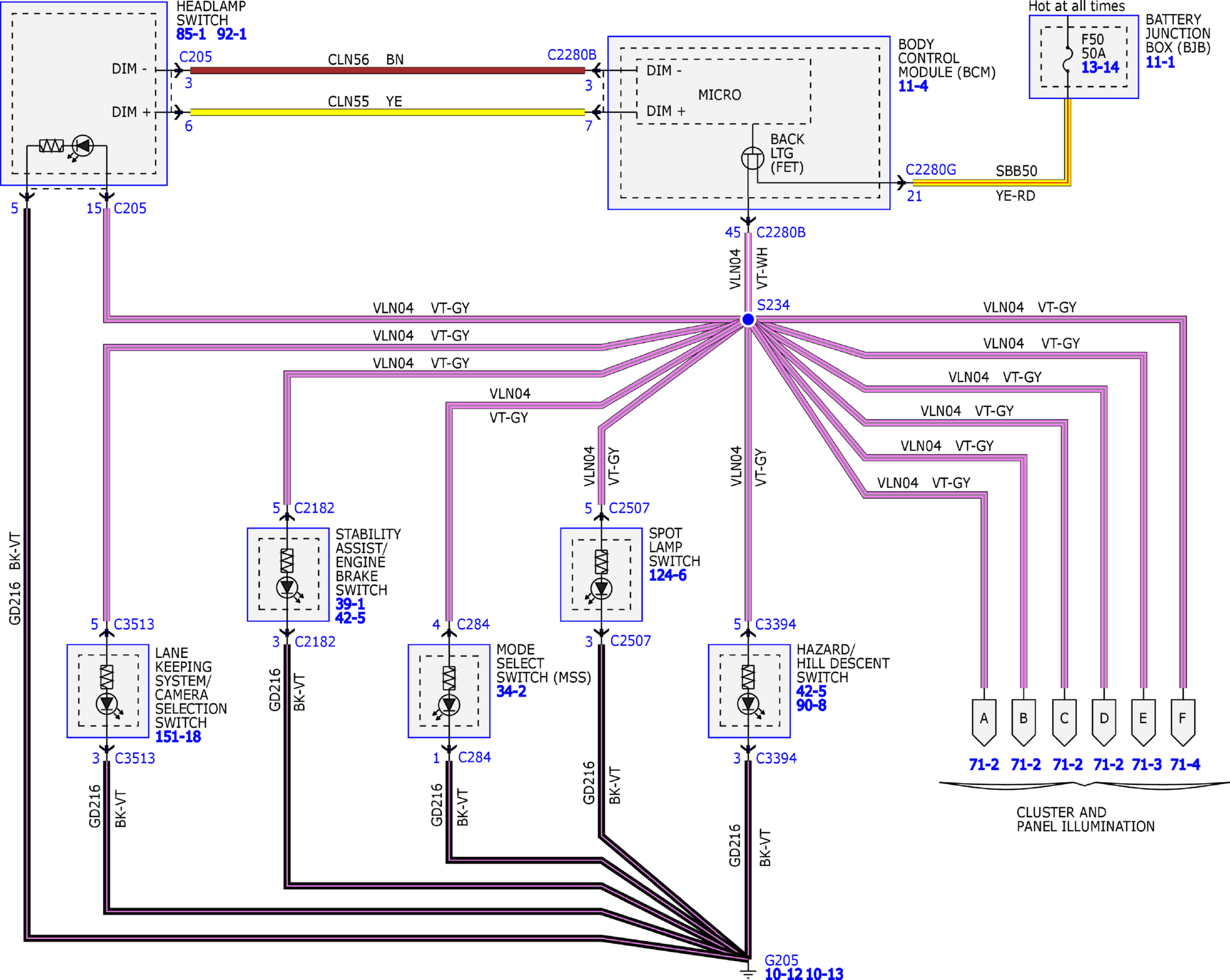

Fig 1: Cluster and Panel Illumination Wiring Diagram (1 of 4)

Courtesy of FORD MOTOR COMPANY

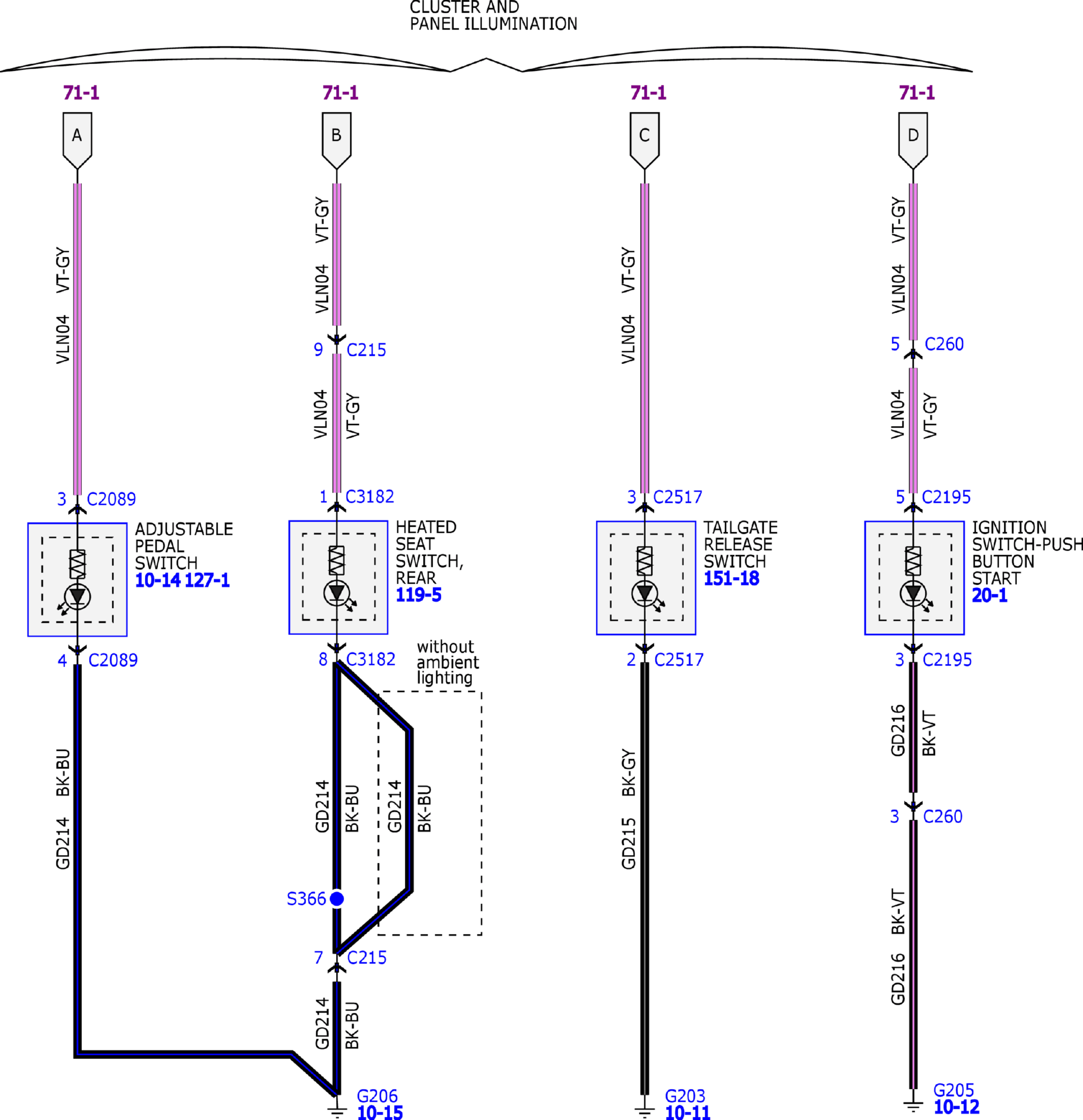

Fig 2: Cluster and Panel Illumination Wiring Diagram (2 of 4)

Courtesy of FORD MOTOR COMPANY

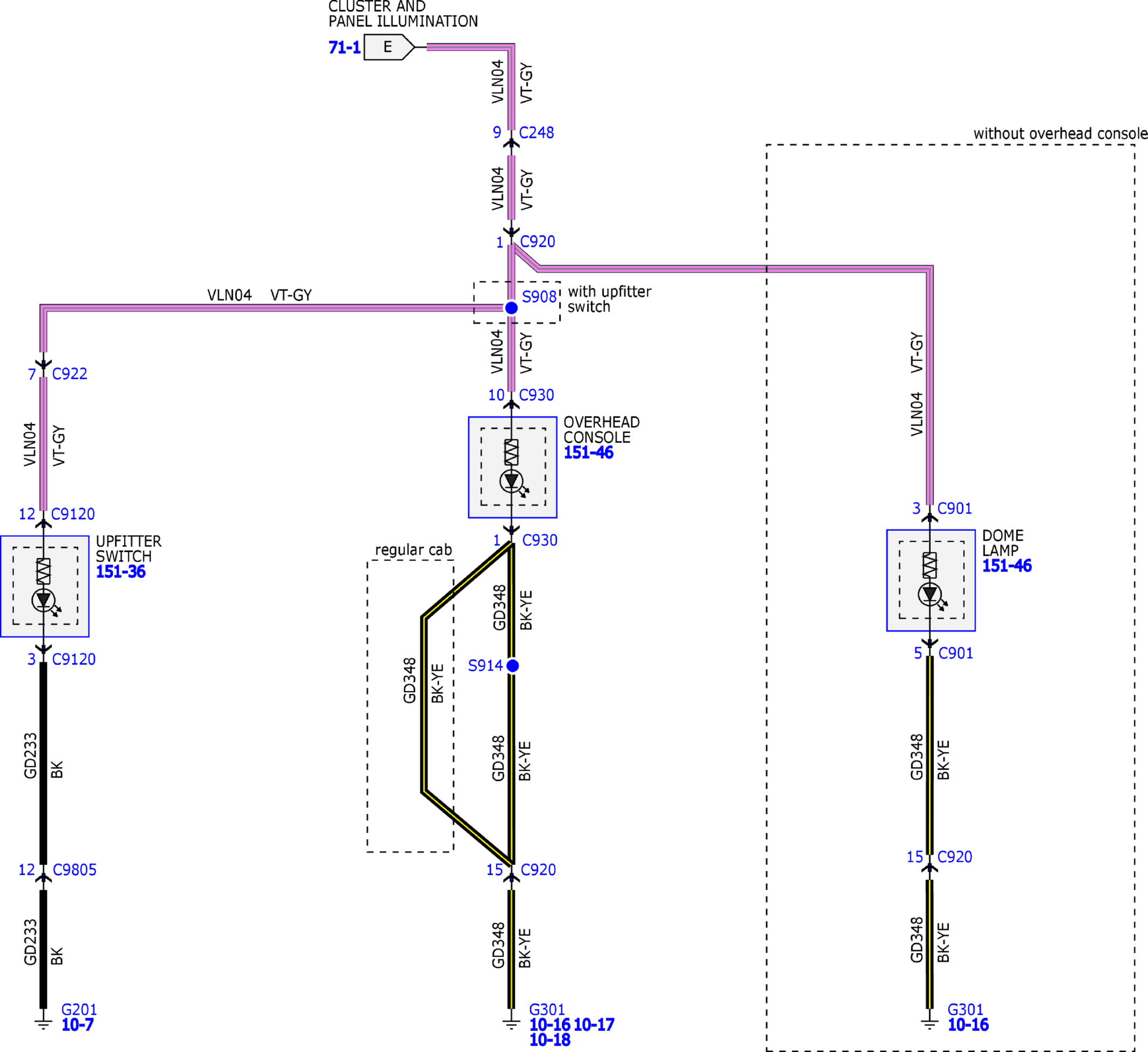

Fig 3: Cluster and Panel Illumination Wiring Diagram (3 of 4)

Courtesy of FORD MOTOR COMPANY

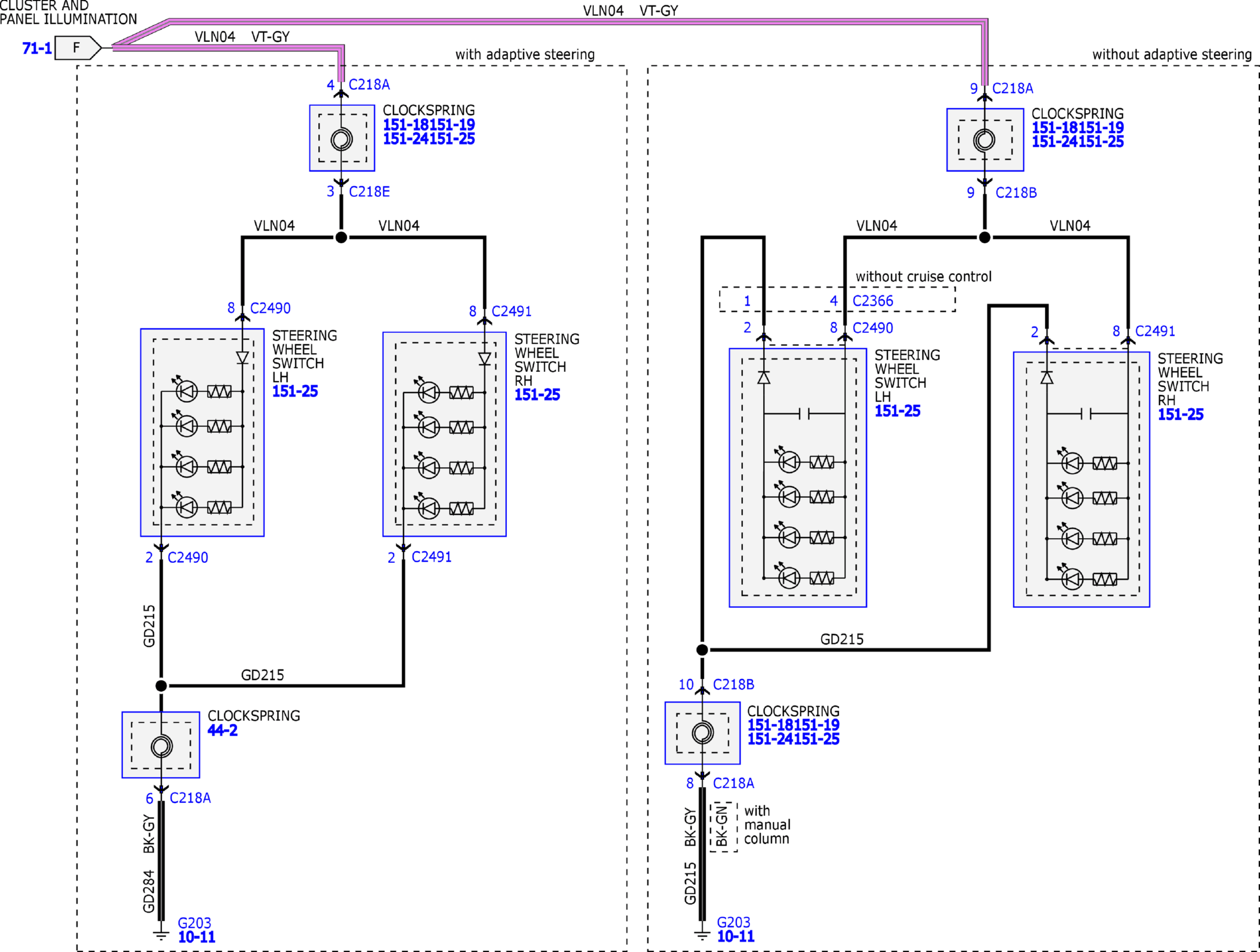

Fig 4: Cluster and Panel Illumination Wiring Diagram (4 of 4)

Courtesy of FORD MOTOR COMPANY
