Climate Controlled Seats

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

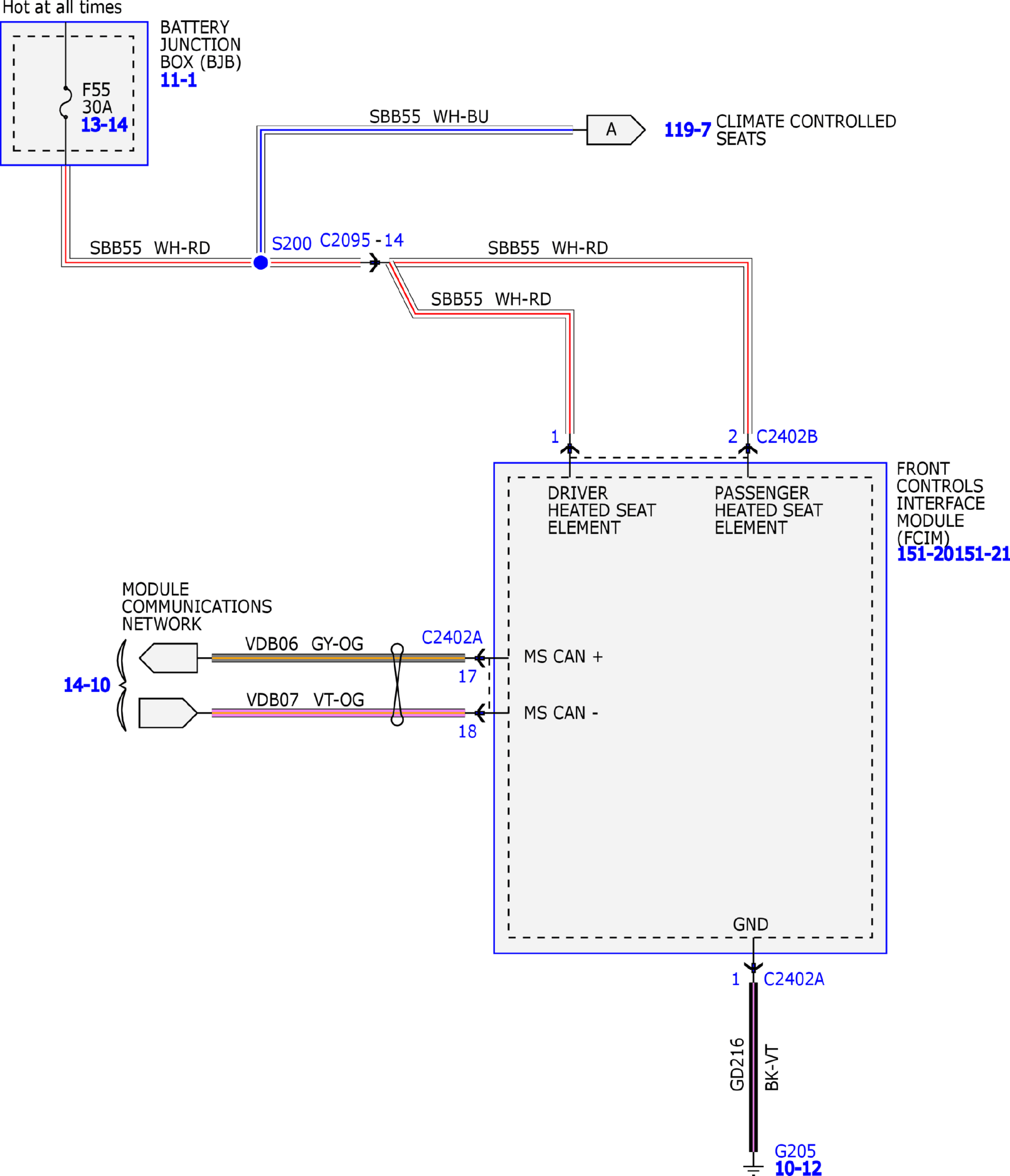

Fig 1: Climate Controlled Seats Wiring Diagram (1 of 9)

GFDW83264

Courtesy of FORD MOTOR COMPANY

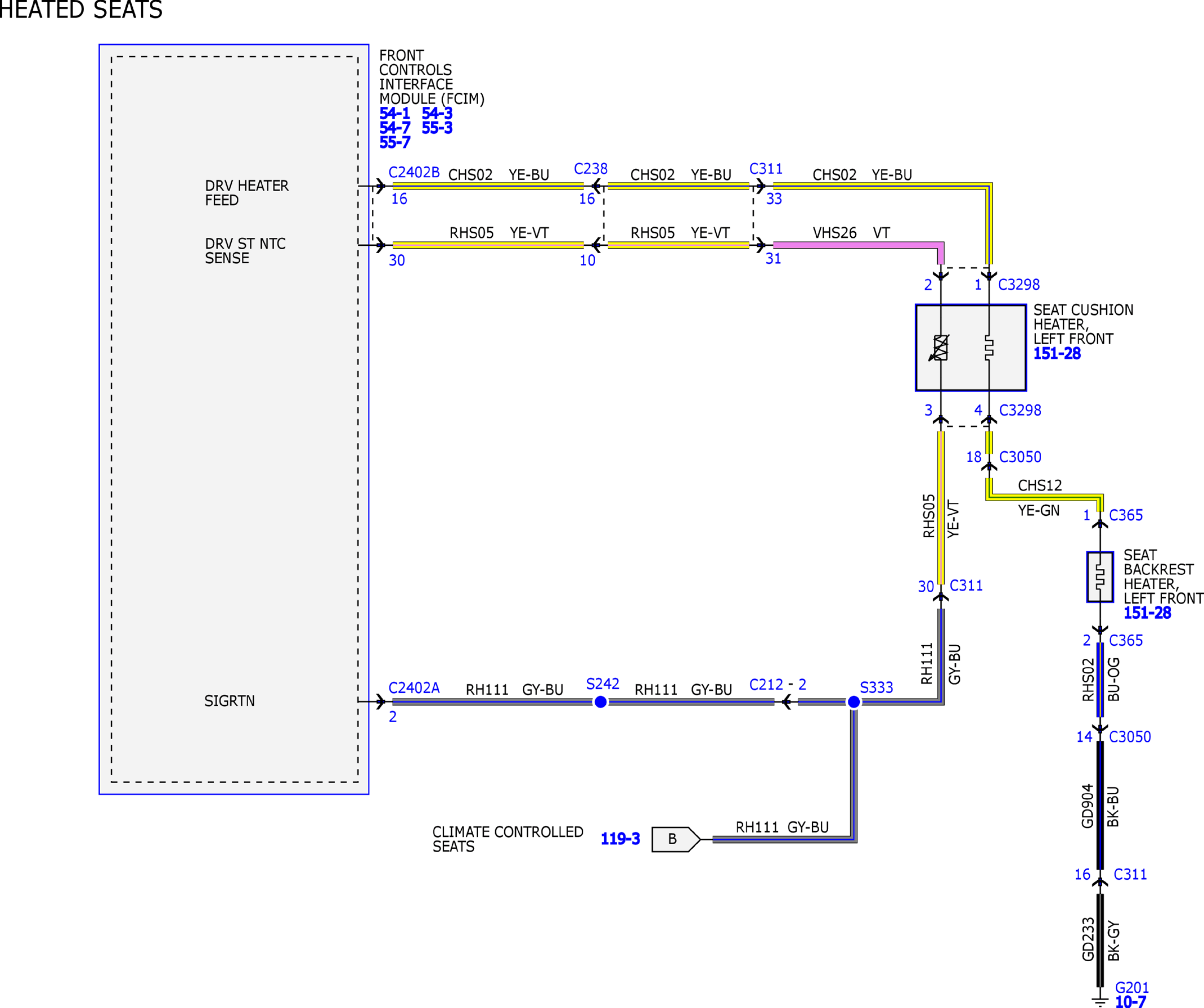

Fig 2: Climate Controlled Seats Wiring Diagram (2 of 9)

GFDW83265

Courtesy of FORD MOTOR COMPANY

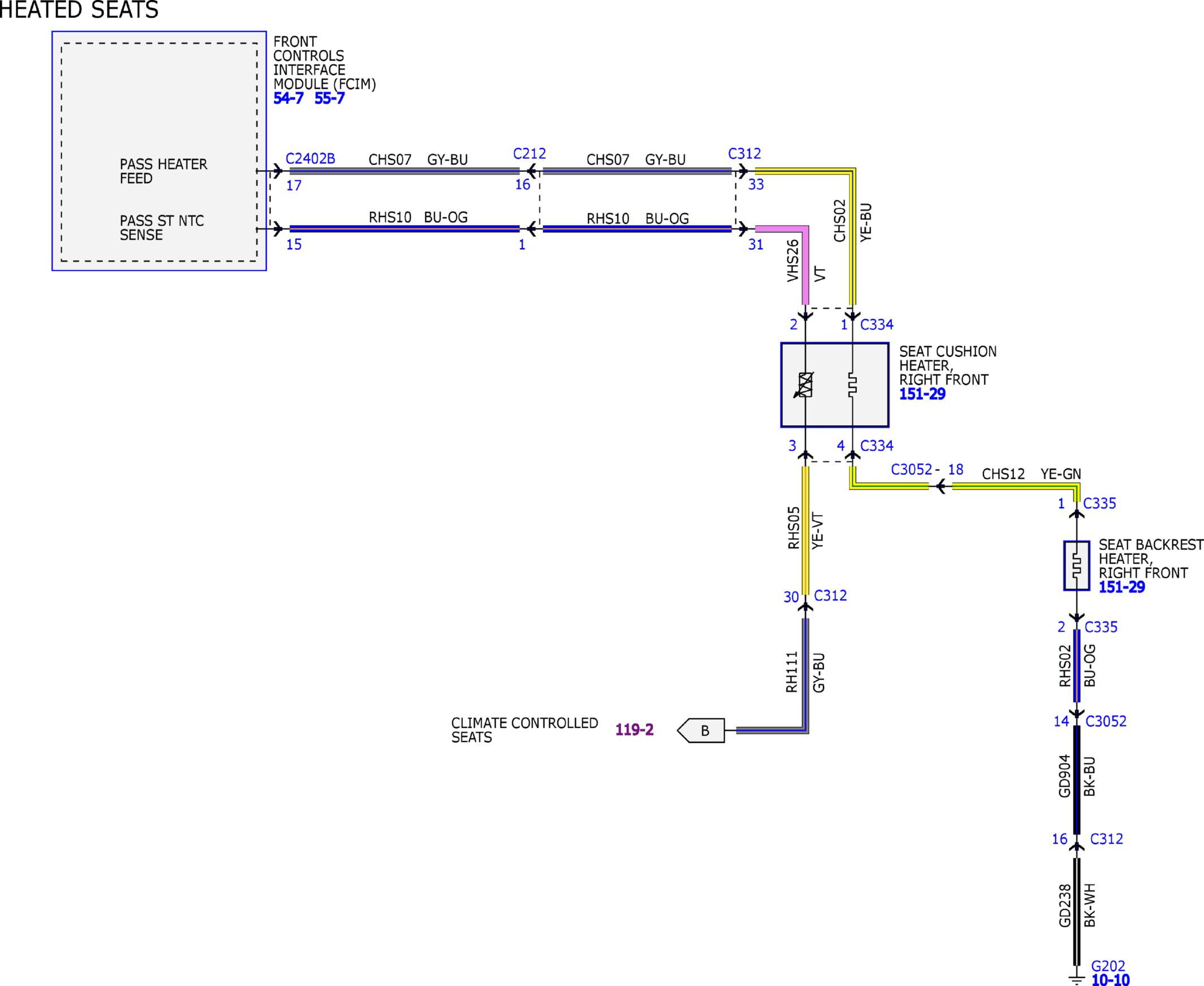

Fig 3: Climate Controlled Seats Wiring Diagram (3 of 9)

GFDW83266

Courtesy of FORD MOTOR COMPANY

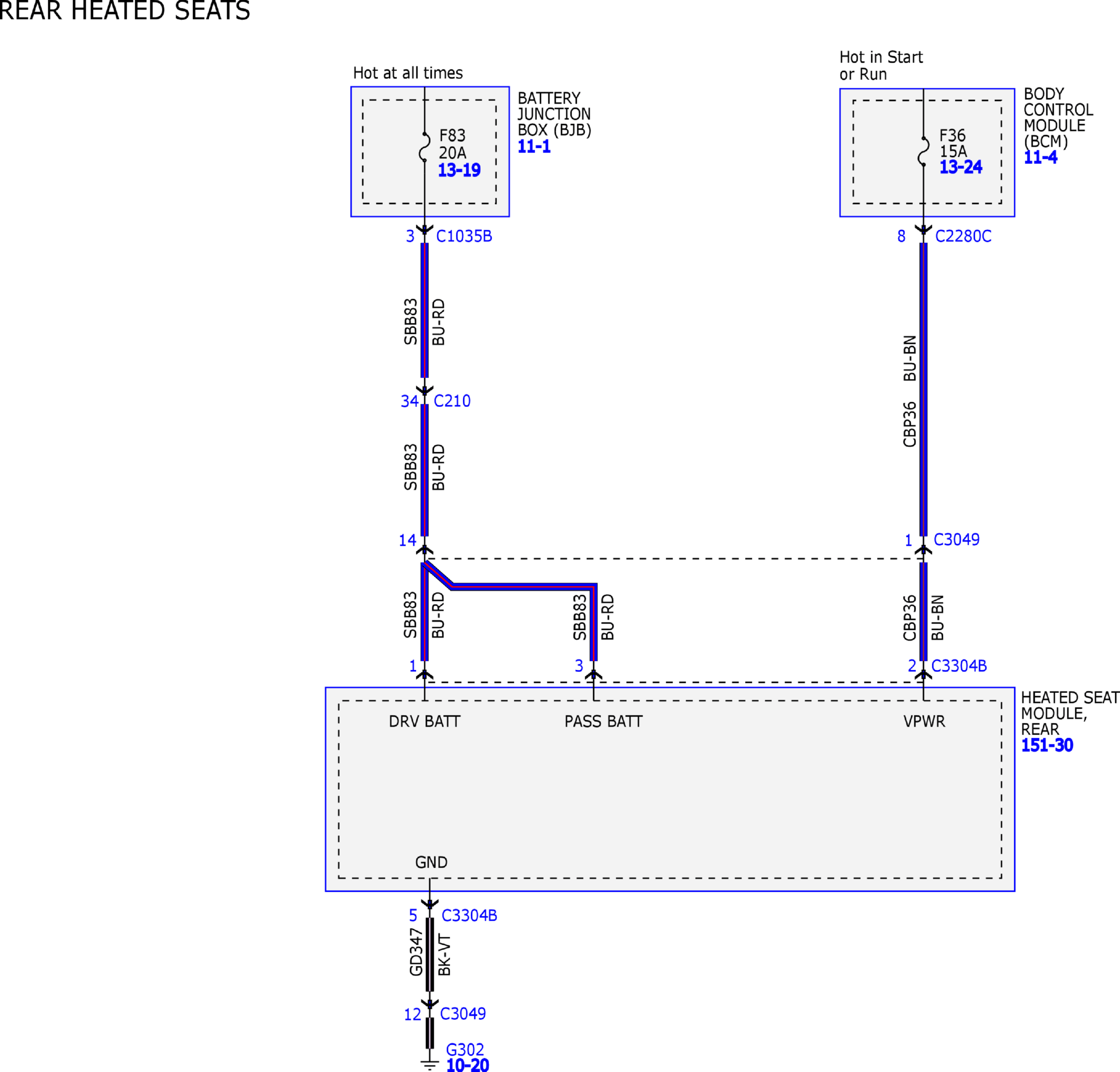

Fig 4: Climate Controlled Seats Wiring Diagram (4 of 9)

GFDW83267

Courtesy of FORD MOTOR COMPANY

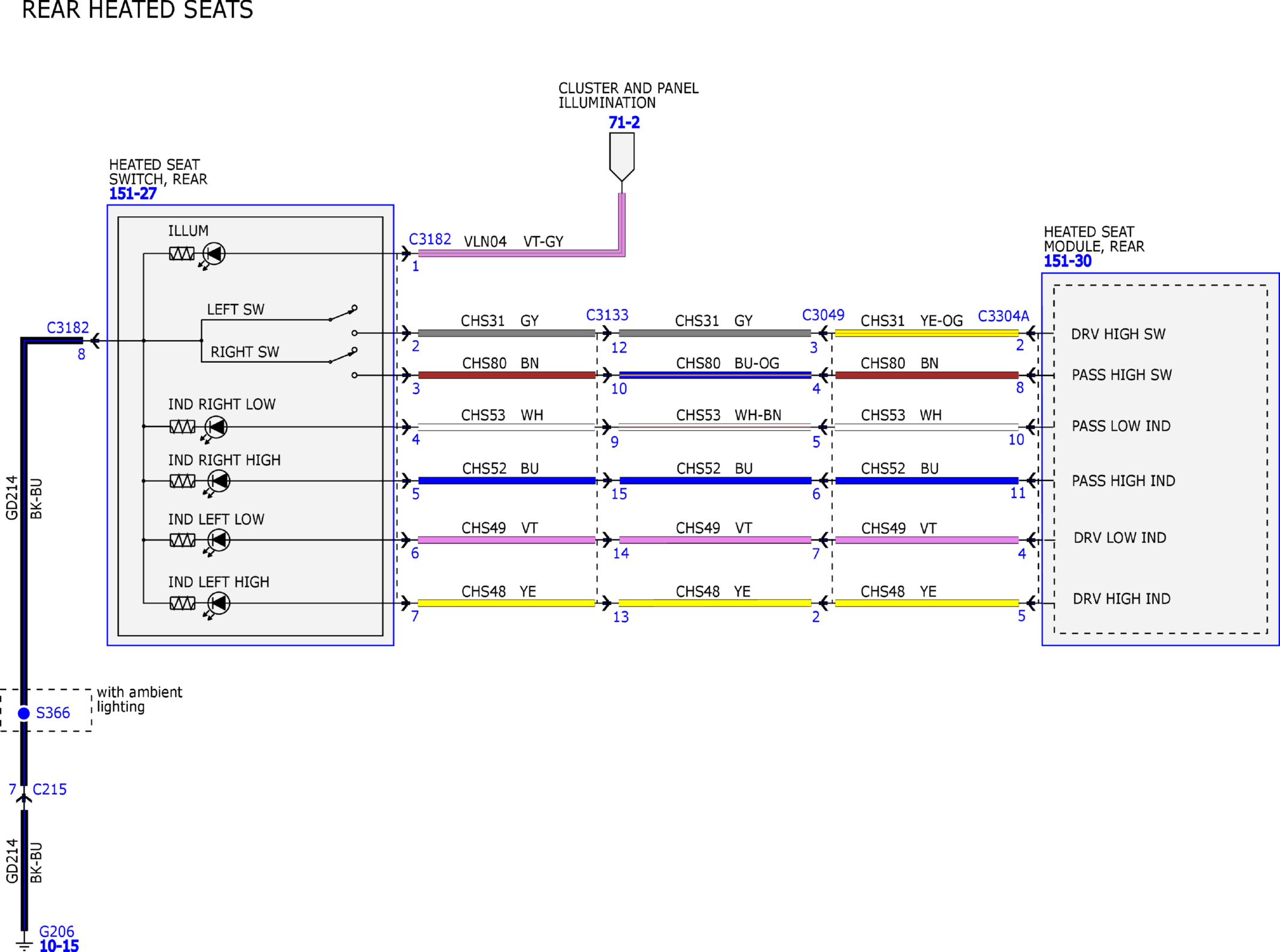

Fig 5: Climate Controlled Seats Wiring Diagram (5 of 9)

GFDW83268

Courtesy of FORD MOTOR COMPANY

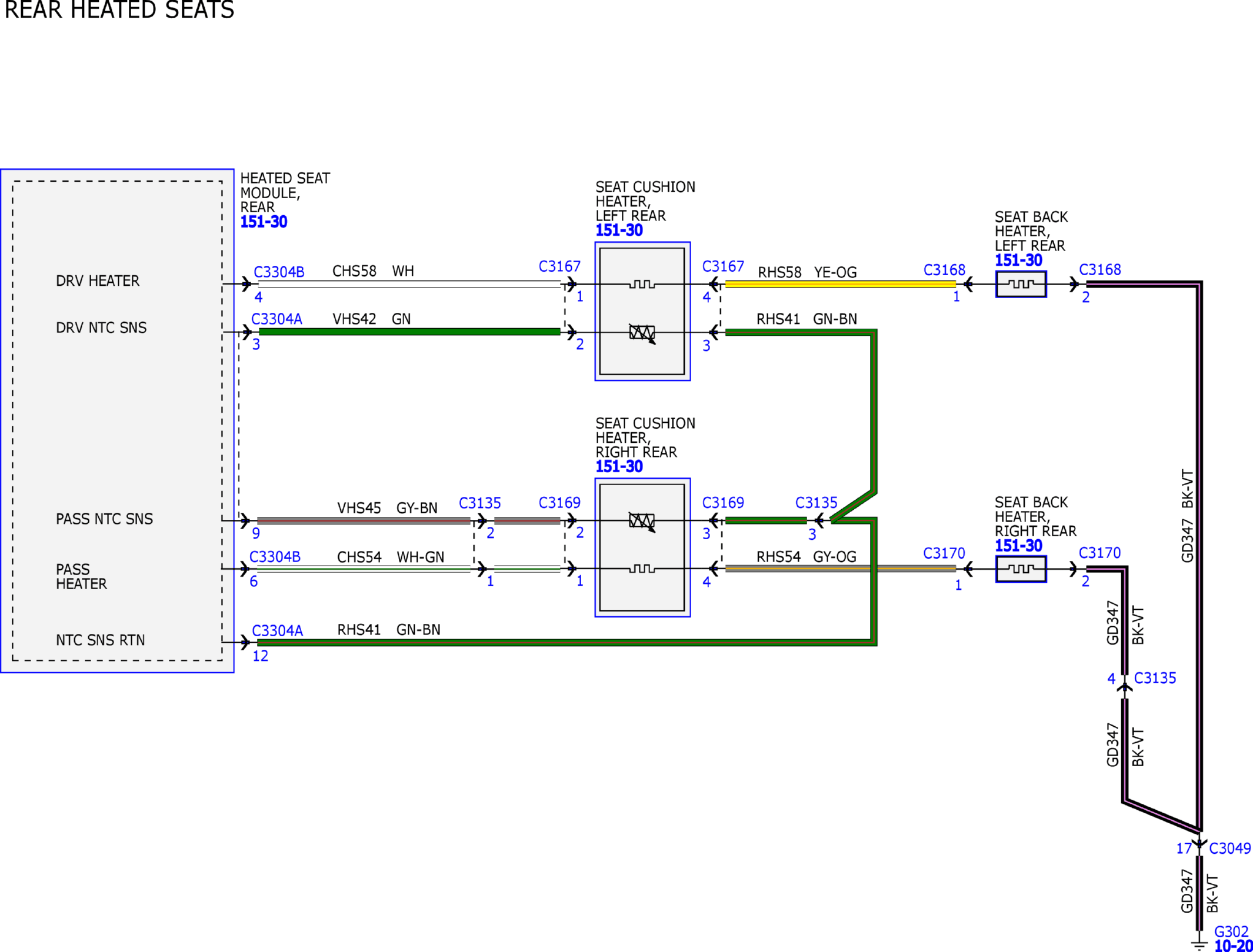

Fig 6: Climate Controlled Seats Wiring Diagram (6 of 9)

GFDW83269

Courtesy of FORD MOTOR COMPANY

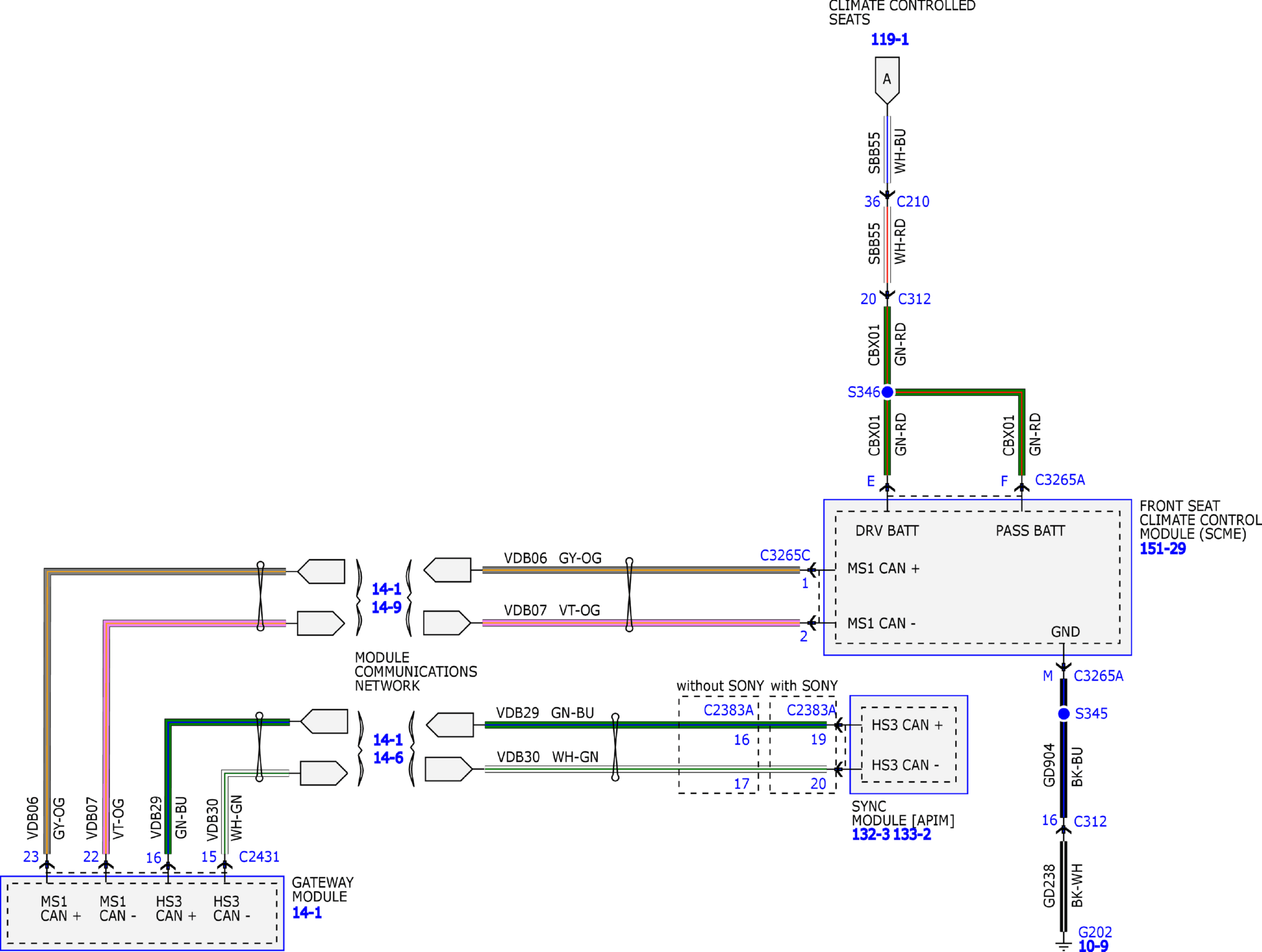

Fig 7: Climate Controlled Seats Wiring Diagram (7 of 9)

GFDW83270

Courtesy of FORD MOTOR COMPANY

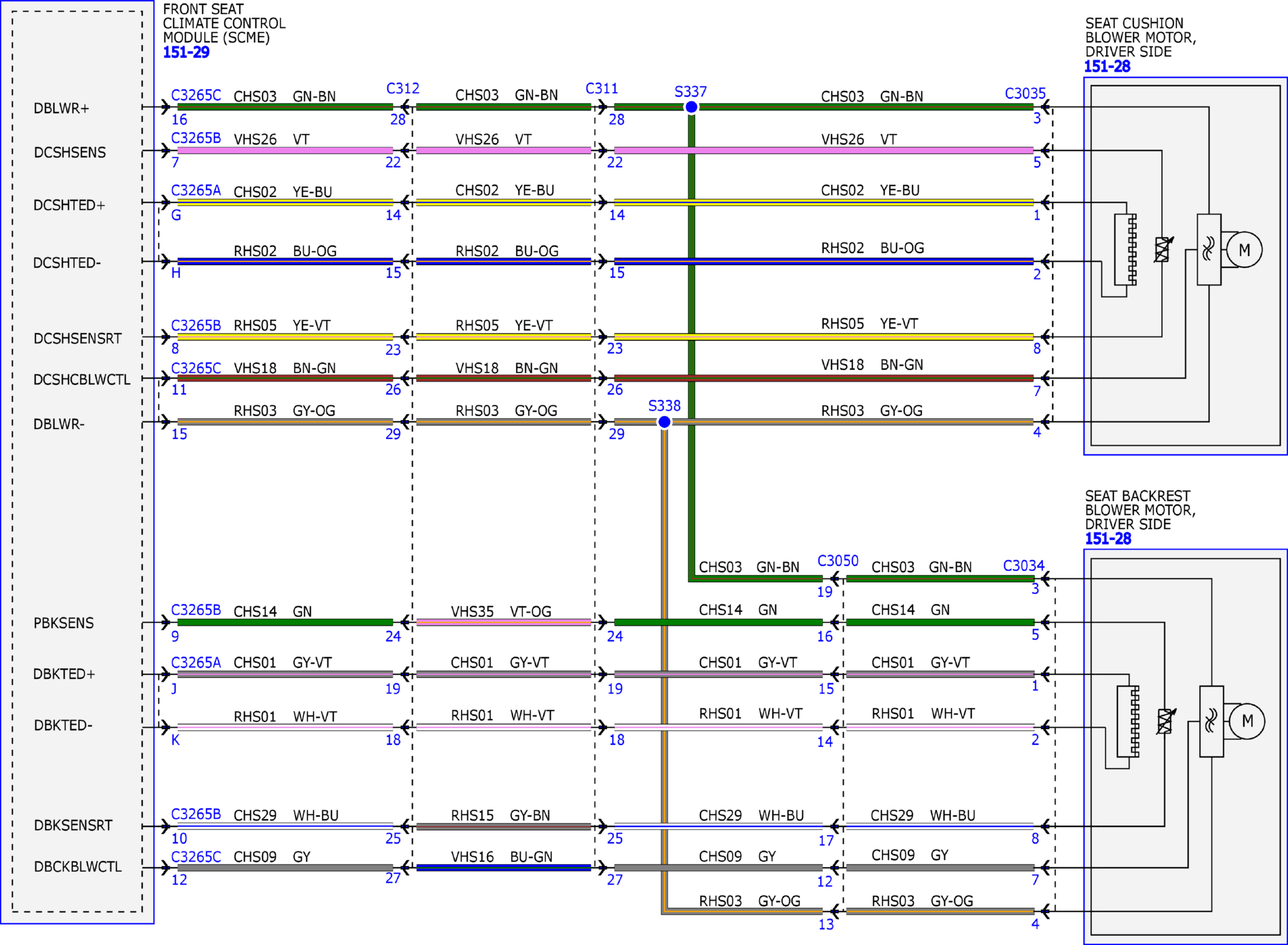

Fig 8: Climate Controlled Seats Wiring Diagram (8 of 9)

GFDW83271

Courtesy of FORD MOTOR COMPANY

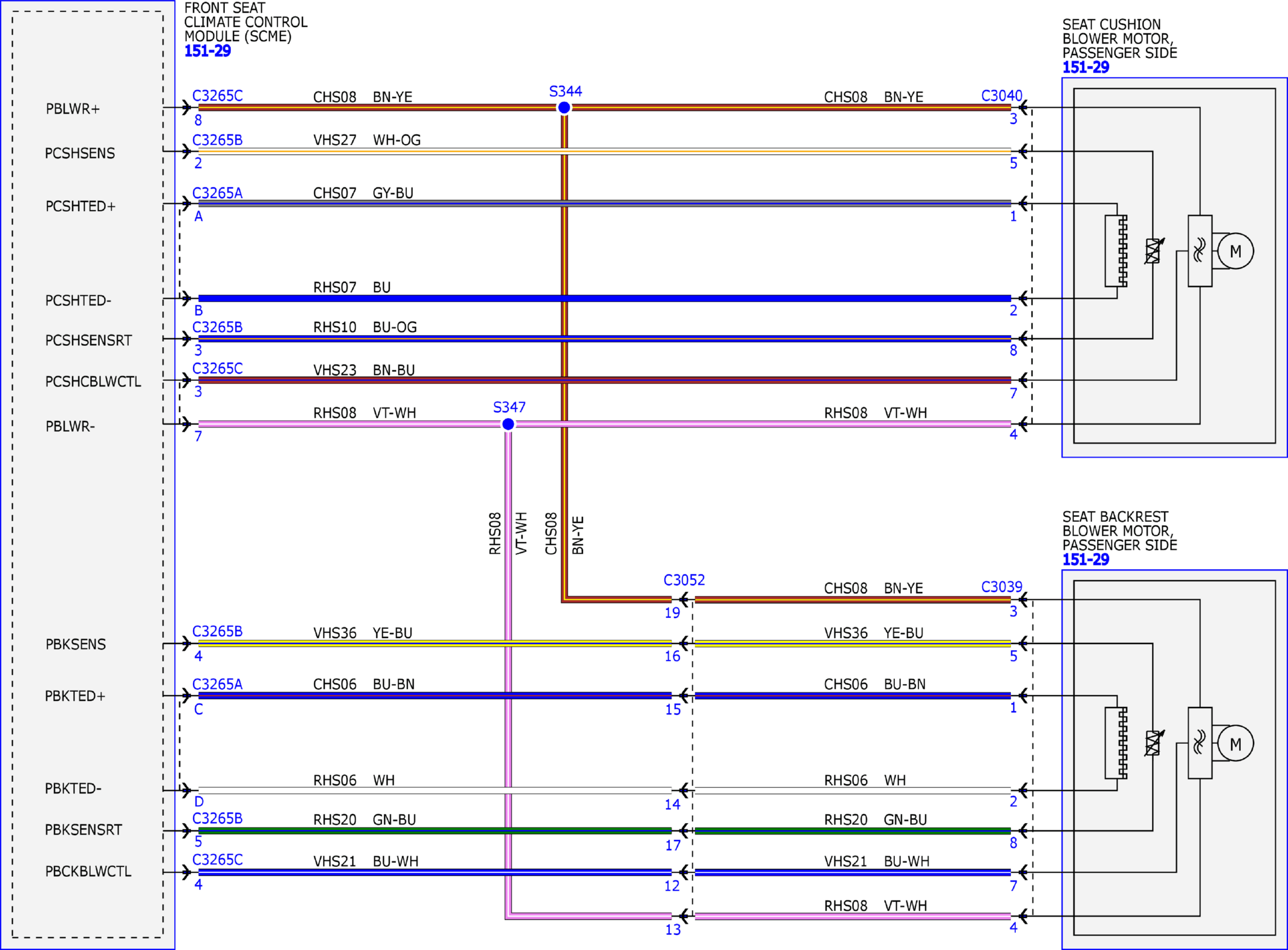

Fig 9: Climate Controlled Seats Wiring Diagram (9 of 9)

GFDW83272

Courtesy of FORD MOTOR COMPANY
