PINPOINT TEST KN: Variable Speed Electric Cooling Fan Motor: Introduction

WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2019 Lincoln Navigator, 2019 Lincoln Nautilus, 2019 Lincoln MKZ, 2019 Lincoln MKT, and 2019 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

This pinpoint test is intended to diagnose the following:

cooling fan (CF) module (8B658)
cooling fan assembly (8C607)
harness circuits: FCV, FANPWR and GND
PCM (12A650)

Fig 1: Cooling Fan (CF) Module Connector

G13533158

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
GND (Ground)	2
FCV (Fan Control Variable)	4
FANPWR (Fan Power)	1

Fig 2: Cooling Fan (CF) Motor Connector

G13533159

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
FANPWR (Fan Power)	2
GND (Ground)	1

Fig 3: Cooling Fan Motor 1 Connector

G13533160

Courtesy of FORD MOTOR CO.

Harness Side

Circuit

Pin

Fig 4: Cooling Fan Motor 2 Connector

G13533161

Courtesy of FORD MOTOR CO.

Harness Side

Circuit

Pin

Fig 5: Fan Control (FC) Relay Connector

G13533162

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
B+ (Battery Positive Voltage)	3
VPWR (Vehicle Power)	1
GND (Ground)	2
FANPWR (Fan Power)	5

Fig 6: Fan Control 1 (FC1) Relay Connector

G13533163

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
B+ (Battery Positive Voltage)	3

Fig 7: Fan Control 2 (FC2) Relay Connector

G13533164

Courtesy of FORD MOTOR CO.

Harness Side

Circuit

Pin

Fig 8: Fan Control 3 (FC3) Relay Connector

G13533165

Courtesy of FORD MOTOR CO.

Harness Side

Circuit

Pin

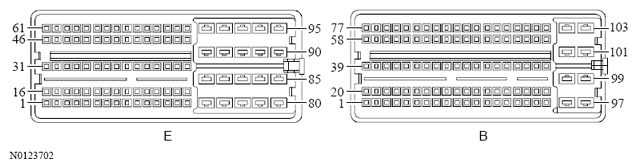

Fig 9: Powertrain Control Module (PCM) Connector - For PCM Connector Views

G13533166

Courtesy of FORD MOTOR CO.

Harness Side

Circuit

Pin
