PINPOINT TEST KF: Fan Control Relays: Introduction

WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2019 Lincoln Navigator, 2019 Lincoln Nautilus, 2019 Lincoln MKZ, 2019 Lincoln MKT, and 2019 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

This pinpoint test is intended to diagnose the following:

CAC fan relay
fan control (FC1, FC2, FC3, FC4, FC5) relays
harness circuits: CACCF, FGC, LFC, MFC, HFC and VPWR
PCM (12A650)

Although the PCM output circuits are called LFC, MFC, and HFC, cooling fan operation is controlled by a combination of these outputs.

COOLING FAN STATE

	PCM Output	Low Speed	Medium Speed	High Speed
Vehicles With 5 Fan Control Relays	LFC	ON	ON	ON
	MFC	OFF	ON	ON
	HFC	OFF	OFF	ON
All Others	LFC	ON	N/A	ON
	HFC	OFF	N/A	ON

Fig 1: Charge Air Cooler Cooling Fan Relay Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
VPWR (Vehicle Power)	1
B+ (Battery Positive Voltage)	3
CACCF (Charge Air Cooler Cooling Fan)	2
FANPWR (Fan Power)	5

Fig 2: Charge Air Cooler Cooling Fan Motor Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
FANPWR (Fan Power)	1
GND (Ground)	2

Fig 3: Cooling Fan Motor 1 Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
FANPWR (Fan Power)	1
FC (Fan Control)	2

Fig 4: Cooling Fan Motor 2 Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
FANPWR (Fan Power)	1
GND (Ground)	2

Fig 5: Fan Control 1 (FC1) Relay Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
VPWR (Vehicle Power)	2
B+ (Battery Positive Voltage)	3
LFC (Low Fan Control)	1
FANPWR (Fan Power)	5

Fig 6: Fan Control 2 (FC2) Relay Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
VPWR (Vehicle Power)	2
HFC (High Fan Control)	1
FANPWR (Fan Power)	4
FGC (Fan Ground Control)	3
GND (Ground)	5

NOTE: The HFC circuit may be wired to the FC3 and FC5 relays. Refer to the Wiring Diagrams Manual for additional information.

Fig 7: Fan Control 3 (FC3) Relay Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
VPWR (Vehicle Power)	2
B+ (Battery Positive Voltage)	5
HFC (High Fan Control)	1
FANPWR (Fan Power)	3

NOTE: The MFC circuit may be wired to the FC2 and FC4 relays. Refer to the Wiring Diagrams Manual for additional information.

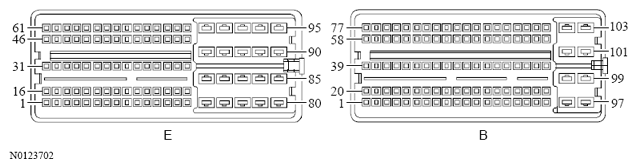

Fig 8: Powertrain Control Module (PCM) Connector - For PCM Connector Views

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
HFC (High Fan Control)	B39
LFC (Low Fan Control)	B43
