PINPOINT TEST JE: Integrated Ignition Coil Pack: Introduction

WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2019 Lincoln Navigator, 2019 Lincoln Nautilus, 2019 Lincoln MKZ, 2019 Lincoln MKT, and 2019 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

This pinpoint test is intended to diagnose the following:

ignition coil packs (12029)
ignition coil harness
VPWR circuit to coil packs
PCM (12A650)

IGNITION COIL TO CYLINDER CORRELATION

Related DTC	Cylinder Number	Coil Driver (CD)
P0351	1, 4	A
P0352	2, 3	B

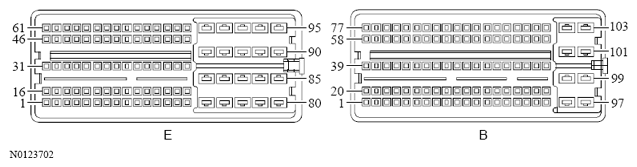

Fig 1: Powertrain Control Module (PCM) Connector - For PCM Connector Views

Courtesy of FORD MOTOR CO.

Harness Side

Circuit
