PINPOINT TEST HE: Exhaust Gas Recirculation (EGR) Systems: Introduction

WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2019 Lincoln Navigator, 2019 Lincoln Nautilus, 2019 Lincoln MKZ, 2019 Lincoln MKT, and 2019 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

This pinpoint test is intended to diagnose the following:

differential pressure feedback exhaust gas recirculation (EGR) sensor (9J460)
differential pressure feedback EGR sensor pressure hoses
orifice tube assembly (9D477)
EGR cooler
harness circuits: DPFE, SIGRTN and VREF
PCM (12A650)

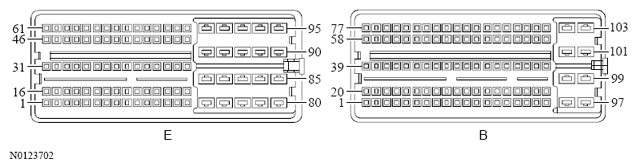

Fig 1: Powertrain Control Module (PCM) Connector - For PCM Connector Views

Courtesy of FORD MOTOR CO.

Harness Side

Circuit
