PINPOINT TEST DR: Camshaft Position (CMP) Sensor: Introduction
WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2019 Lincoln Navigator, 2019 Lincoln Nautilus, 2019 Lincoln MKZ, 2019 Lincoln MKT, and 2019 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
This pinpoint test is intended to diagnose the following:
- CMP sensor (6B288 or 12K073)
- harness circuits: CMP11, CMP12, CMP21, CMP22, SIGRTN, VBPWR or VREF
- PCM (12A650)
Harness Side
| Circuit | Pin |
|---|---|
| CMP11 (Camshaft Position Bank 1 Sensor 1) | 3 |
| SIGRTN (Signal Return) | 2 |
| VREF (Reference Voltage) | 1 |
Harness Side
| Circuit | Pin |
|---|---|
| CMP12 (Camshaft Position Bank 1 Sensor 2) | 3 |
| SIGRTN (Signal Return) | 2 |
| VREF (Reference Voltage) | 1 |

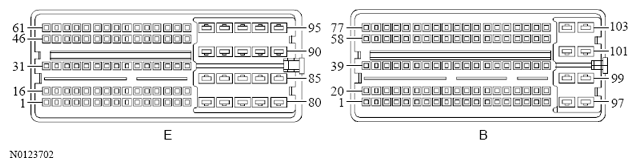

Harness Side
| Circuit | Pin |
|---|---|
| CMP11 (Camshaft Position Bank 1 Sensor 1) | E27 |
| CMP12 (Camshaft Position Bank 1 Sensor 2) | E28 |
| SIGRTN (Signal Return) | E14 |
| VREF (Reference Voltage) | E19 |
