PINPOINT TEST AB: Cold Start System: Introduction
WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2019 Lincoln Navigator, 2019 Lincoln Nautilus, 2019 Lincoln MKZ, 2019 Lincoln MKT, and 2019 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Refer to the fuel system WARNING information at the beginning of PINPOINT TEST HC.
Failure to follow these instructions may result in personal injury.
This pinpoint test is intended to diagnose the following:
- fuel injector heaters
- fuel injector heater control module
- harness circuits: FIHC, FIHM, FIH1, FIH2, FIH3, GND, PWRGND, VBATT and VPWR

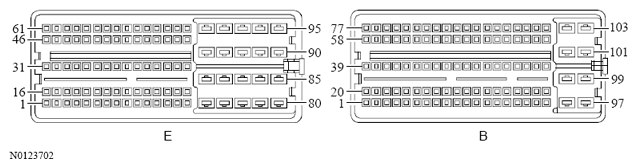

Harness Side
| Circuit | Pin |
|---|---|
| FIH (Fuel Injector Heater) | 1 |
| GND (Ground) | 2 |
Harness Side
| Circuit | Pin |
|---|---|
| VBATT (Battery Voltage) | 5 |
| VPWR (Vehicle Power) | 4 |
| PWRGND (Power Ground) | 3 |
| FIHC (Fuel Injection Heater Control) | 2 |
| FIHM (Fuel Injection Heater Monitor) | 1 |
Harness Side
| Circuit | Pin |
|---|---|
| FIH1 (Fuel Injector Heater 1) | 3 |
| FIH2 (Fuel Injector Heater 2) | 1 |
| FIH3 (Fuel Injector Heater 3) | 4 |
Harness Side
| Circuit | Pin |
