Pinpoint Test Ta: Clutch Pedal Position (CPP) Switch: Introduction
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2021 Ford F-150, 2020 Lincoln Navigator, 2020 Lincoln Nautilus, 2020 Lincoln MKZ, and 2020 Lincoln Corsair. However, it is still accessible from the selected car via links, so may be relevant.
This pinpoint test is intended to diagnose the following:
- CPP sensor
- CPP switch (11A152/7C534)
- harness circuits: CPP, CPP-BT, GND, SIGRTN, and VREF
- PCM (12A650)
Harness Side
| Circuit | Pin |
|---|---|
| CPP-BT (Clutch Pedal Position - Bottom of Travel) | 1 |
| GND (Ground) | 2 |

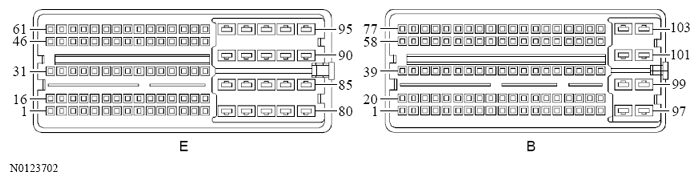

Harness Side
| Circuit | Pin |
|---|---|
| CPP-BT (Clutch Pedal Position - Bottom of Travel) | B7 |
