Pinpoint Test Kn: Variable Speed Electric Cooling Fan Motor: Introduction

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2021 Ford F-150, 2020 Lincoln Navigator, 2020 Lincoln Nautilus, 2020 Lincoln MKZ, and 2020 Lincoln Corsair. However, it is still accessible from the selected car via links, so may be relevant.

This pinpoint test is intended to diagnose the following:

cooling fan (CF) module (8B658)
cooling fan assembly (8C607)
harness circuits: FCV, FANPWR and GND
PCM (12A650)

Fig 1: Cooling Fan (CF) Module Connector

G13533310

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
GND (Ground)	2
FCV (Fan Control Variable)	4
FANPWR (Fan Power)	1

Fig 2: Cooling Fan (CF) Motor Connector

G13533311

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
FANPWR (Fan Power)	2
GND (Ground)	1

Fig 3: Cooling Fan Motor 1 Connector

G13533312

Courtesy of FORD MOTOR CO.

Harness Side

Circuit

Pin

Fig 4: Cooling Fan Motor 2 Connector

G13533313

Courtesy of FORD MOTOR CO.

Harness Side

Circuit

Pin

Fig 5: Fan Control 1 (FC1) Relay Connector

G13533314

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
B+ (Battery Positive Voltage)	3

Fig 6: Fan Control 2 (FC2) Relay Connector

G13533315

Courtesy of FORD MOTOR CO.

Harness Side

Circuit

Pin

Fig 7: Fan Control 3 (FC3) Relay Connector

G13533316

Courtesy of FORD MOTOR CO.

Harness Side

Circuit

Pin

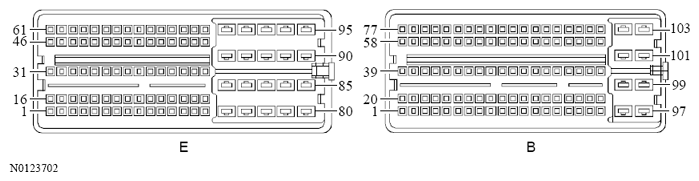

Fig 8: Powertrain Control Module (PCM) Connector - For PCM Connector Views

G13533317

Courtesy of FORD MOTOR CO.

Harness Side

Circuit

Pin
