Pinpoint Test JF: Integrated Ignition Coil On Plug Coils A Through J Failure: Introduction
WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2020 Lincoln Navigator, 2020 Lincoln Nautilus, 2020 Lincoln MKZ, 2020 Lincoln Corsair, and 2020 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.
This pinpoint test is intended to diagnose the following:
Harness Side
| Circuit | Pin |
|---|---|
| COP (Coil On Plug) | 1 |
| GND (Ground) | 2 |
| VPWR (Vehicle Power) | 3 |

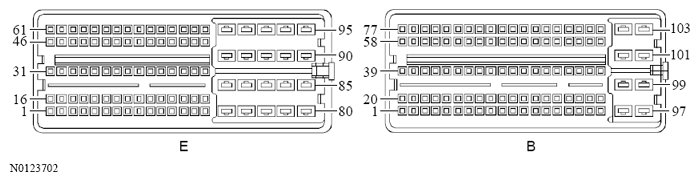

Harness Side
| Circuit | Pin |
|---|---|
| COP1 (Coil On Plug Cylinder 1) | E60 |
| COP2 (Coil On Plug Cylinder 2) | E45 |
| COP3 (Coil On Plug Cylinder 3) | E59 |
| COP4 (Coil On Plug Cylinder 4) | E58 |
