Pinpoint Test JD: Crankshaft Position (CKP) Sensor: Introduction

WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2020 Lincoln Navigator, 2020 Lincoln Nautilus, 2020 Lincoln MKZ, 2020 Lincoln Corsair, and 2020 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.

This pinpoint test is intended to diagnose the following:

CKP sensor (6C315)
harness circuits: CKP, CKP+ and CKP-
PCM (12A650)

Fig 1: Crankshaft Position (CKP) Sensor Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
VREF (Reference Voltage)	1
CKP (Crankshaft Position Sensor)	2
SIGRTN (Signal Return)	3

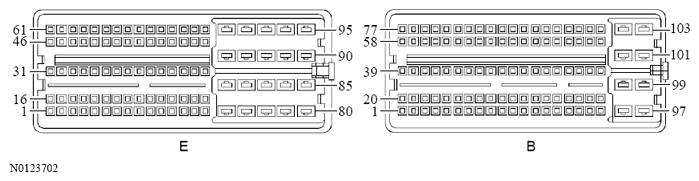

Fig 2: Powertrain Control Module (PCM) Connector - For PCM Connector Views

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
CKP (Crankshaft Position Sensor)	E23
