Pinpoint Test Hg: Positive Crankcase Ventilation (PCV) System: Introduction
WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2020 Lincoln Navigator, 2020 Lincoln Nautilus, 2020 Lincoln MKZ, 2020 Lincoln Corsair, and 2020 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.
This pinpoint test is intended to diagnose the following:
- positive crankcase ventilation (PCV) valve (6A666) and related vacuum lines
- crankcase pressure sensor (6758)
- PCM (12A650)
Harness Side
| Circuit | Pin |
|---|---|
| VREF (Reference Voltage) | 3 |
| CKCP (Crankcase Pressure) | 1 |
| SIGRTN (Signal Return) | 2 |

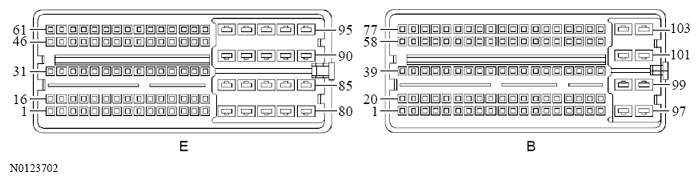

Harness Side
| Circuit | Pin |
|---|---|
| CKCP (Crankcase Pressure) | B72 |
