Pinpoint Test HV: Electric Cooling Fan Clutch: Introduction
WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2020 Lincoln Navigator, 2020 Lincoln Nautilus, 2020 Lincoln MKZ, 2020 Lincoln Corsair, and 2020 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
To avoid the possibility of personal injury or damage to the vehicle, do not operate the engine until the fan blade has been first examined for possible cracks and separation. Failure to follow these instructions may result in personal injury or death.
This pinpoint test is intended to diagnose the following:
- cooling fan clutch
- harness circuits: fan speed sensor (FSS), FSS PWRGND, FSS VPWR, fan control variable (FCV), and FCV VPWR
- powertrain control module (PCM) (12A650)

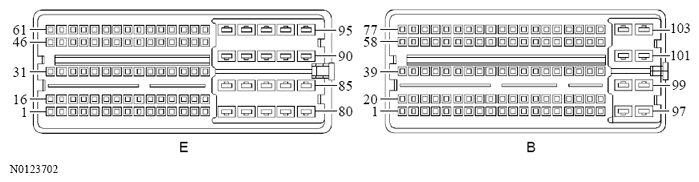

Harness Side
| Circuit | Pin |
