Pinpoint Test HK: Variable Camshaft Timing (VCT): Introduction

WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2020 Lincoln Navigator, 2020 Lincoln Nautilus, 2020 Lincoln MKZ, 2020 Lincoln Corsair, and 2020 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.

This pinpoint test is intended to diagnose the following:

VCT solenoid (6L713) or (6B297)
spider assembly right bank (6C260) or left bank (6C261)
harness circuits: VPWR and VCT
PCM (12A650)

Fig 1: Variable Camshaft Timing Bank 1 Solenoid 1 (VCT11) Solenoid Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
VCT11 (Variable Camshaft Timing Bank 1 Solenoid 1)	2
VPWR (Vehicle Power)	1

Fig 2: Variable Camshaft Timing Bank 1 Solenoid 2 (VCT12) Solenoid Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
VCT12 (Variable Camshaft Timing Bank 1 Solenoid 2)	2
VPWR (Vehicle Power)	1

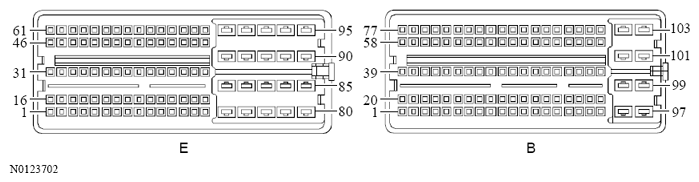

Fig 3: Powertrain Control Module (PCM) Connector - For PCM Connector Views

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
VCT11 (Variable Camshaft Timing Bank 1 Solenoid 1)	E5
VCT12 (Variable Camshaft Timing Bank 1 Solenoid 2)	E1
