Pinpoint Test Fa: Ambient Air Temperature (AAT) Sensor: Introduction
WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2020 Lincoln Navigator, 2020 Lincoln Nautilus, 2020 Lincoln MKZ, 2020 Lincoln Corsair, and 2020 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.
This pinpoint test is intended to diagnose the following:
AMBIENT AIR TEMPERATURE (AAT) SENSOR EXPECTED VALUES
| Temperature | AAT Sensor Values | |
|---|---|---|
| °C | °F | Resistance (K ohms) |
| -1.1 to 4.4 | 30 to 40 | 27.49 to 33.47 |
| 4.4 to 10 | 40 to 50 | 22.06 to 28.86 |
| 10 to 15.6 | 50 to 60 | 16.63 to 23.10 |
| 15.6 to 21.1 | 60 to 70 | 11.74 to 17.32 |
| 21.1 to 26.7 | 70 to 80 | 9.34 to 12.14 |
| 26.7 to 32.2 | 80 to 90 | 8.49 to 9.62 |
| 32.2 to 37.8 | 90 to 100 | 5.93 to 7.87 |
| 37.8 to 43.3 | 100 to 110 | 4.78 to 6.11 |

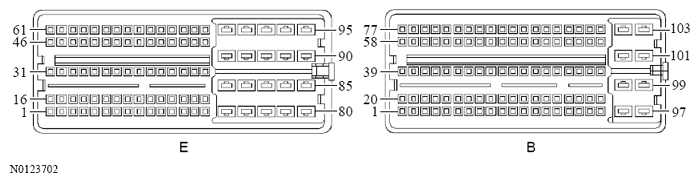

Harness Side
| Circuit | Pin |
|---|---|
| AAT (Ambient Air Temperature) | 1 |
| SIGRTN (Signal Return) | 2 |
Harness Side
| Circuit | Pin |
|---|---|
| AAT (Ambient Air Temperature) | B31 |
| SIGRTN (Signal Return) | B36 |
