Pinpoint Test Dr: Camshaft Position (CMP) Sensor: Introduction
WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2020 Lincoln Navigator, 2020 Lincoln Nautilus, 2020 Lincoln MKZ, 2020 Lincoln Corsair, and 2020 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.
This pinpoint test is intended to diagnose the following:
- CMP sensor (6B288 or 12K073)
- harness circuits: CMP11, CMP12, CMP21, CMP22 SIGRTN, VBPWR or VREF
- PCM (12A650)
Harness Side
| Circuit | Pin |
|---|---|
| CMP11 (Camshaft Position Bank 1 Sensor 1) | 3 |
| SIGRTN (Signal Return) | 2 |
| VREF (Reference Voltage) | 1 |
Harness Side
| Circuit | Pin |
|---|---|
| CMP12 (Camshaft Position Bank 1 Sensor 2) | 3 |
| SIGRTN (Signal Return) | 2 |
| VREF (Reference Voltage) | 1 |

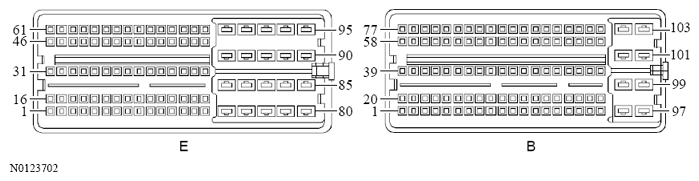

Harness Side
| Circuit | Pin |
|---|---|
| CMP11 (Camshaft Position Bank 1 Sensor 1) | E27 |
| CMP12 (Camshaft Position Bank 1 Sensor 2) | E28 |
| SIGRTN (Signal Return) | E14 |
| VREF (Reference Voltage) | E19 |
