Pinpoint Test DW: Heated Oxygen Sensor (Ho2S): Introduction
WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2020 Lincoln Navigator, 2020 Lincoln Nautilus, 2020 Lincoln MKZ, 2020 Lincoln Corsair, and 2020 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
While conducting tests on a hot engine take all safety precautions to prevent skin contact with hot engine components. Failure to follow these instructions may result in personal injury
This pinpoint test is intended to diagnose the following:
- exhaust leaks
- HO2S (9G444)
- harness circuits: HO2S11, HO2S12, HO2S22, HTR12, HTR22, VPWR and SIGRTN
- PCM (12A650)
Harness Side
| Circuit | Pin |
|---|---|
| HO2S12 (Heated Oxygen Sensor Bank 1, Sensor 2) | 4 |
| SIGRTN (Signal Return) | 3 |
| VPWR (Vehicle Power) | 2 |
| HTR12 (Heater Oxygen Sensor Bank 1, Sensor 2) | 1 |
Harness Side
| Circuit | Pin |
|---|---|

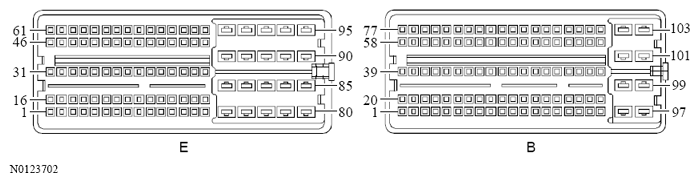

| HO2S12 (Heated Oxygen Sensor Bank 1, Sensor 2) | E26 |
| SIGRTN (Signal Return) | E13 |
| HTR12 (Heater Oxygen Sensor Bank 1, Sensor 2) | E81 |
