Pinpoint Test DV: Throttle Body Assembly Electronic Throttle Control (Etc): Introduction
WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2020 Lincoln Navigator, 2020 Lincoln Nautilus, 2020 Lincoln MKZ, 2020 Lincoln Corsair, and 2020 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Substantial opening and closing torque is applied by this system. To prevent injury, be careful to keep fingers away from throttle mechanism when actuated. Failure to follow these instructions may result in personal injury.
This pinpoint test is intended to diagnose the following:
- electronic throttle body (ETB) (9F991)
- electronic throttle body throttle position sensor (ETBTPS) (9E928)
- harness circuits: ETCRTN, ETCREF, TP, TP1, TP2, TACM+, and TACM-
- PCM (12A650)
Harness Side
| Circuit | Pin |
|---|---|
| ETCREF (Electronic Throttle Control Reference Voltage) | 5 |
| ETCRTN (Electronic Throttle Control Return) | 4 |
| TP (Throttle Position) | 3 |
Harness Side
| Circuit | Pin |
|---|---|
| TACM+ (Throttle Actuator Control Motor +) | 1 |
| TACM- (Throttle Actuator Control Motor -) | 2 |

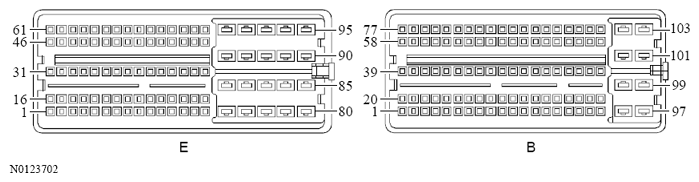

Harness Side
| Circuit | Pin |
|---|---|
| ETCREF (Electronic Throttle Control Reference Voltage) | E10 |
| ETCRTN (Electronic Throttle Control Return) | E16 |
| TACM- (Throttle Actuator Control Motor -) | E51 |
| TACM+ (Throttle Actuator Control Motor +) | E50 |
| VPWR (Vehicle Power) | B100 |
| PWRGND (Power Ground) | B96 |
| TP (Throttle Position) | E54 |
| PWRGND (Power Ground) | B97 |
| PWRGND (Power Ground) | B98 |
| PWRGND (Power Ground) | B99 |
| VPWR (Vehicle Power) | B102 |
| VPWR (Vehicle Power) | B101 |
