Pinpoint Test Dc: Mass Airflow (MAF) Sensor: Introduction

WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2020 Lincoln Navigator, 2020 Lincoln Nautilus, 2020 Lincoln MKZ, 2020 Lincoln Corsair, and 2020 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.

This pinpoint test is intended to diagnose the following:

Fig 1: Mass Airflow/Intake Air Temperature (MAF/IAT) Sensor Connector
G13533211Courtesy of FORD MOTOR CO.

Harness Side

Circuit Pin
VPWR (Vehicle Power) 3
MAF (Mass Airflow) 5
SIGRTN (Signal Return) 4

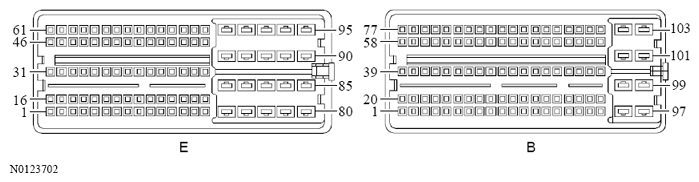

Fig 2: Powertrain Control Module (PCM) Connector - For PCM Connector Views
G13533212Courtesy of FORD MOTOR CO.

Harness Side

Circuit Pin
