Pinpoint Test B: Powertrain Control Module (Pcm) Power Relay: Introduction

WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2020 Lincoln Navigator, 2020 Lincoln Nautilus, 2020 Lincoln MKZ, 2020 Lincoln Corsair, and 2020 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.

This pinpoint test is intended to diagnose the following:

Fig 1: Powertrain Control Module Power (PCM Power) Relay Connector
G13533187Courtesy of FORD MOTOR CO.

Harness Side

Circuit Pin
B+ (Battery Positive Voltage) 5
B+ (Battery Positive Voltage) 1
PCMRC (PCM Relay Control) 2
VPWR (Vehicle Power) 3

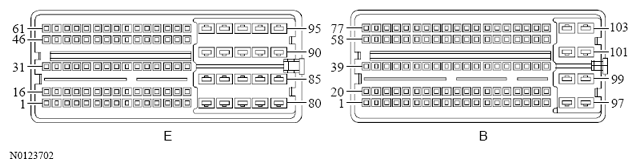

Fig 2: Powertrain Control Module (PCM) Connector - For PCM Connector Views
G13533188Courtesy of FORD MOTOR CO.

Harness Side

Circuit Pin
PCMRC (PCM Relay Control) B25
ISP-R (Ignition Switch Position Run) B64
VPWR (Vehicle Power) B100
VPWR (Vehicle Power) B102
VPWR (Vehicle Power) B101
