Pinpoint Tests TA: Clutch Pedal Position (CPP) Switch: Introduction
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2022 Ford F-550 Super Duty, 2022 Ford F-450 Super Duty, 2022 Ford F-350 Super Duty, 2022 Ford F-250 Super Duty, and 2021 Ford F-550 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
This pinpoint test is intended to diagnose the following:
- CPP sensor
- harness circuits: CPP, CPP1, CPP2, CPP-BT, GND, SIGRTN, and VREF
- PCM (12A650)
| Pin | Circuit |
|---|---|
| 1 | CPP2 (Clutch Pedal Position 2) |
| 3 | CPP1 (Clutch Pedal Position 1) |
| 4 | SIGRTN (Signal Return) |
| 2 | VREF (Reference Voltage) |

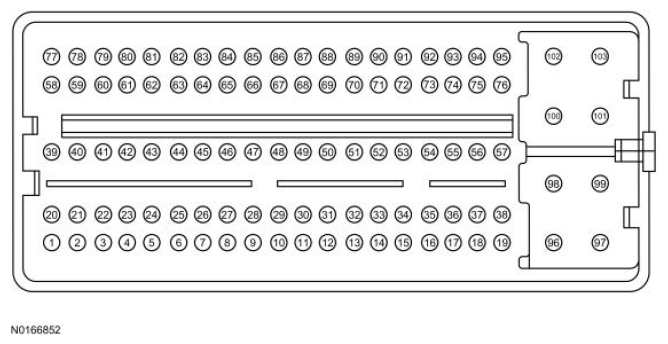

| Pin | Circuit |
|---|---|
| 9 | CPP2 (Clutch Pedal Position 2) |
| 10 | CPP1 (Clutch Pedal Position 1) |
