Exhaust Gas Recirculation (EGR) Cooler - Transit Connect
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2022 Ford F-550 Super Duty, 2022 Ford F-450 Super Duty, 2022 Ford F-350 Super Duty, 2022 Ford F-250 Super Duty, and 2021 Ford F-550 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
The EGR cooler is located in the rear of the cylinder block.

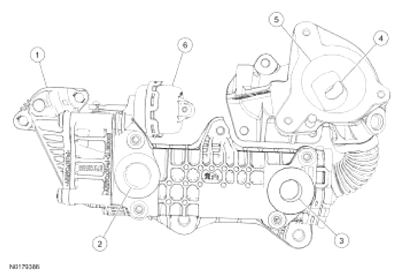

| Item | Number | Description |
|---|---|---|
| 1 | - | Exhaust Gas Inlet From The Exhaust Manifold |
| 2 | - | Engine Coolant Return |
| 3 | - | Engine Coolant Supply |
| 4 | - | Exhaust Gas Outlet From The EGR Cooler |
| 5 | - | Air Inlet From Charge Air Cooler |
| 6 | - | EGR Cooler Bypass Valve Actuator |
EGR Cooler - All Others
The EGR cooler is located above the right hand valve cover.
