1.5L ECOSPORT: Notes

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2021 Lincoln Navigator, 2021 Lincoln Nautilus, 2021 Lincoln Corsair, 2021 Lincoln Aviator, and 2021 Ford Transit-350 HD. However, it is still accessible from the selected car via links, so may be relevant.

198 Pin PCM Automatic Transmission

Fig 1: 1.5L EcoSport PCM Connector (198 Pin PCM Automatic Transmission)
G07431621Courtesy of FORD MOTOR CO.

112 Pin PCM Manual Transmission

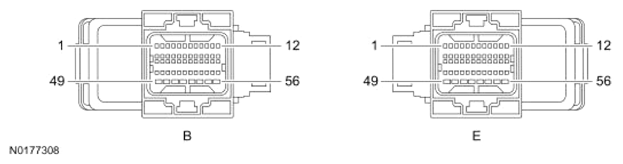

Fig 2: 1.5L EcoSport PCM Connector (112 Pin PCM Manual Transmission)
G13711425Courtesy of FORD MOTOR CO.
