Intake Air System (F-150)
WARNING: This page is about a different car, the 2020 Ford F-550 Super Duty, 2020 Ford F-450 Super Duty, 2020 Ford F-350 Super Duty, 2020 Ford F-250 Super Duty, and 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

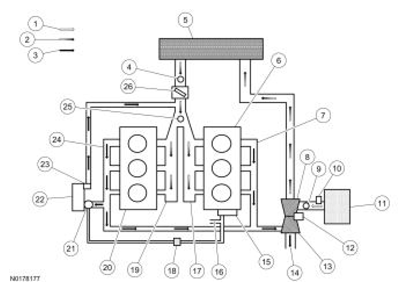

| Item | Number | Description |
|---|---|---|
| 1 | - | Intake Air |
| 2 | - | Compressed Air |
| 3 | - | Exhaust Air |
| 4 | - | Charge Air Cooler Temperature (CACT) Sensor |
| 5 | - | Charge Air Cooler (CAC) |
| 6 | - | Cylinder Head Bank 1 |
| 7 | - | Exhaust Manifold Bank 1 |
| 8 | - | Turbocharger Intake Compressor |
| 9 | - | Positive Crankcase Ventilation Heated Fitting (PCVHF) |
| 10 | - | Mass Airflow/Intake Air Temperature (MAF/IAT) Sensor |
| 11 | - | Air Filter |
| 12 | - | Variable Geometry Turbocharger Control (VGTC) |
| 13 | - | Turbocharger Exhaust Turbine |
| 14 | - | Outlet To Exhaust System |
| 15 | - | Vacuum Pump |
| 16 | - | Outlet To Vacuum Reservoir |
| 17 | - | Intake Manifold Bank 1 |
| 18 | - | Exhaust Gas Recirculation (EGR) Cooler Bypass Valve Solenoid |
| 19 | - | Intake Manifold Bank 2 |
| 20 | - | Cylinder Head Bank 2 |
| 21 | - | Exhaust Gas Recirculation (EGR) Cooler Bypass Valve Actuator |
| 22 | - | Exhaust Gas Recirculation (EGR) Cooler |
| 23 | - | Exhaust Gas Recirculation (EGR) Valve |
| 24 | - | Exhaust Manifold Bank 2 |
| 25 | - | Manifold Absolute Pressure (MAP) Sensor |
