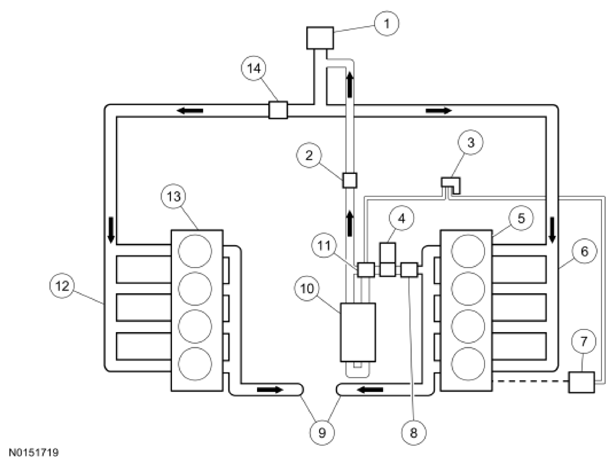

Typical EGR System (All Others)
WARNING: This page is about a different car, the 2020 Ford F-550 Super Duty, 2020 Ford F-450 Super Duty, 2020 Ford F-350 Super Duty, 2020 Ford F-250 Super Duty, and 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Number | Description |
|---|---|---|
| 1 | - | Intake Throttle Actuator |
| 2 | - | Exhaust Gas Recirculation Temperature Bank 1, Sensor 2 (EGRT12) |
| 3 | - | EGR Cooler Bypass Solenoid |
| 4 | - | EGR Valve |
| 5 | - | Right Cylinder Bank |
| 6 | - | Right Intake Manifold And Cylinder Head |
| 7 | - | Vacuum Pump |
| 8 | - | Exhaust Gas Recirculation Temperature Bank 1, Sensor 1 (EGRT11) |
| 9 | - | Exhaust Flow To The Turbocharger |
| 10 | - | EGR Cooler |
| 11 | - | EGR Cooler Bypass Valve |
| 12 | - | Left Intake Manifold And Cylinder Head |
| 13 | - | Left Cylinder Bank |
