Typical SCR System (All Others)

WARNING: This page is about a different car, the 2020 Ford F-550 Super Duty, 2020 Ford F-450 Super Duty, 2020 Ford F-350 Super Duty, 2020 Ford F-250 Super Duty, and 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

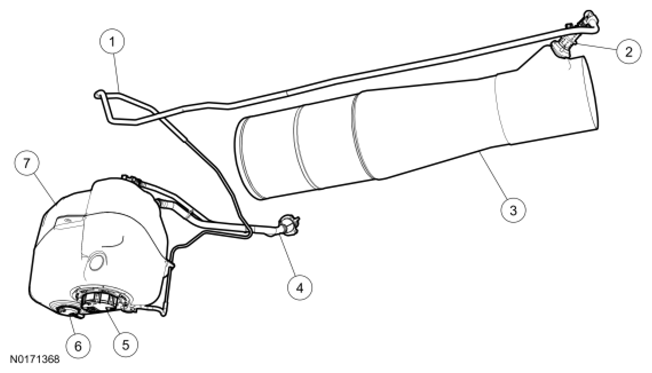

G11852729Courtesy of FORD MOTOR CO.
Item Number Description
1 - Reductant Pressure Line
2 - Reductant Injector
3 - SCR Catalyst
4 - Reductant Tank Filler Hose
5 - Reductant Pump Assembly
6 - Reductant Level Sensor
7 mdash Reductant Tank
