High Pressure Fuel Injection Pump - Transit

WARNING: This page is about a different car, the 2020 Ford F-550 Super Duty, 2020 Ford F-450 Super Duty, 2020 Ford F-350 Super Duty, 2020 Ford F-250 Super Duty, and 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

The high pressure fuel injection pump is chain driven with the camshafts and crankshaft and is located at the front left hand side of the engine near the cylinder head. It increases the fuel pressure from approximately 414 kPa (70 psi) up to 200 MPa (29, 007 psi) and delivers it to the fuel rails.

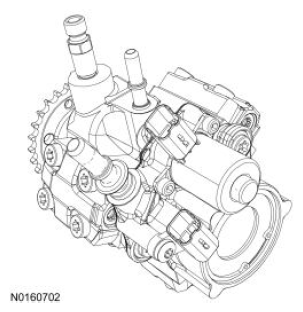

G10769072Courtesy of FORD MOTOR CO.
