Fuel Conditioning Module (F-650/F-750)
WARNING: This page is about a different car, the 2020 Ford F-550 Super Duty, 2020 Ford F-450 Super Duty, 2020 Ford F-350 Super Duty, 2020 Ford F-250 Super Duty, and 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

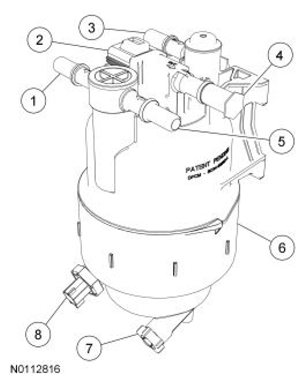

| Item | Number | Description |
|---|---|---|
| 1 | - | Fuel Return Line To The Fuel Tank |
| 2 | - | Electric Fuel Pump Electrical Connector |
| 3 | - | Fuel Supply Line From The Fuel Tank |
| 4 | - | Fuel Supply Line To The Secondary Fuel Filter |
| 5 | - | Fuel Return Line From The Secondary Fuel Filter |
| 6 | - | Fuel Filter Cover |
| 7 | - | Fuel Drain Valve |
| 8 | - | WIF Sensor Electrical Connector |
