Exhaust Gas Recirculation (EGR) Cooler - Transit Connect
WARNING: This page is about a different car, the 2020 Ford F-550 Super Duty, 2020 Ford F-450 Super Duty, 2020 Ford F-350 Super Duty, 2020 Ford F-250 Super Duty, and 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

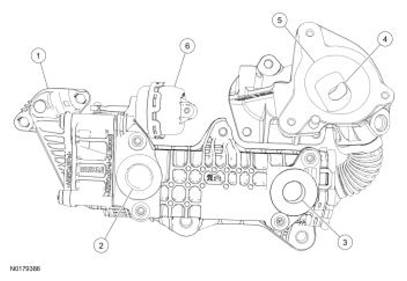

The EGR cooler is located in the rear of the cylinder block.
| Item | Number | Description |
|---|---|---|
| 1 | - | Exhaust Gas Inlet From The Exhaust Manifold |
| 2 | - | Engine Coolant Return |
| 3 | - | Engine Coolant Supply |
| 4 | - | Exhaust Gas Outlet From The EGR Cooler |
| 5 | - | Air Inlet From Charge Air Cooler |
| 6 | - | EGR Cooler Bypass Valve Actuator |
