EGR Cooler (F-150)
WARNING: This page is about a different car, the 2020 Ford F-550 Super Duty, 2020 Ford F-450 Super Duty, 2020 Ford F-350 Super Duty, 2020 Ford F-250 Super Duty, and 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR CO.
|

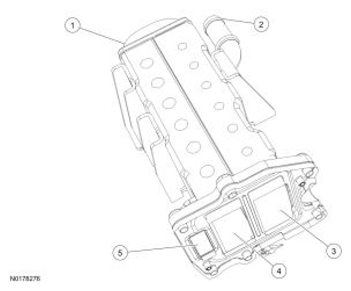

| Item |
Number |
Description |
| 1 |
- |
EGR Cooler Assembly |
| 2 |
- |
Cooling System Coolant Return From The EGR Cooler |
| 3 |
- |
Exhaust Gas Outlet From The EGR Cooler To The EGR Valve |
| 4 |
- |
Exhaust Gas Inlet From The Exhaust Manifold To The EGR Cooler |
| 5 |
- |
Cooling System Coolant Supply To The EGR Cooler |
