Engine Oil Pressure and Temperature Sensor - F-Series Super Duty

WARNING: This page is about a different car, the 2020 Ford F-550 Super Duty, 2020 Ford F-450 Super Duty, 2020 Ford F-350 Super Duty, 2020 Ford F-250 Super Duty, and 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

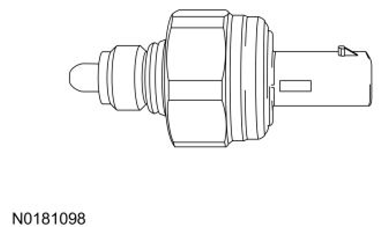

F-Series Super Duty is equipped with a sensor that monitors oil pressure and oil temperature. The EOT sensor is located at the rear of the engine on the oil filter adapter.

G13373205Courtesy of FORD MOTOR CO.
