Differential Carrier: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
All vehicles
- Remove the differential housing cover. Refer to: Differential Housing Cover .
- Remove the axle shafts. Refer to: Axle Shaft .
-

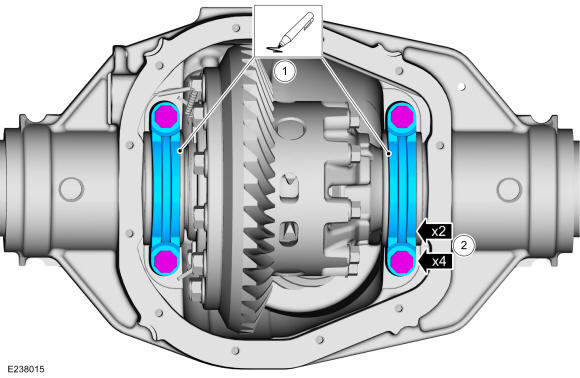

NOTE: The differential bearing caps and differential bearing cap bolts need to be installed in the same location as removed.
Remove the differential bearing cap bolts and differential bearing caps.
Vehicle equipped with ELD (Electronic Locking Differential)

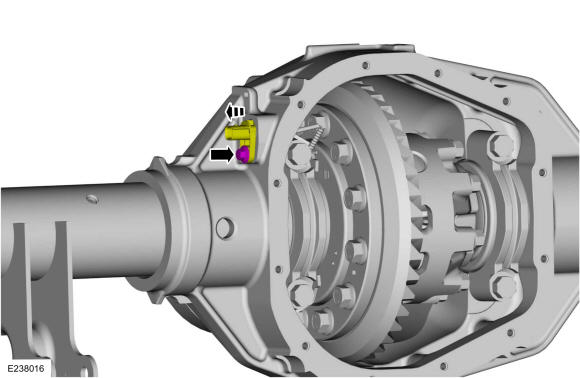

- Remove the ELD adaptor bolt and pull the ELD connector adaptor out of the axle assembly housing.
- Disconnect the ELD coil electrical connector and remove the ELD connector adapter.
All vehicles

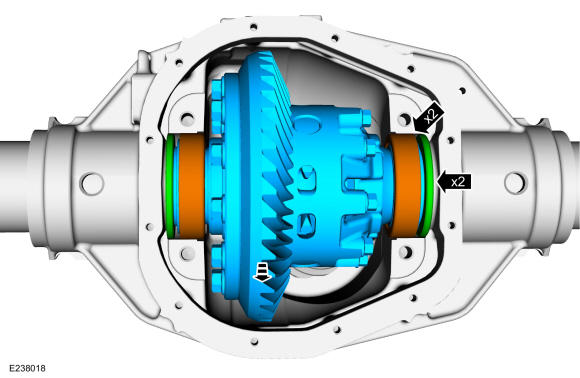

- Remove the differential carrier, differential carrier bearing cups and the differential shims.
