Differential Carrier: Assembly

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles equipped with a 1 piece case

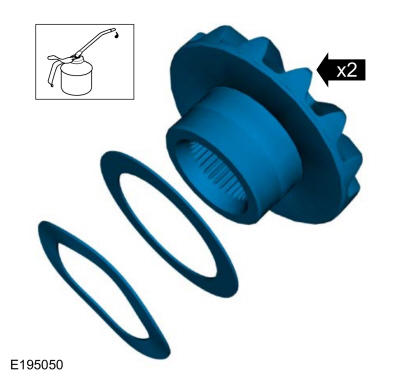

NOTE: Lubricate the differential side gear thrust washers, if equipped wave washers and the side gear journals with axle lubricant.

Position the differential side gear thrust washers and if equipped, wave washers on the differential side gears.

Material: Motorcraft ® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)

Courtesy of FORD MOTOR COMPANY

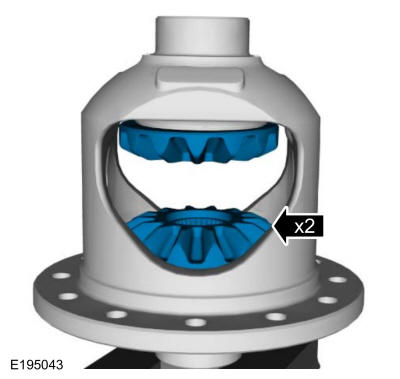

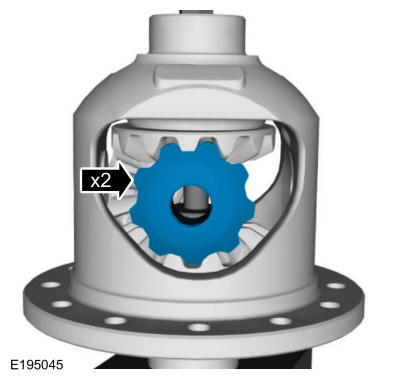

Position the differential side gears.

Courtesy of FORD MOTOR COMPANY
NOTE: Lubricate both sides of the differential pinion gear thrust washers with axle lubricant.

NOTE: Make sure the differential pinion gears are 180 degrees apart so they will align correctly with the pinion shaft bore.

Position the differential pinion gears and differential pinion gear thrust washers in the window of the differential case so they mesh with the differential side gear teeth.

Material: Motorcraft ® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)

Courtesy of FORD MOTOR COMPANY

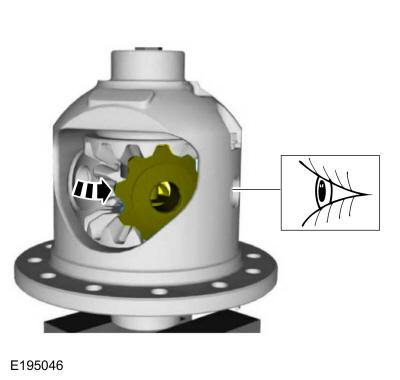

Rotate the differential pinion gears to align the differential pinion shaft bore.

Courtesy of FORD MOTOR COMPANY

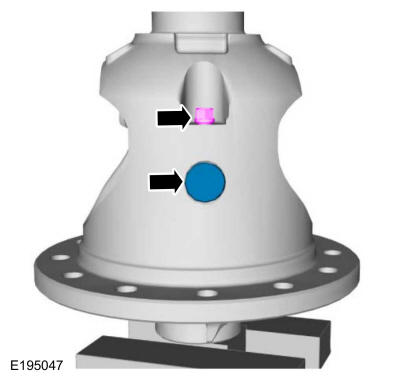

Insert the differential pinion shaft, and install a new differential pinion shaft lock bolt.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

Vehicles equipped with a 2 piece case

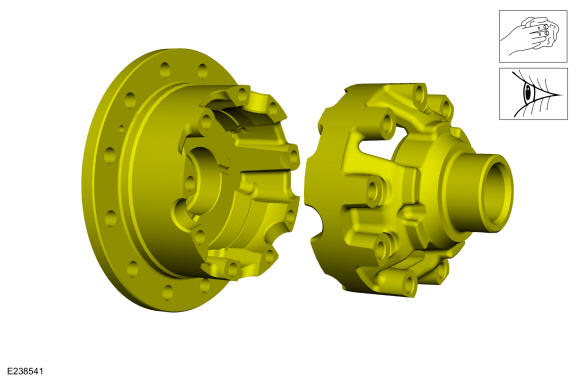

Clean and inspect the differential case.

Courtesy of FORD MOTOR COMPANY

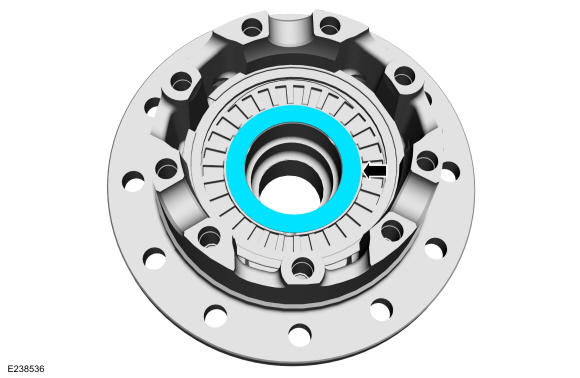

Install the LH side gear shim.

Courtesy of FORD MOTOR COMPANY
Lubricate and install the LH side gear.
Material: Motorcraft ® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)

Courtesy of FORD MOTOR COMPANY

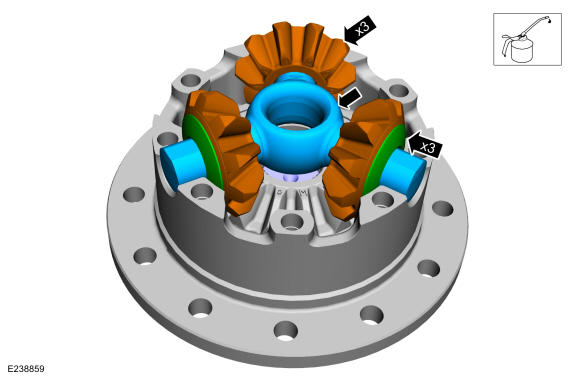

Lubricate and install the differential pinion shaft, pinion gears and pinion gear washers.
Material: Motorcraft ® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)

Courtesy of FORD MOTOR COMPANY

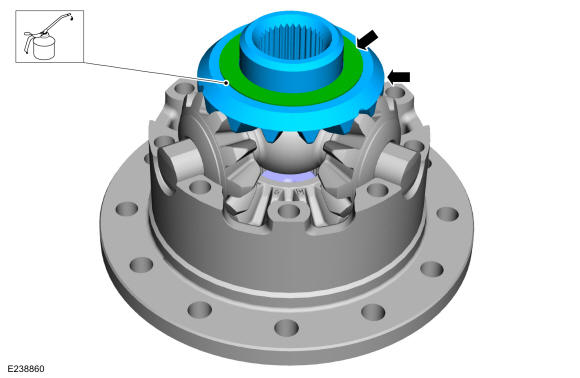

Lubricate and install the RH side gear and side gear shim.
Material: Motorcraft ® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)

Courtesy of FORD MOTOR COMPANY
Install the carrier case.
1. Install the carrier case.
2. Line up the index mark.
Courtesy of FORD MOTOR COMPANY

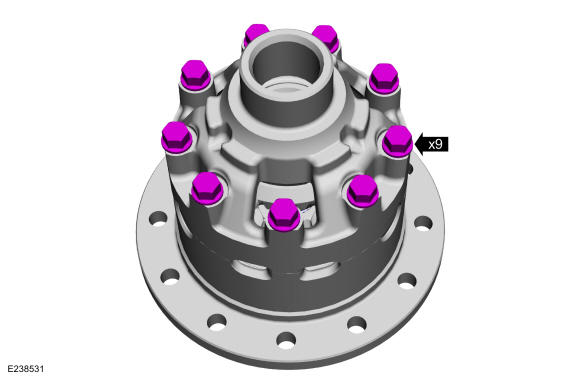

Install the differential carrier case bolts.
Torque:

Stage 1: 46 lb.ft (63 Nm)

Stage 2: 90 °

Courtesy of FORD MOTOR COMPANY

All vehicles

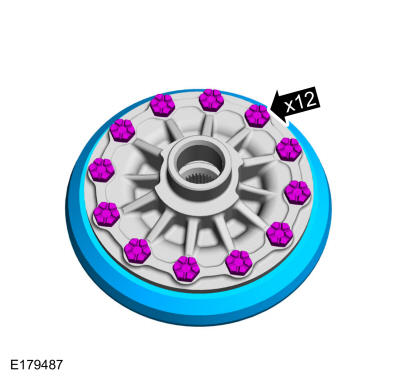

NOTE: Tighten the ring gear bolts in a cross pattern.

Install the ring gear and the new ring gear bolts.

Torque:

Stage 1: 46 lb.ft (63 Nm)

Stage 2: 60 °

Courtesy of FORD MOTOR COMPANY
Using the general equipment, install the new differential bearings. Use Special Service Tool: 205-D044 (D81T-4221-A) Installer, Differential Carrier Bearing.

Courtesy of FORD MOTOR COMPANY
Install the differential carrier. Refer to: Differential Carrier .
