Differential Carrier - Vehicles With: Electronic Locking Differential (ELD): Disassembly
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the differential carrier. Refer to: Differential Carrier .
- Remove and discard the differential carrier bearings. Use Special Service Tool: 205-430 Collets, Differential Carrier Bearing., 205-431 Retaining Ring, Differential Carrier Bearing., 205-432 Step Plate, Differential Carrier Bearing., 308-052 (T77J-7025-B) Remover/Installer, Bearing Tube., 308-092 (T84T-7025-B) Removal Screw, Bearing Tube.

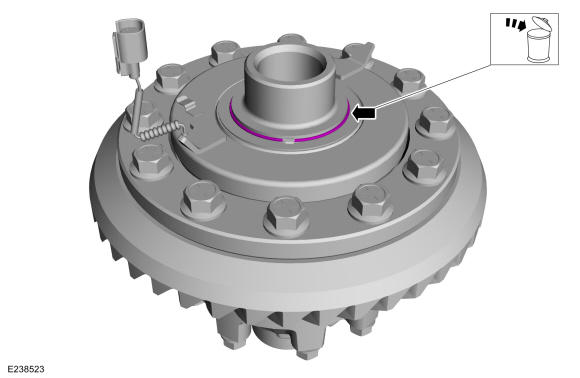

- Remove and discard the ELD coil retaining ring.
- Remove the ELD coil retaining ring washer.
- Remove the ELD coil.

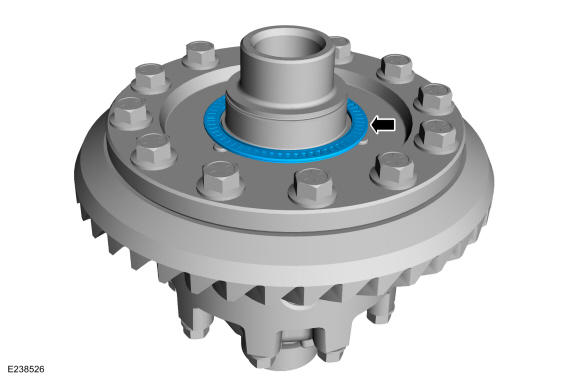

- Remove the ELD coil thrust bearing.
- Remove the ELD coil thrust plate.

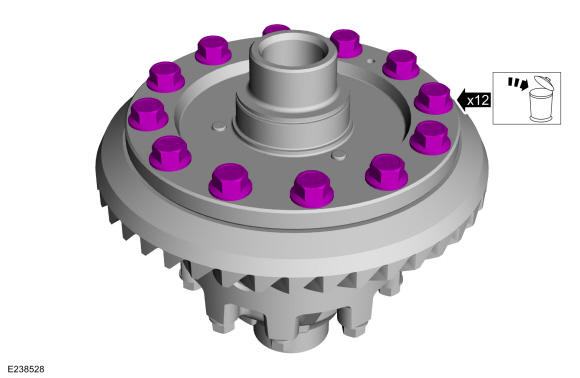

- Remove and discard the ring gear bolts.

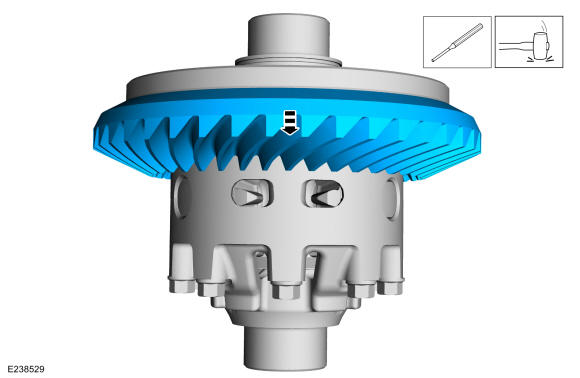

- Using the general equipment, remove the ring gear. Use the General Equipment: Punch Use the General Equipment: Copper Hammer
- Using the special tool, mount the differential carrier on a vise. Use Special Service Tool: 205-447 Preload Gauge, Differential Clutch. Use the General Equipment: Vise
- Remove the differential carrier case bolts.
- Separate the carrier case.
- Index mark the carrier case halves.
- Separate the carrier case halves
- Remove the RH side gear and side gear shim.
- Remove the differential pinion shaft, pinion gears and pinion gear washers.
- Remove the LH side gear.
- Remove the LH side gear shim.

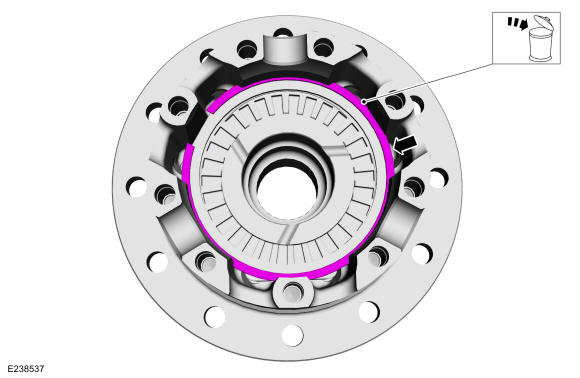

- Remove the ELD cam ring retaining circlip.
- Remove the ELD cam ring washer.
- Remove the ELD cam ring wavy washer.
- Remove the ELD cam ring.
