Brake Booster: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the brake master cylinder. Refer to: Brake Master Cylinder .
Detach the clips and lower the steering column opening trim cover.

Courtesy of FORD MOTOR COMPANY
NOTE: Vehicles with push-button start and adjustable pedals shown in illustration.

Disconnect the electrical connectors and detach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY
- Remove the bolts and the steering column opening trim panel reinforcement.
  Torque: 22 lb.in (2.5 Nm)
- Remove the tabs and remove the steering column opening trim panel.
Courtesy of FORD MOTOR COMPANY
NOTE: Do not service the brake pedal without first removing the stoplamp switch. Remove this switch with the brake pedal in the at-rest position. Attempting to remove the switch when the plunger is extended (during pedal apply) results in damage to the switch.

Remove the stoplamp switch. Refer to: Stoplamp Switch .

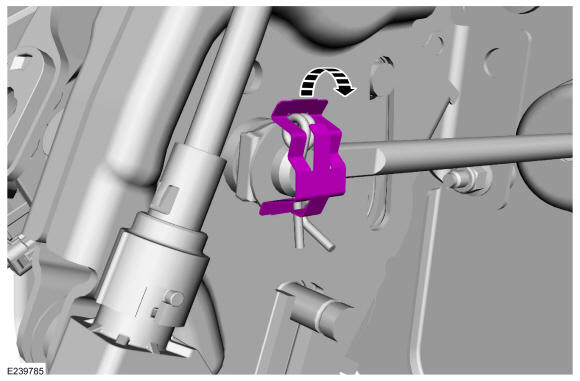

Remove the clip.

Courtesy of FORD MOTOR COMPANY

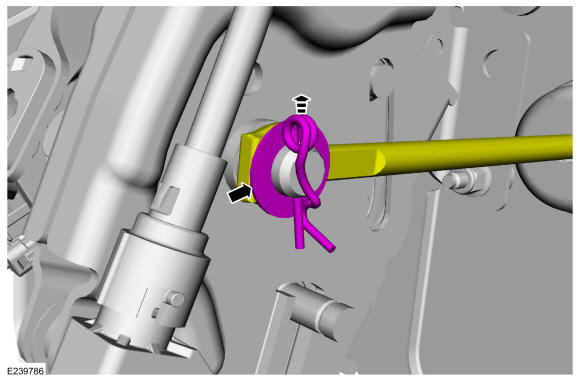

Remove the pin, washer and separate the brake booster rod from the brake pedal.

Courtesy of FORD MOTOR COMPANY
NOTE: Tighten the brake booster nuts in a cross-pattern.

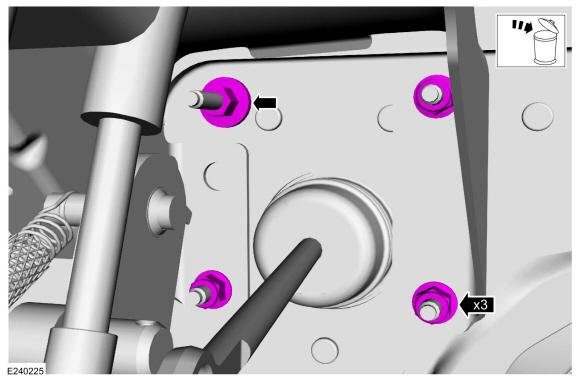

Remove and discard the brake booster nuts.

Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

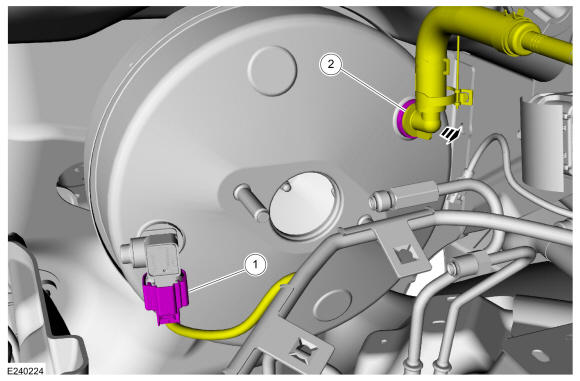

1. Disconnect the brake vacuum sensor electrical connector.
2. Detach the elbow fitting and vacuum tube.
Courtesy of FORD MOTOR COMPANY

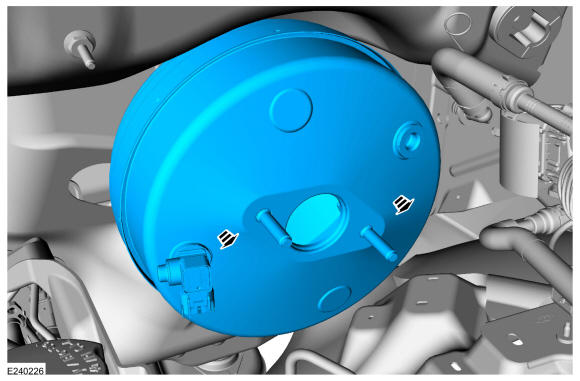

Remove the brake booster.

Courtesy of FORD MOTOR COMPANY
