Exhaust System (F-150)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2019 Ford Transit-350 HD, 2019 Ford Transit-350, 2019 Ford Transit-250, 2019 Ford Transit-150, and 2019 Ford F-550 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

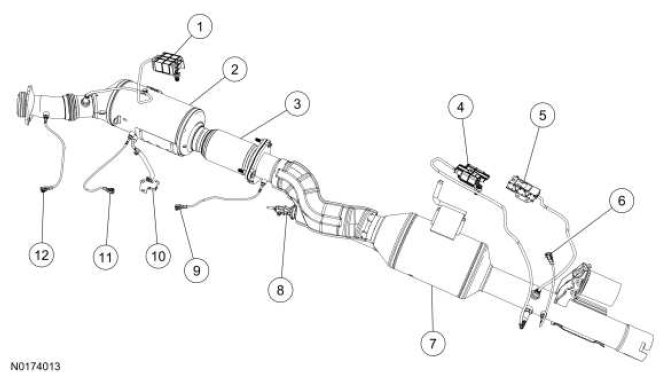

| Item | Number | Description |
|---|---|---|
| 1 | - | Nitrogen Oxides Bank 1, Sensor 1 (NOx11) |
| 2 | - | Oxidation Catalytic Converter (OC) |
| 3 | - | Diesel Particulate Filter |
| 4 | - | Particulate Matter Bank 1, Sensor 1 (PM11) |
| 5 | - | Nitrogen Oxides Bank 1, Sensor 2 (NOx12) |
| 6 | - | Exhaust Gas Temperature Bank 1, Sensor 4 (EGT14) |
| 7 | - | Selective Catalytic Reduction (SCR) Catalyst |
| 8 | - | Reductant Injector |
| 9 | - | Exhaust Gas Temperature Bank 1, Sensor 3 (EGT13) |
| 10 | - | Exhaust Pressure Sensor |
| 11 | - | Exhaust Gas Temperature Bank 1, Sensor 2 (EGT12) |
| 12 | mdash | Exhaust Gas Temperature Bank 1, Sensor 1 (EGT11) |
