Exhaust Gas Recirculation (EGR) Cooler - Transit Connect
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2019 Ford Transit-350 HD, 2019 Ford Transit-350, 2019 Ford Transit-250, 2019 Ford Transit-150, and 2019 Ford F-550 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

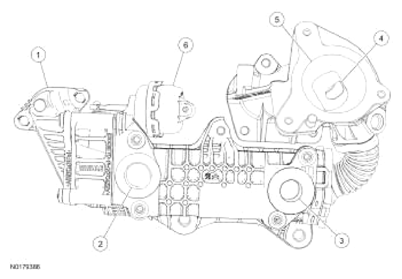

The EGR cooler is located in the rear of the cylinder block.
| Item | Number | Description |
|---|---|---|
| 1 | - | Exhaust Gas Inlet From The Exhaust Manifold |
| 2 | - | Engine Coolant Return |
| 3 | - | Engine Coolant Supply |
| 4 | - | Exhaust Gas Outlet From The EGR Cooler |
| 5 | - | Air Inlet From Charge Air Cooler |
| 6 | - | EGR Cooler Bypass Valve Actuator |
