EGR Cooler (F-150)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2019 Ford Transit-350 HD, 2019 Ford Transit-350, 2019 Ford Transit-250, 2019 Ford Transit-150, and 2019 Ford F-550 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of FORD MOTOR CO.

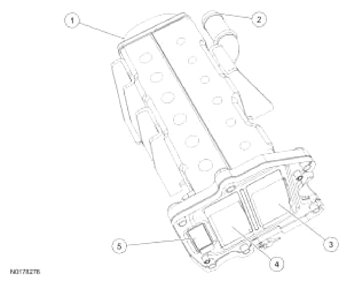

Item	Number	Description
1	-	EGR Cooler Assembly
2	-	Cooling System Coolant Return From The EGR Cooler
3	-	Exhaust Gas Outlet From The EGR Cooler To The EGR Valve
4	-	Exhaust Gas Inlet From The Exhaust Manifold To The EGR Cooler
5	-	Cooling System Coolant Supply To The EGR Cooler
