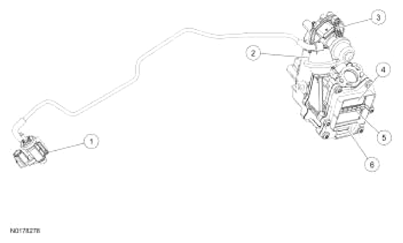

Typical EGR Cooler Bypass Valve (F-150)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2019 Ford Transit-350 HD, 2019 Ford Transit-350, 2019 Ford Transit-250, 2019 Ford Transit-150, and 2019 Ford F-550 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
G13343496Courtesy of FORD MOTOR CO.
Item Number Description
1 - EGR Cooler Bypass Valve Actuator Solenoid
2 - EGR Cooler Bypass Valve Actuator
3 - EGR Valve
4 - Exhaust Gas Outlet From The EGR Cooler To The EGR Valve
5 - Exhaust Gas Inlet From The Exhaust Manifold To The EGR Cooler
6 - Cooling System Coolant Supply To The EGR Cooler
