Pinpoint Tests W: Exhaust Gas Recirculation (EGR) System: Introduction
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2019 Ford Transit-350 HD, 2019 Ford Transit-350, 2019 Ford Transit-250, 2019 Ford Transit-150, and 2019 Ford F-550 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.
This pinpoint test is intended to diagnose the following:
- harness circuits: VREF, EGRVCH, EGRVCL, EGR and SIGRTN
- EGR valve (9D475)
- PCM (12A650)
Harness Side
| Circuit | Pin |
|---|---|
| VREF (Reference Voltage) | 5 |
| EGR (Exhaust Gas Recirculation) | 3 |
| EGRVCL (Exhaust Gas Recirculation Valve Control Low) | 6 |
| EGRVCH (Exhaust Gas Recirculation Valve Control High) | 2 |
| SIGRTN (Signal Return) | 1 |

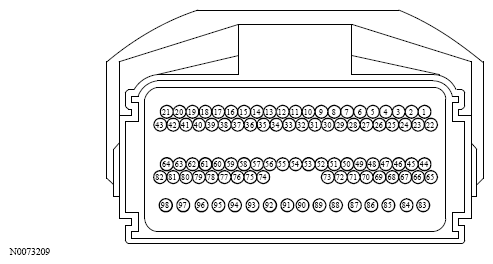

Harness Side
| Circuit | Pin |
|---|---|
| EGR (Exhaust Gas Recirculation) | 61 |
| EGRVCL (Exhaust Gas Recirculation Valve Control Low) | 82 |
| EGRVCH (Exhaust Gas Recirculation Valve Control High) | 81 |
