Rear Brake Inner Flexible Hose: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Typical brake inner flexible hoses shown in illustration.

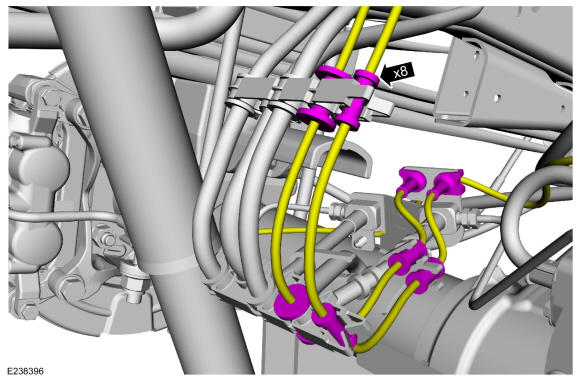

Detach the wheel speed sensor wiring harness retainers and position aside.

Courtesy of FORD MOTOR COMPANY

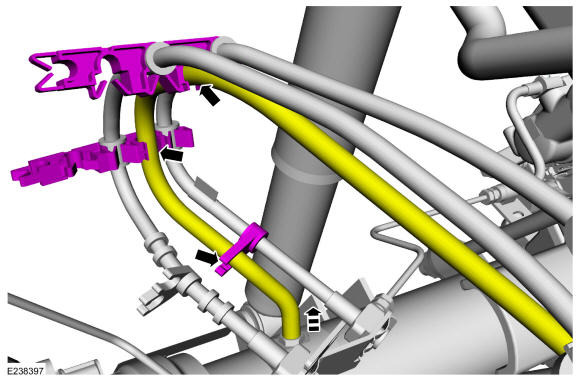

Disconnect the axle vent hose, detach the retainers and position the vent tube aside.

Courtesy of FORD MOTOR COMPANY

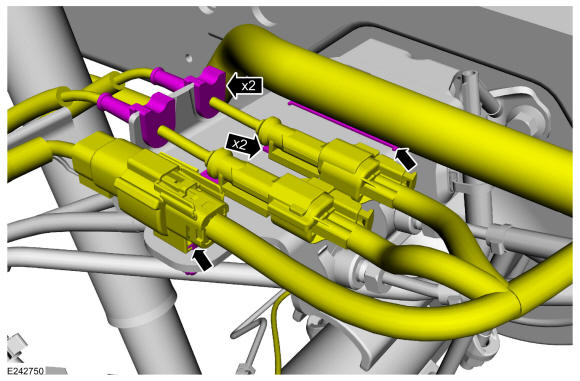

Detach the wiring harness retainers and position the wiring aside.

Courtesy of FORD MOTOR COMPANY

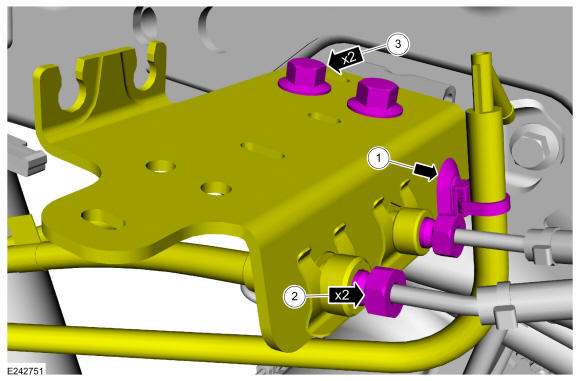

1. Detach the axle vent hose retainer.
2. Disconnect the brake tube fittings.
  Torque: 177 lb.in (20 Nm)
3. Remove the brake hose bracket bolts and position the bracket and brake hoses aside.
  Torque: 21 lb.ft (28 Nm)
Courtesy of FORD MOTOR COMPANY

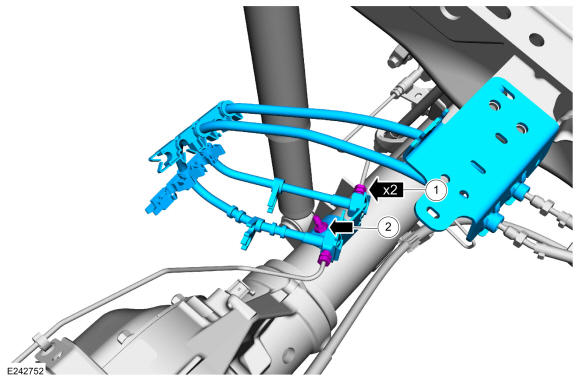

1. Disconnect the brake tube fittings.
  Torque: 177 lb.in (20 Nm)
2. Remove the axle vent and the brake inner flexible hose assembly.
  Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
