Rear Brake Disc: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
- Remove the wheel and tire. Refer to: Wheel and Tire - Vehicles With: Single Rear Wheels
. Refer to: Wheel and Tire - Vehicles With: Dual Rear Wheels
.
Vehicles with dual rear wheels (DRW)
-
NOTE: The brake disc is part of the wheel hub on dual rear wheel (DRW) applications.
Remove the wheel bearing and wheel hub. Refer to: Wheel Hub - Full Floating Axle - Vehicles With: Dana M275/Dana M300.
Vehicles with single rear wheels (SRW)
-
NOTE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.NOTE: Do not allow the brake caliper to hang from the brake hose or damage to the hose can occur.

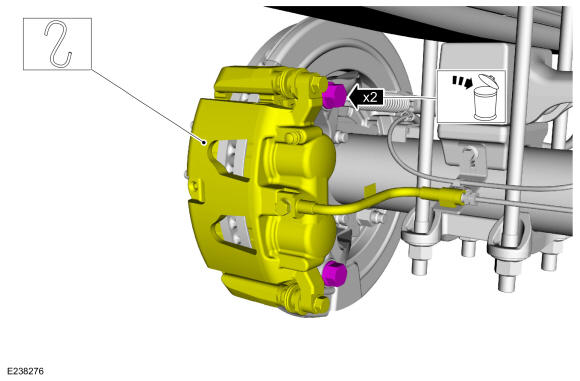

Remove the bolts and position the brake caliper and anchor plate aside. Discard the bolts.
Torque
: 203 lb.ft (275 Nm)

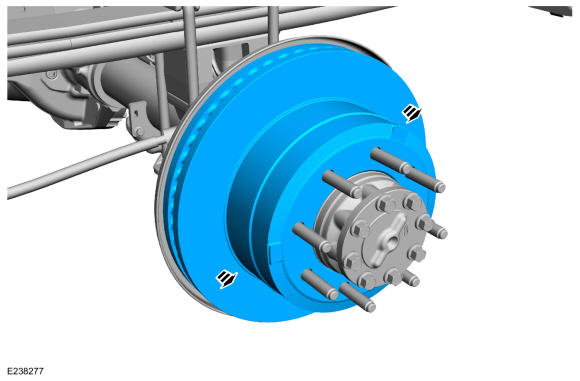

- Remove the brake disc.

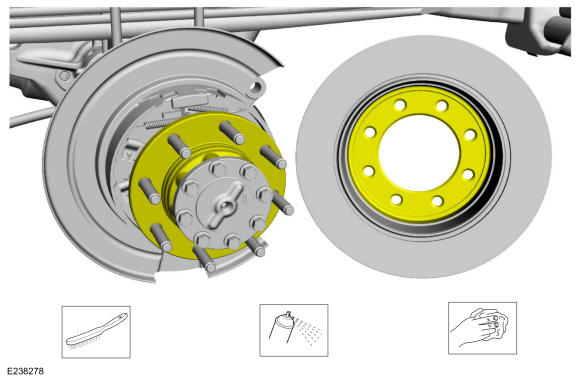

- Clean the brake disc mating surfaces using a wire brush and the specified material.
Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
