Rear Brake Caliper Support Bracket: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
- Remove the parking brake shoes. Refer to: Parking Brake Shoes
.
Vehicles with single rear wheels (SRW)
- Remove the wheel hub. Refer to: Wheel Hub
- Vehicles With: Ford 10.5 Inch Ring Gear Refer to: Wheel Hub
- Vehicles With: Ford 10.5 Inch Ring Gear
All vehicles

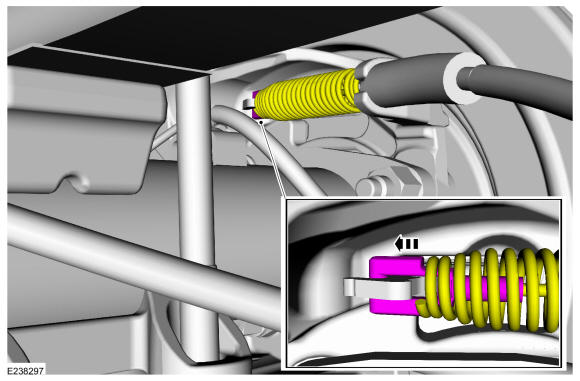

- Disconnect the parking brake cable from the parking brake shoe actuator lever.

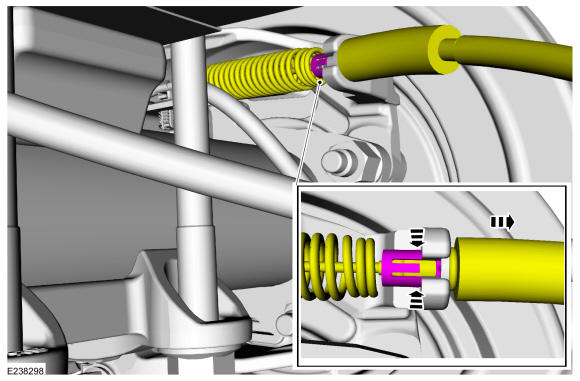

- Disconnect the parking brake cable from the support bracket.
F250, F350

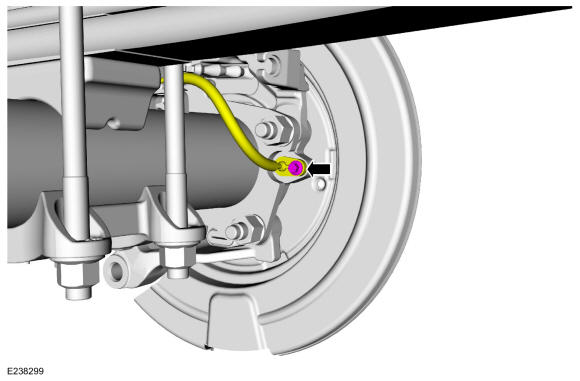

- Remove the bolt and position the wheel speed sensor aside.
Torque: 177 lb.in (20 Nm)

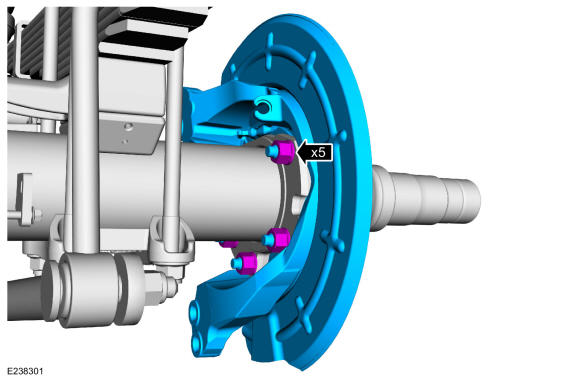

- Remove the nuts and the brake caliper support bracket.
Torque: 101 lb.ft (137 Nm)
F450, F550

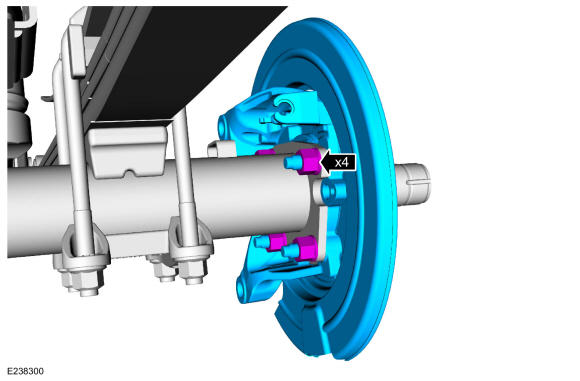

- Remove the nuts and the brake caliper support bracket.
Torque: 101 lb.ft (137 Nm)
