Rear Seatbelt Retractor: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH shown, RH similar.
SuperCab
- Remove the B-pillar trim panel. Refer to: B-Pillar Trim Panel - SuperCab
.
SuperCrew
- Remove the C-pillar trim panel. Refer to: C-Pillar Trim Panel
.
SuperCab and SuperCrew

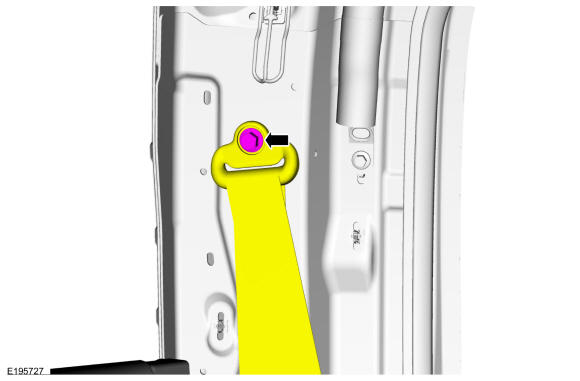

- Remove the bolt and position the safety belt aside.
Torque: 30 lb.ft (40 Nm)

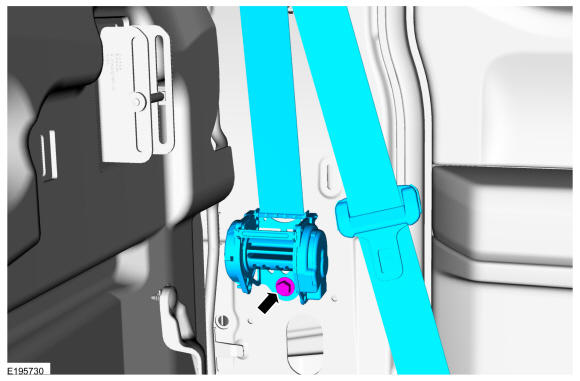

- Remove the bolt and the safety belt retractor.
Torque: 30 lb.ft (40 Nm)
